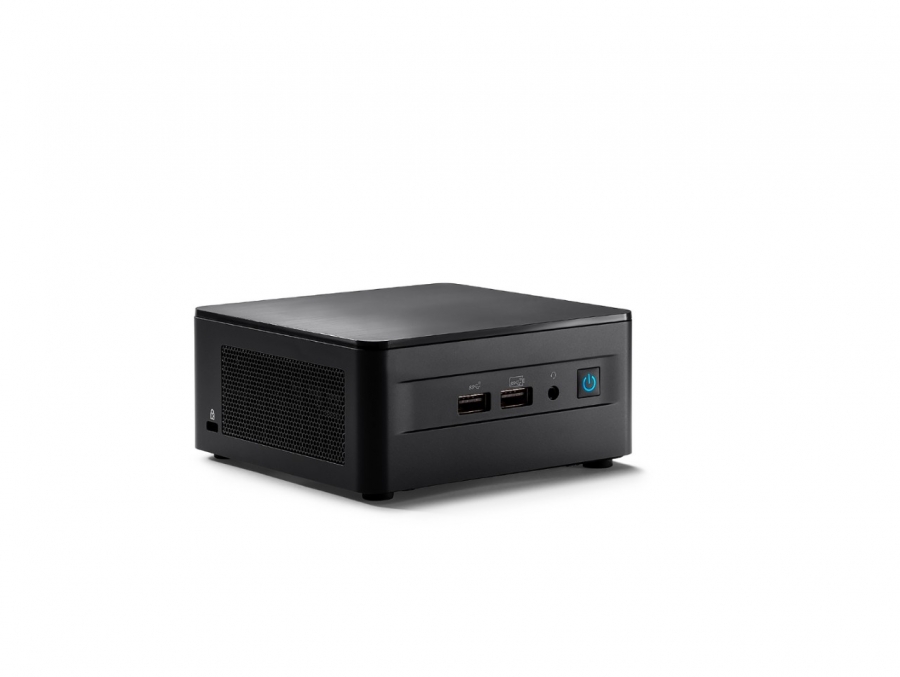

Intel NUC 12 NUC12WSHV7 Professional Kit

Manufacturer: Intel

Kods RNUC12WSHV70002

Condition: Jauns

Vairāk informācijas

Intel® Trusted Execution Technology Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.Intel® AES New Instructions Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.TPM Version TPM (Trusted Platform Module) is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption and hash functions.Intel® ME Firmware Version Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.Max Turbo Frequency Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.Intel vPro® Platform Eligibility The Intel vPro® platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.Intel® HD Audio Technology Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.Integrated Graphics Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.Intel® Optane™ Memory Supported Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.TPM Trusted Platform Module (TPM) is a component on the desktop board that is specifically designed to enhance platform security above-and-beyond the capabilities of today's software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages - operations when the keys are being used unencrypted in plain-text form.

Built-in processor	Y
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-1270P
Processor cores	12
Processor threads	16
Processor boost frequency	4.8 GHz
Processor cache	18 MB
Thermal Design Power (TDP)	35 W
CPU configuration (max)	1
Memory slots type	SO-DIMM
Number of memory slots	2
Number of DIMM slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	3200 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory voltage	1.2 V
ECC	N
Supported storage drive types	SSD
Storage drive sizes supported	M.2,2.5
SSD form factor	M.2
Storage drive interface	M.2, Serial ATA III
NVMe	Y
Number of storage drives supported	3
Card reader integrated	N
On-board graphics card	N
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
Maximum resolution	7680 x 4320 pixels
Number of displays supported	4
Built-in speaker(s)	N
Ethernet LAN	Y
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
LAN controller	Intel I225-LM
Bluetooth	Y
Bluetooth version	5.2
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.0b
DisplayPorts quantity	1
Combo headphone/mic port	Y
Serial port via internal header	N
M.2 card slot (wireless)	2230 (E-key) (E)
USB ports quantity	4
M.2 card slot (storage)	2280 NVMe (M); 2242 SATA (B)
Thunderbolt 4 ports quantity	2
DC-in jack	Y
PCI Express slots version	4.0
Chassis type	UCFF
Product colour	Black
Cooling type	Active
Product type	Mini PC barebone
On/off switch	Y
LED indicators	Y
Cable lock slot	Y
Cable lock slot type	Kensington
ARK ID	121632
Motherboard form factor	UCFF
Number of processors supported	1
BIOS type	EEPROM
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64
Linux operating systems supported	Y
Compatible operating systems	Windows 10 IoT Enterprise\|Linux
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
Intel® vPro™ Platform Eligibility	Y
Intel® High Definition Audio (Intel® HD Audio)	Y
Embedded options available	N
Intel® AES New Instructions (Intel® AES-NI)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
Intel Flex Memory Access	Y
Intel Trusted Execution Technology	Y
Execute Disable Bit	Y
Intel ME Firmware Version	16
Intel Stable Image Platform Program (SIPP)	Y
Intel® Optane™ Memory Ready	N
Intel Virtualization Technology (VT-x)	Y
Harmonized System (HS) code	8471500150
Power supply type	External AC adapter
Power supply	120 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Width	117 mm
Depth	112 mm
Height	54 mm
Power cord included	Y
Additional headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Number of SATA connectors	1
HDD size	2.5"
DC input voltage	12 - 20 V
Status	Launched
Launch date	Q3'22
