BAREBONE VIA Artigo A820 IPC ATG-A820-3D10A1 - NXP 1.0 GHz ARM Cortex-A9

VIA

11459

Jauns

The VIA ARTiGO A820 is an ultra-slim fanless enterprise IoT gateway system featuring robust networking connectivity options with dual Ethernet ports as well as optional high-speed wireless networking modules to enable flexible integration with the enterprise network and the cloud.
Specification:

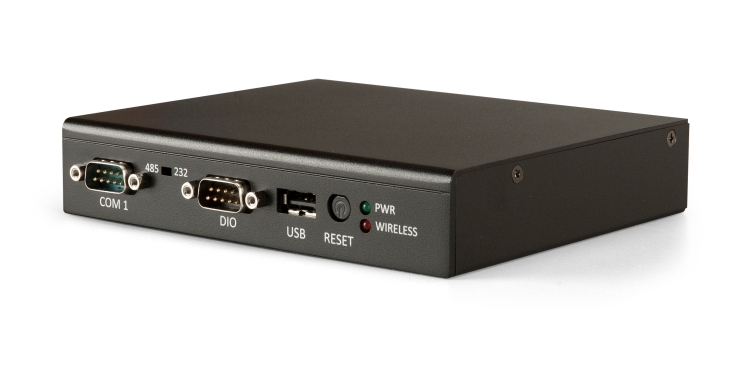

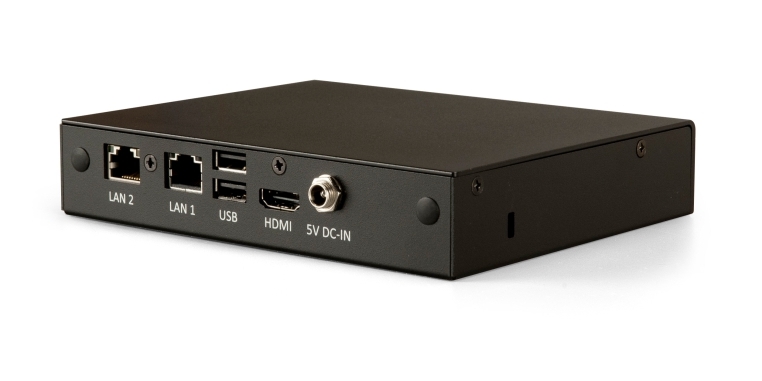

Powered by a 1.0GHz NXP i.MX 6DualLite ARM Cortex-A9 SoC, the VIA ARTiGO A820 features a high-performance 2D/3D graphics and video engine that supports Open® GL ES 2.0 hardware acceleration and comes with an on-board Micro SD card slot, 4GB eMMC Flash memory, and 1GB DDR3 SDRAM. Measuring just 150mm x 30mm x 125.5mm (W x H x D), the VIA ARTiGO A820 offers a rich array of I/O and display expansion options, including one HDMI port, one RS-232/485 COM port, one DIO port with support for 8-bit GPIO, three USB 2.0 ports, two Ethernet ports, and one miniPCIe slot. Optional Wi-Fi and 3G wireless modules are also available which can be supported through on-board USB pin-headers or the miniPCIe slot.

The ARTiGO A820 features an optimized Linux BSP (Kernel 3.14.28) supporting all key onboard hardware features to speed development, deployment and ease system management. A full set of software customization services that speed up time to market and minimize development costs is also available.

The ARTiGO A820 also includes Watchdog Timer (WDT) support for safeguarding against system crashes.
Featuring a high-performance SoC, rich network connectivity options, and extensive I/O options the VIA ARTiGO A820 provides the ideal IoT gateway system to manage the connection and control for a wide spectrum of automation applications.


Package content:
• A820
• AC to DC adapter
• Power cord
• Console cable
• Screw pack for miniPCIe card
• Rubber feet pack
