BAREBONE VIA VIPRO VP7910 1,0 GHz Resistive VP7910-R1D10A1

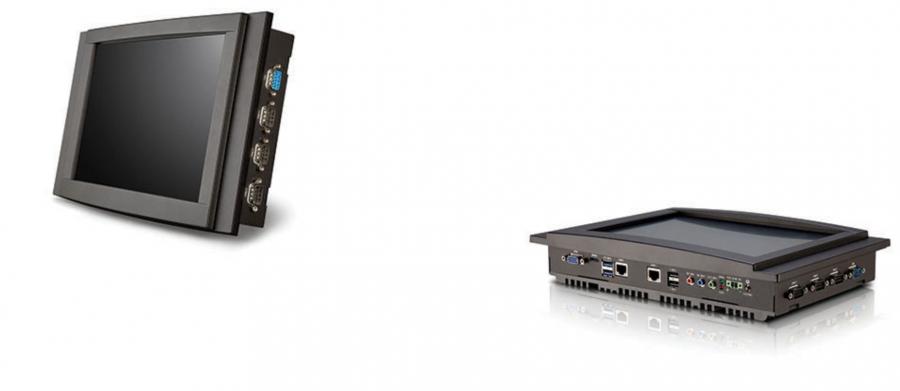

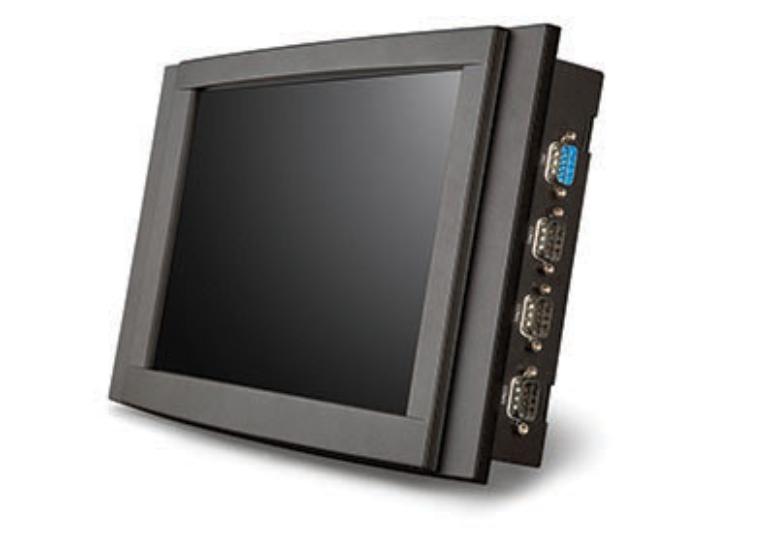

VIA VIPRO VP7910 Fanless Panel PC

The VIA VIPRO VP7910 is an embedded panel PC with a 10.4? TFT LCD resistive touch screen that is ideal for a wide variety of embedded, multimedia, and industrial HMI (Human Machine Interface) applications requiring low power consumption, fanless and noise-free operation, and multiple IO ports.

Hardware

Powered by a 1.0 GHz dual core VIA Eden® X2 E-Series processor and the VIA VX11H media system processor featuring an integrated VIA ChromotionHD™ 5.0 video processor with DirectX 11 support, the VIA VIPRO VP7910 delivers blistering multimedia performance in a highly-integrated panel PC form factor.

The system comes with a rich array of I/O features, including USB 3.0 connectivity, dual GLAN support as well as one HDMI and one VGA port that enable dual independent displays. It also has two MiniPCIe slots which offer dual SIM card support in order to reduce roaming charges for cross-border transportation applications, plus one mSATA socket and a 2.5? internal HDD drive bay for storage. A variety of mounting options are available for flexible installation.

Software

The VIA VIPRO VP7910 is fully compatible with Microsoft® Windows® 8, Windows® 7, Windows® Embedded 7, and popular Linux distributions. Customers can take advantage of VIA’s industry leading hardware and software support, including our software solution packs and the VIA Smart ETK (Embedded Tool Kit) to create customized designs with a quick time to market.

The VIA Smart ETK provides an application programming interface (API) that makes it easy for system developers using VIA Embedded platforms to control and monitor GPIO, Watchdog Timer, Hardware Management, Flash, LCD, and other functions.

Wake On LAN (WOL) and pre-boot execution environment (PXE) are also supported, allowing the creation of a host of remotely managed IoT devices for almost any environment.

Applications

With its highly-integrated yet easily expandable Panel PC form factor, the VIA VIPRO VP7910 provides an ultra-reliable all-on-one solution for a wide variety of applications, including factory automation systems, precision machinery, production process control, terminal information systems, entertainment management systems, and car park automation systems.
