BAREBONE VIA AMOS-3003 1D12A1

Manufacturer: VIA

Kods 11389

Condition: Jauns

Vairāk informācijas

Description:

Specification:
Processor: 1.2GHz NanoÂ® X2 E-Series dual-core CPU
Chipset: VIA VX11H Media System Processor
BIOS: AMI UEFI BIOS - 32Mbit SPI Flash Memory
Management:
ACPI 3.0 compliant, Wake-on LAN, keyboard power-on, timer power-on, system power management, AC power failure recovery, Watch Dog timer control
Memory socket: 1 DDR3 1333 SODIMM up to 8GB memory size
Graphics: Integrated VIA ChromeÂ® 640 DX11 3D/2D graphics with MPEG-2, WMV9 & H.264 video decoding accelerator
Display:
1 x VGA port supporting CRT resolutions up to 2048 x 1563 pixels
1 x HDMI port
Dual independent CRT + HDMI display at different resolutions, pixel depths, and refresh rates
Onboard LAN:
VIA VT6130 PCIe Gigabit Ethernet controller
Realtek RTL8111G PCIe Gigabit Ethernet controller
Supports Wake On LAN (WOL)
Supports Preboot Execution Environment (PXE)
11x5-pin header reserved to support VIA VNT9271 802.11n Wi-Fi USB module
Audio: VIA VT2021 High Definition Audio Codec
USB: 2 x USB 3.0 ports and 3 x USB 2.0 host ports
COM Ports:
Onboard Fintek super I/O F81865 controller
BIOS selectable of 5V/12V power selection for COM1~3
Supports 1 8-bit GPIO + 5V power source (4 GPI+4 GPO)

Expansion slot:
2 x Mini-PCIe slots (supports 2 SIM slots)
Supports optional Wi-Fi/3G modules
Supports 3 external antenna for Wi-Fi, 3G module, and GPS module

Storage:
1 x mSATA slot
1 x SATA port

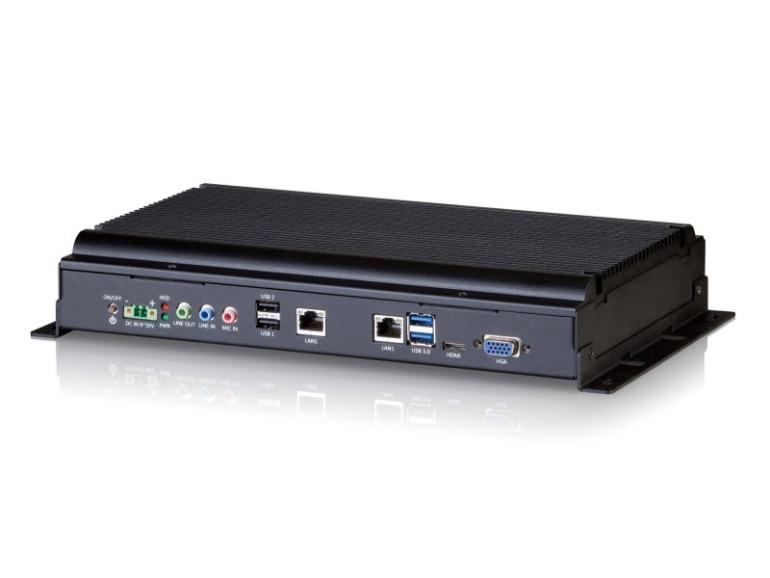

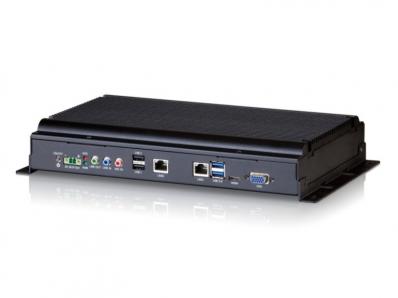

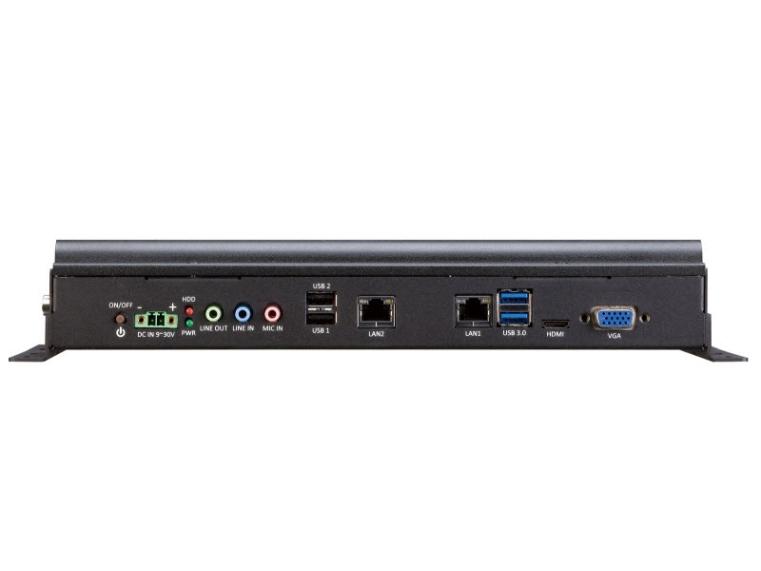

External Front I/O:
1 x HDMI type-C port
1 x VGA port
2 x RJ-45 Gigabit Ethernet ports
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x DC power input connector by 2-pole Phoenix connector
1 x Power on/off button
1 x Red colour LED for HDD activity
1 x Green colour LED for power status
3 x Line-out, Line-in and MIC-in jacks

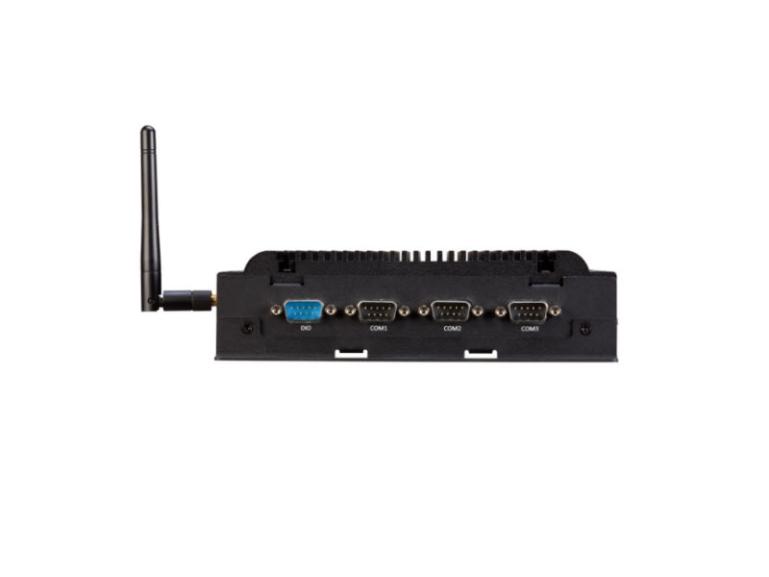

External Left Side I/O:
1 x x8-bit GPIO D-sub 9-pin connector
3 x RS-232/422/485 by D-sub 9-pin connectors

Operating System:
Windows 7, Windows Embedded Standard 7, and Linux supports VIA SMART ETK
Watch Dog Timer: System reset; programmable 1-255 sec
Power: 9 ~ 30V DC-in - Supports over voltage protection, over current protection, under voltage protection
Mechanical Construction:
Aluminum mixed with heavy-duty steel with heat pipe embedded
Aluminum top cover mixed with copper heat-pie
Mounting: Built-in wall mountable brackets on system chassis
Dimensions: 311mm (W) x 50.6mm (H) x 185mm (D) (with wall mountable brackets)
Weight: 3.5 kg (7.7 lb)
Operating Temperature: -10Â°C ~ 60Â°C
Storage Temperature: -20 Â°C ~ 70 Â°C
Operating Humidity:
10% ~ 90% @ 45Â°C (relative humidity; non-condensing)
Vibration Loading During Operation: With mSATA or 2.5" SSD: 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis
Shock During Operation:
With mSATA or 2.5" SSD: 50G, IEC 60068-2-27, half size, 11ms duration
Compliance: CE/FCC
