> >>ROLINE RS-232 to RS-422/485 Converter, Din Rail, self powered
ROLINE RS-232 to RS-422/485 Converter, Din Rail, self powered

ROLINE RS-232 to RS-422/485 Converter, Din Rail, self powered

ROLINE

12.02.1008

Jauns

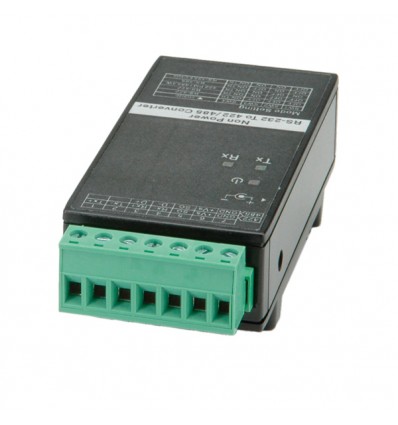

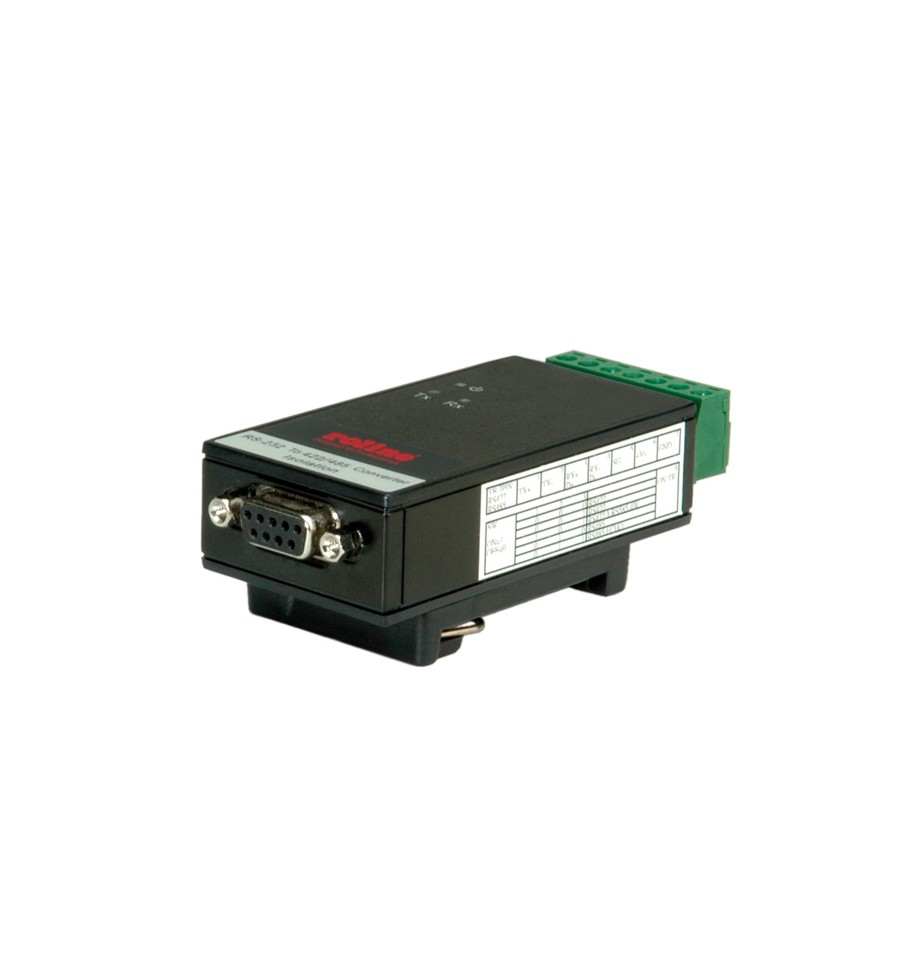

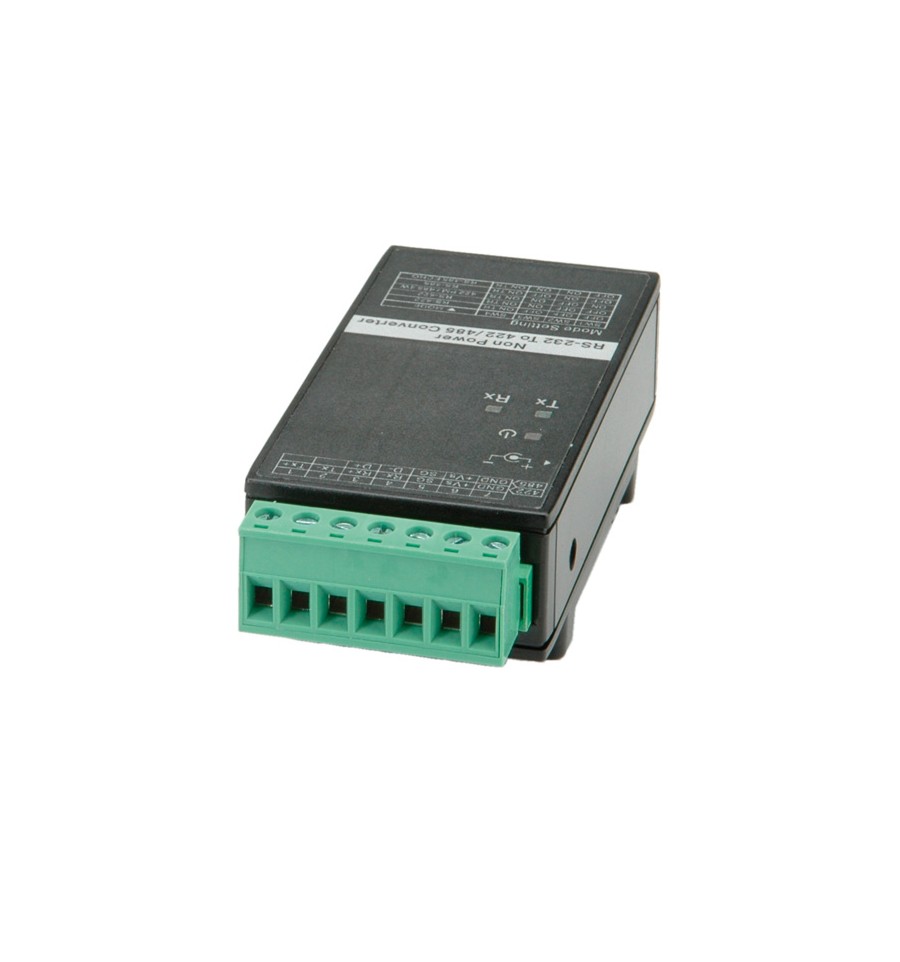

Converts RS-422 or RS-485 devices to a RS-232 port
  • Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
  • High speed baud rate up to 921.6 Kbit/s
  • Data transfer rate of up to 115.2 Kbit/s at 1.2 km
  • Built-in Terminator 120 Ohm by DIP switch settings
  • Signals for RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Signals for RS-422/4-wire:...

More details

Converts RS-422 or RS-485 devices to a RS-232 port
  • Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
  • High speed baud rate up to 921.6 Kbit/s
  • Data transfer rate of up to 115.2 Kbit/s at 1.2 km
  • Built-in Terminator 120 Ohm by DIP switch settings
  • Signals for RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Signals for RS-422/4-wire: Tx+, Tx-, Rx+, Rx-, GND
  • Signals for RS-485/2-wire: D+, D-, GND
  • Protection: 15 KV ESD protection for all signals, 600 W surge protection for RS-422/485 signals

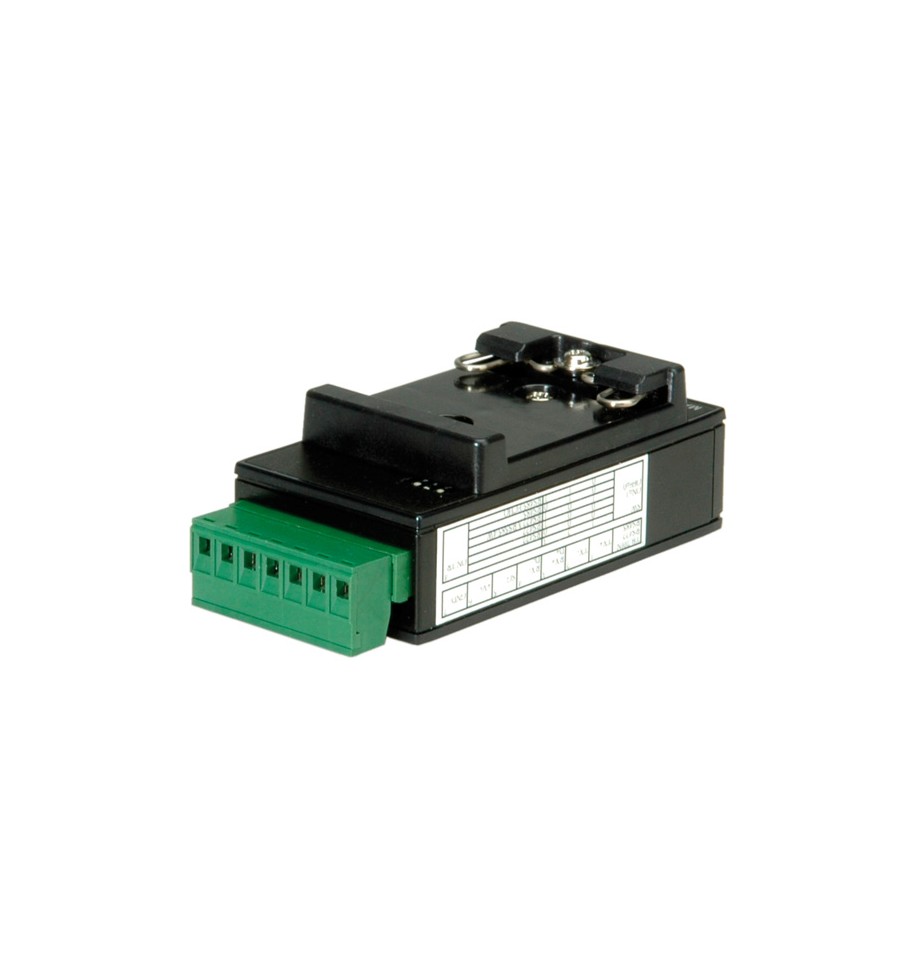

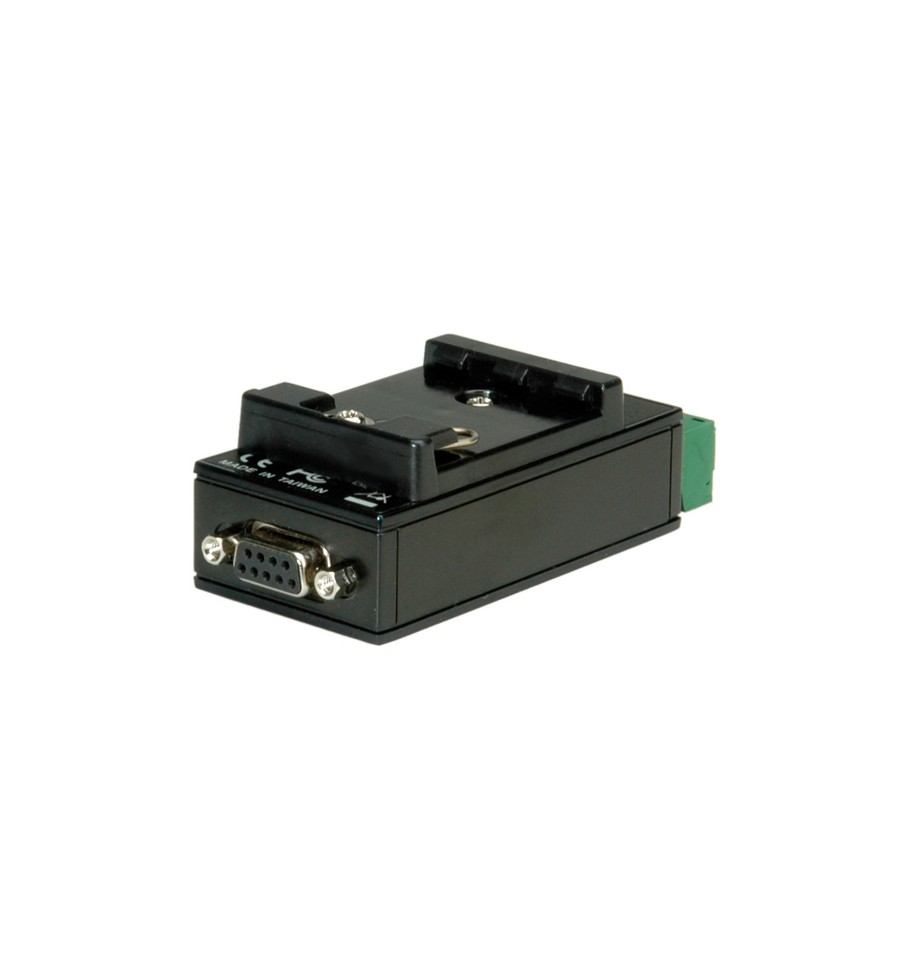

  • For DIN rail mounting (DIN rail kit included) or desktop use
  • Hardware solution, no software required
  • RS-232 port powered technology, optional: Power input 10~30 VDC

  • Contents: Converter, manual
Area of applicationExternal
Colourblack
Content of deliveryConverter, manual
Conversion directionRS422/RS485- RS232
Conveyance goodNo
ManufacturerROLINE
Manufacturer Item No.12.02.1008
Product groupAdapters, Terminators, Converters
Side A connection (PC)RS232
Side B connection (Peripherals)Terminal block
