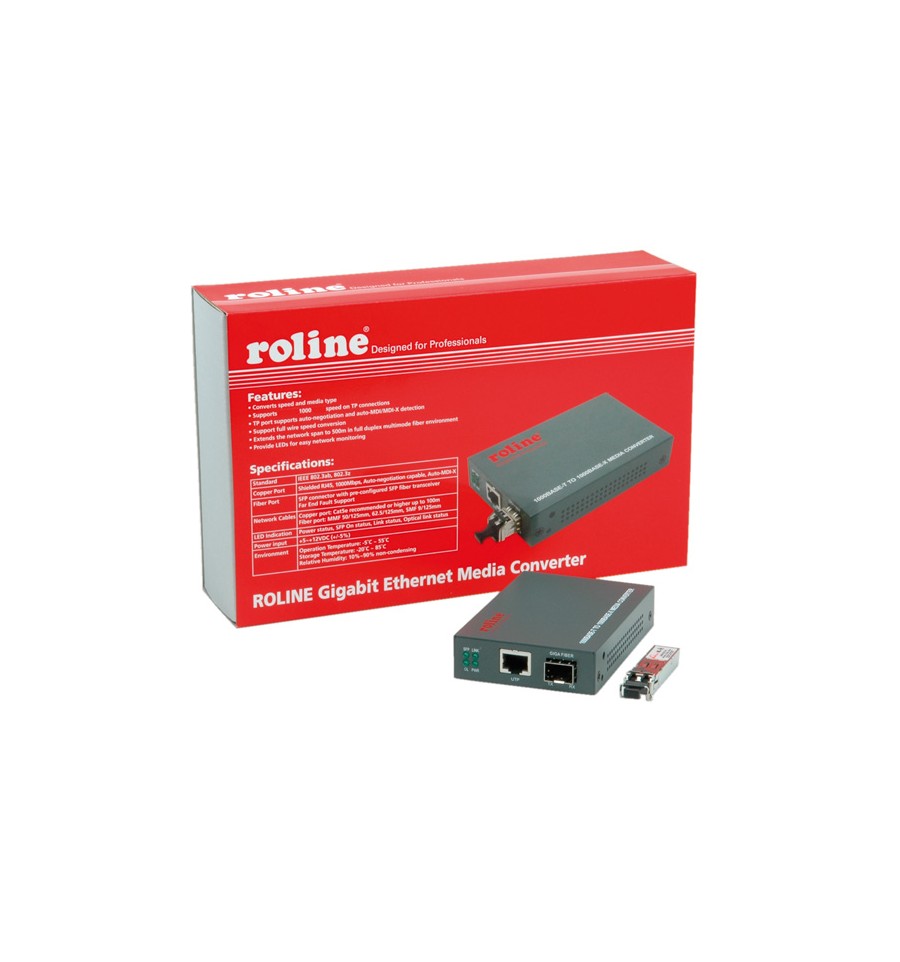

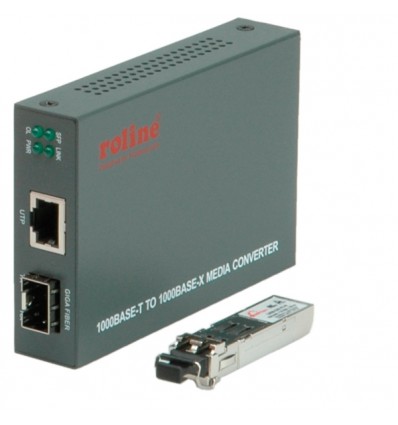

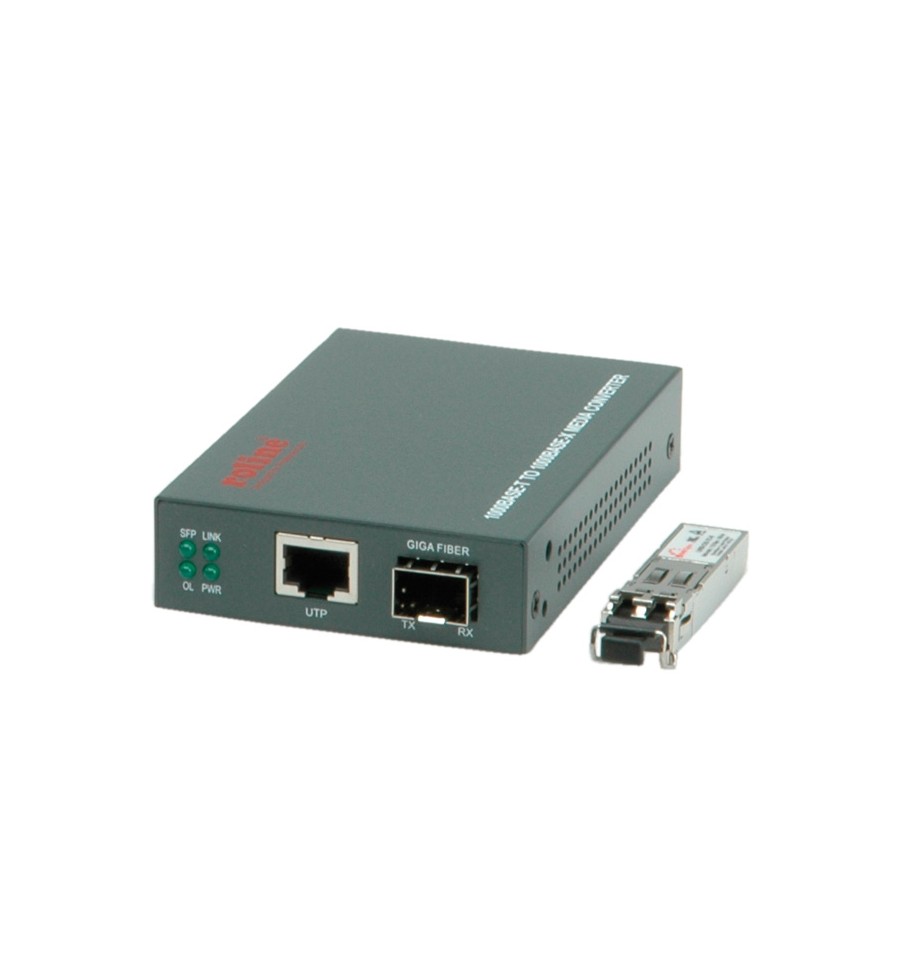

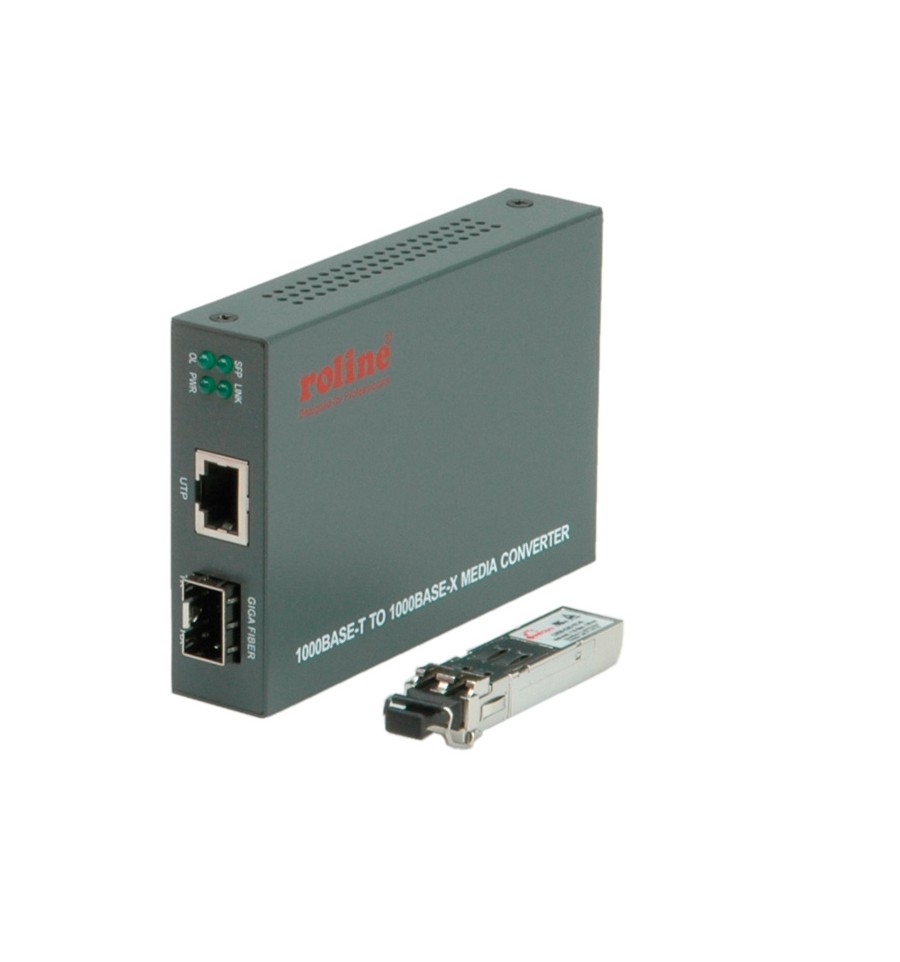

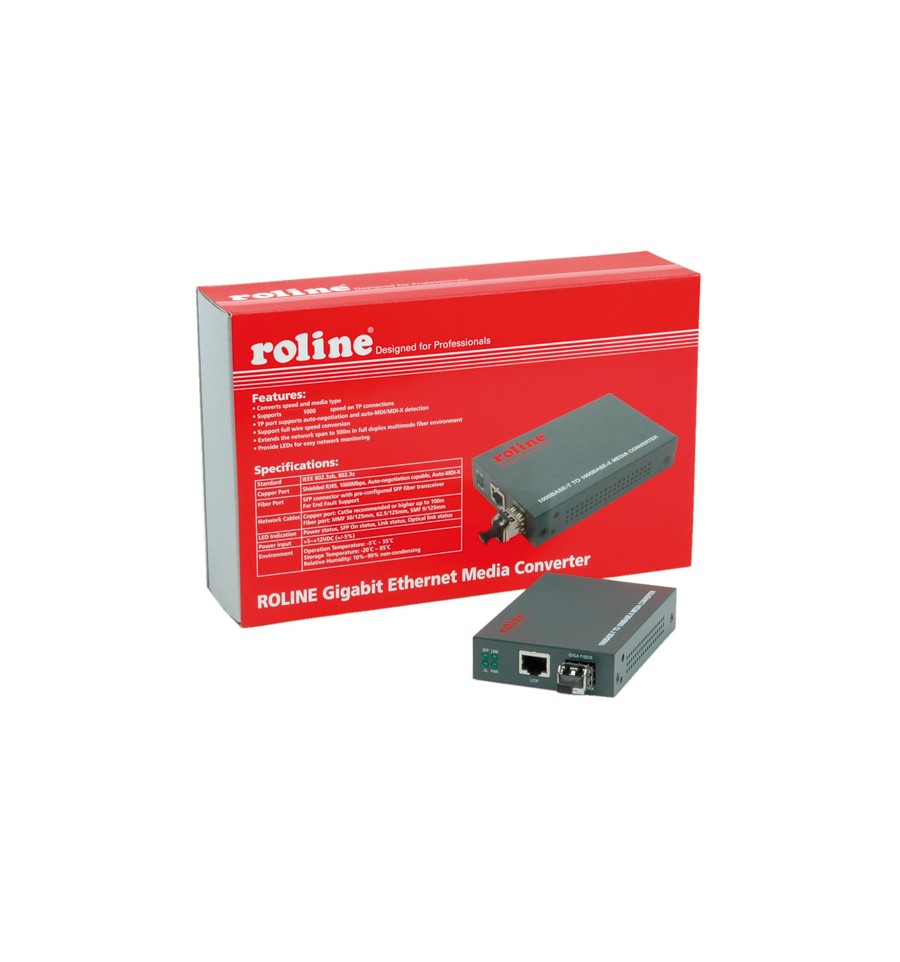

> >>ROLINE Gigabit Converter, incl. GBIC, RJ-45 to LC
ROLINE Gigabit Converter, incl. GBIC, RJ-45 to LC
Previous Next

ROLINE Gigabit Converter, incl. GBIC, RJ-45 to LC

ROLINE

21.13.1069

Jauns

  • These converters are the ideal connectivity solution for networks using a combination of STP and fiber optic types
  • Provides media conversion from STP to multimode LC media type
  • RC-1000SX/LC: The maximum cable length for fiber is 500m by using a 50/125µm fiber

  • Supports transparent conversion of any packet types with no packet length limitation

    More details

  • These converters are the ideal connectivity solution for networks using a combination of STP and fiber optic types
  • Provides media conversion from STP to multimode LC media type
  • RC-1000SX/LC: The maximum cable length for fiber is 500m by using a 50/125µm fiber

  • Supports transparent conversion of any packet types with no packet length limitation
  • Supports auto-negotiation with link partners
  • Provides link pass through between copper and fiber link
  • Provides SFP on fiber port for mounting variety of fiber options
  • Supports optional DIN-Rail installation
  • Supports center chassis installation to achieve the advantages of central power, optional power redundancy and management
  • Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di and CWDM applications
  • Compliant with IEEE 802.3ab, 802.3z
  • Network ports: 1x shielded RJ-45, 1000Mbps, Auto-negotiation capable, Auto-MDI/MDI-X; 1x SFP connector with pre-configured SFP fiber transceiver
  • Power: Operating voltage range : +5 ~ +12V DC (+/-5%), consumption: 2W max. @7.5V
  • Dimensions (WxDxH): 108 x 72.5 x 23 mm
  • Contents: Converter, power supply, ROLINE Mini-GBIC Modul SX/LC, Multimode (21.14.3500), manual
Converts toRJ-45/LC
Conveyance goodNo
Ethernet fibre standard1000Base-SX
FibreMultimode
Fibre Ports (Mbps)1000
ManufacturerROLINE
Manufacturer Item No.21.13.1069
Max. range 50 µm fibre500m
Product groupNetwork converters
Quantity of fibre LC ports1
Quantity of RJ45 ports1
RJ-45 Port (Mbps/s)1000
