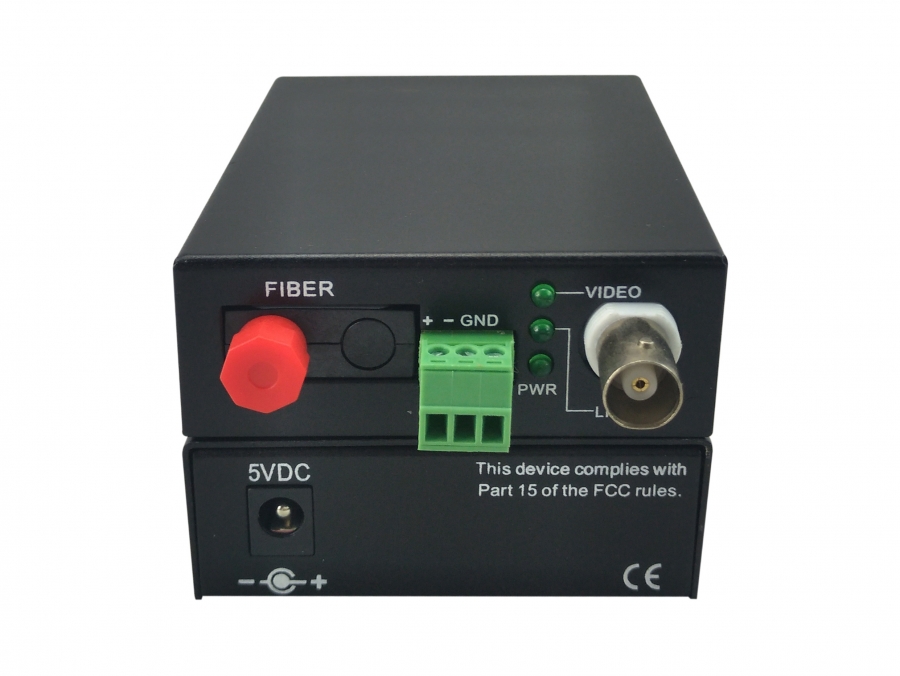

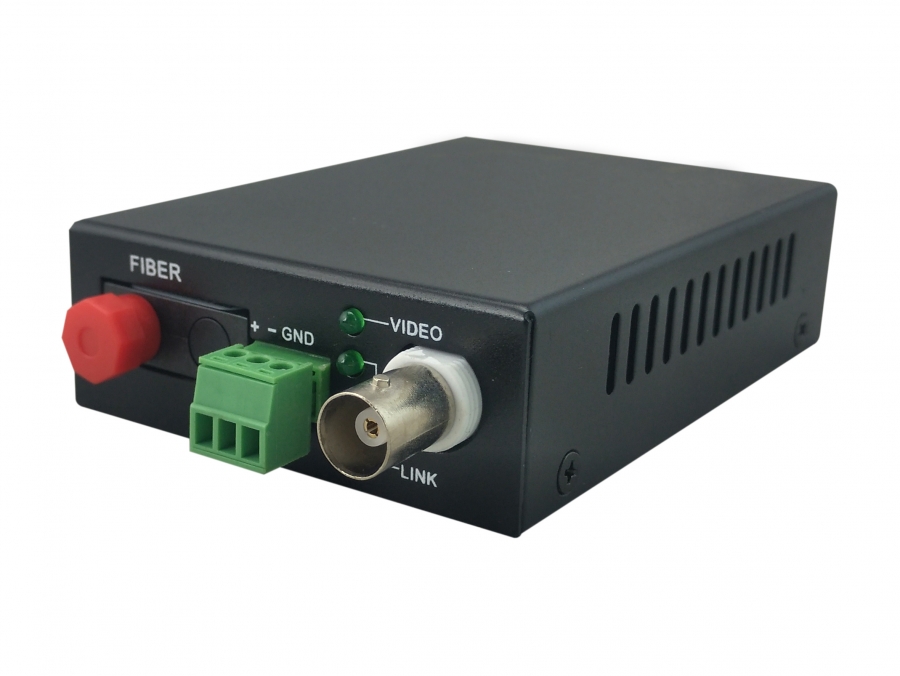

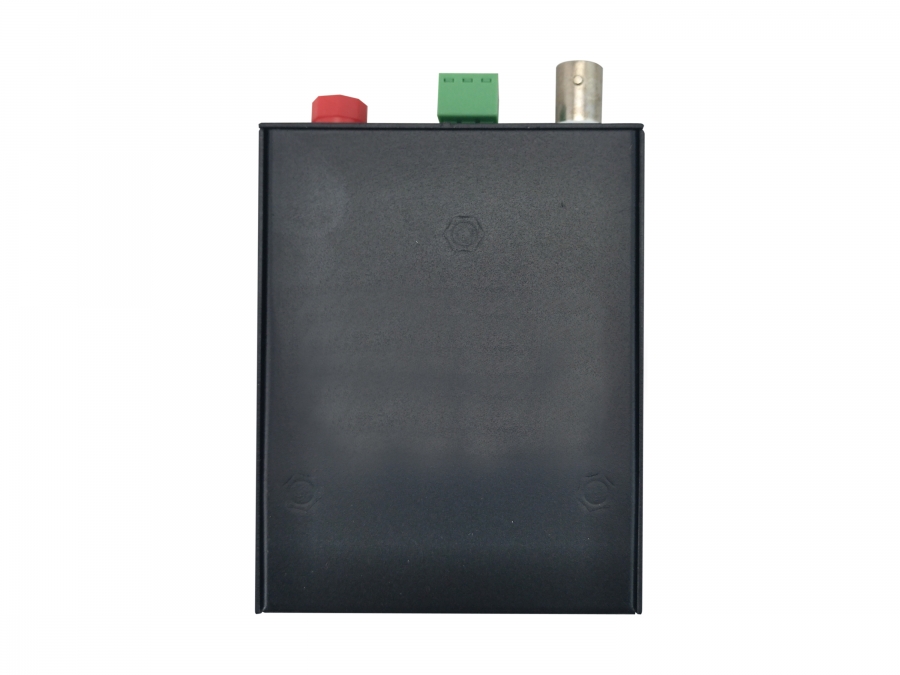

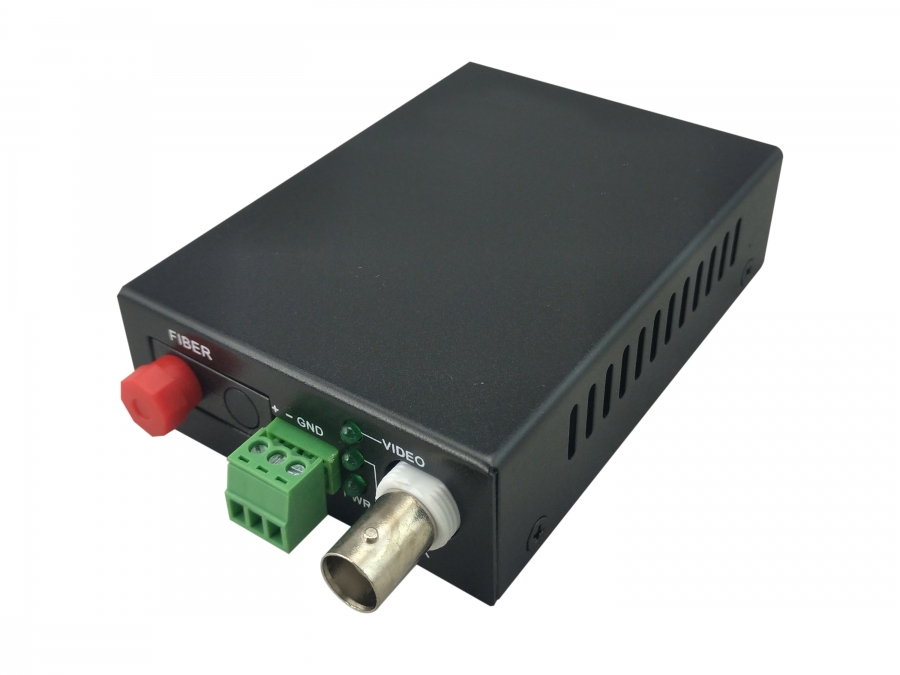

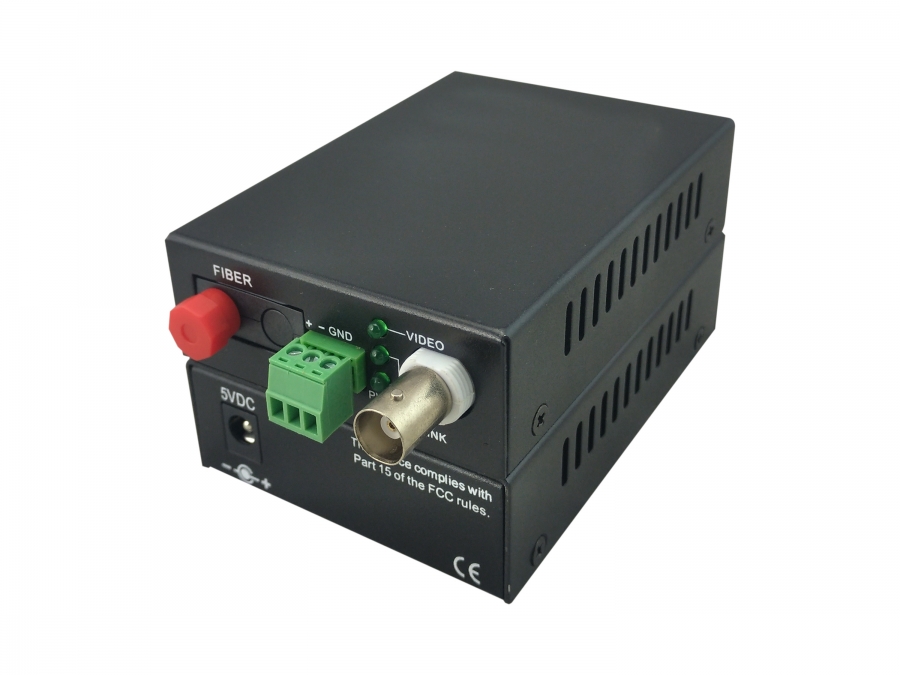

Level One LevelOne 1Port Extender Kit, 20km

LEVEL ONE

AVF-1101

Jauns

The LevelOne AVF Video over Fiber Converter series is designed to transmit composite video signals over long distances via optical fibre. On the transmitting side, video signals are digitalized and converted to optical signals, then transmitted over the fibre link to the receiver. The receiver then converts the optical signal back to analogue and displays the transmitted images on a monitor. LevelOne’s AVF solutions provide analogue surveillance and signage systems with the high quality images and long-distance transmission achievable through optical fibre, enhancing the capabilities of a traditional deployment or upgrading a legacy system. An ideal solution for analogue surveillance and Video Wall System applications.

TypeAV transmitter
Maximum transfer distance20000 m
Fiber optic wavelengths supported1470-1610,1310 nm
LED indicatorsJā
Bandwidth6.5 MHz
Plug and PlayJā
RX sensitivity-26 dB
Impedance75 Ω
Signal-to-Noise Ratio (SNR)60 dB
Linearity1.3%DG, 1.3°DP
Uncorrectable Bit Error Rate (UBER)< 1 per 10^9 bits read
Product colourBlack
CertificationCE, FCC
Connectivity technologyWired
Fiber optic connectorFC
BNC input ports1
Operating voltage5 V
Input current3 A
Power consumption (typical)12 W
Operating temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Width70 mm
Depth25 mm
Height90 mm
Weight460 g
Package width185 mm
Package depth62 mm
Package height275 mm
Package weight600 g
Package typeBox
AC adapter includedJā
Quick start guideJā
Country of originChina
Master (outer) case gross weight11.5 kg
Products per master (outer) case17 pc(s)
