> >>Level One LevelOne POR-0103 PoE Repeater 2-Port
Level One LevelOne POR-0103 PoE Repeater 2-Port

Level One LevelOne POR-0103 PoE Repeater 2-Port

LEVEL ONE

POR-0103

Jauns

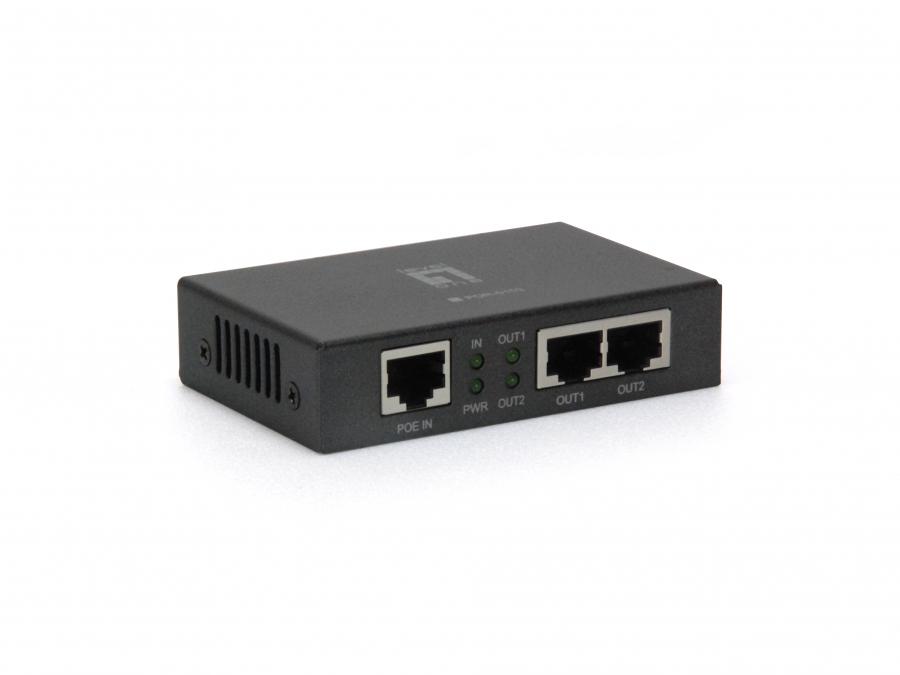

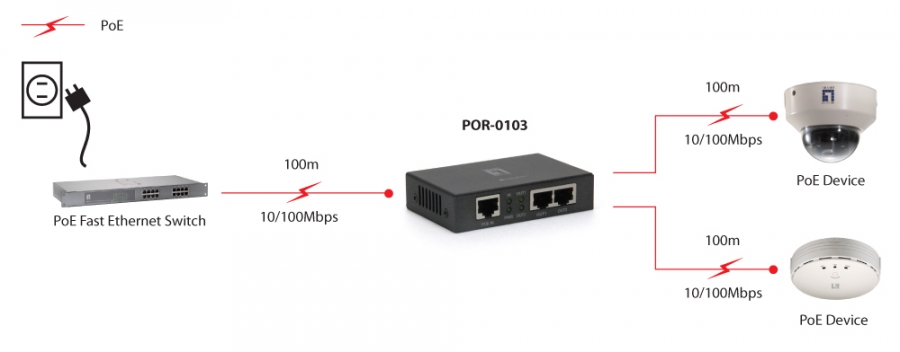

For system integrators looking for a professional solution to help extend their PoE network, POR-0103 is the perfect accessory to increase your Power over Ethernet network performance. LevelOne POR-0103, a 2-Port PoE Repeater requiring neither configuration nor electrical power, is an innovative transmitter to pass on both data and power extend to another 100 meters. It delivers both data and power to two PoE network devices such as WLAN Access Points, Network Cameras and other appliances with fast speed to the network for greater deployment flexibility.

- High Power Midspan PoE compliant to simplify deployment and installation
- Built-in 2 PoE output ports for PoE devices
- 10/100Mbps wire speed transmission and reception
- Forwards Power over Ethernet to remote device
- Extends PoE connection for another 100 meters
- Simple Plug and Play installation, no additional power supply required

TypeNetwork repeater
Maximum transfer distance100 m
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports3
Power over Ethernet (PoE) ports quantity3
Product colourBlack

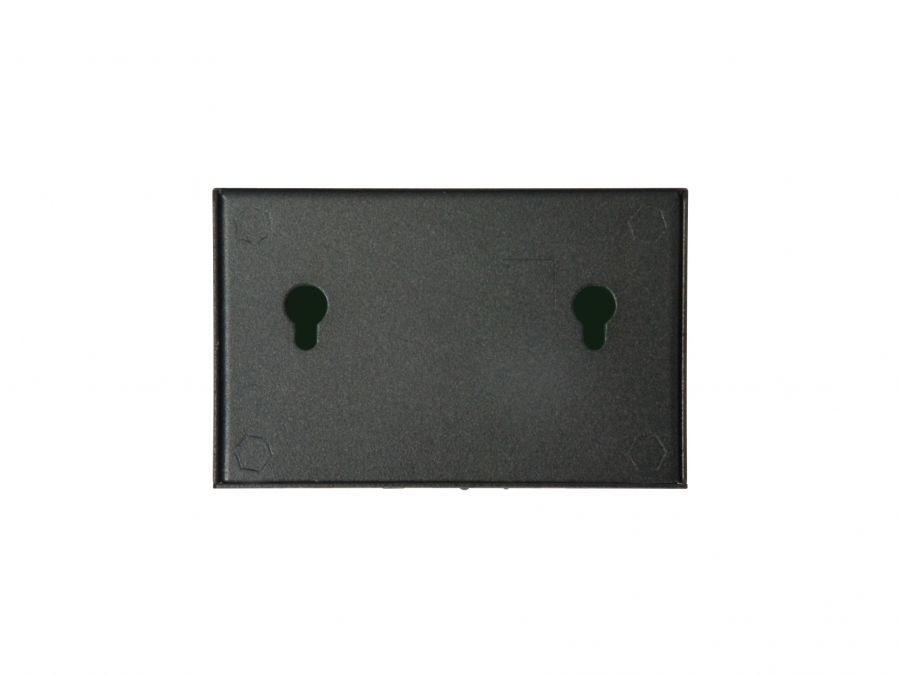

Mounting typeWall
LED indicatorsPoE, Power
Country of originTaiwan
CertificationFCC Part 15, Class B, CE
Power consumption (max)2.5 W
Power over Ethernet (PoE)Jā
Power over Ethernet (PoE) voltage range46 - 57 V
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Width57 mm
Depth21 mm
Height91 mm
Weight200 g
Sustainability certificatesRoHS
Quick start guideJā
Package typeBox
Package width93 mm
Package depth43 mm
Package height140 mm
Package weight100 g
Harmonized System (HS) code85176990
