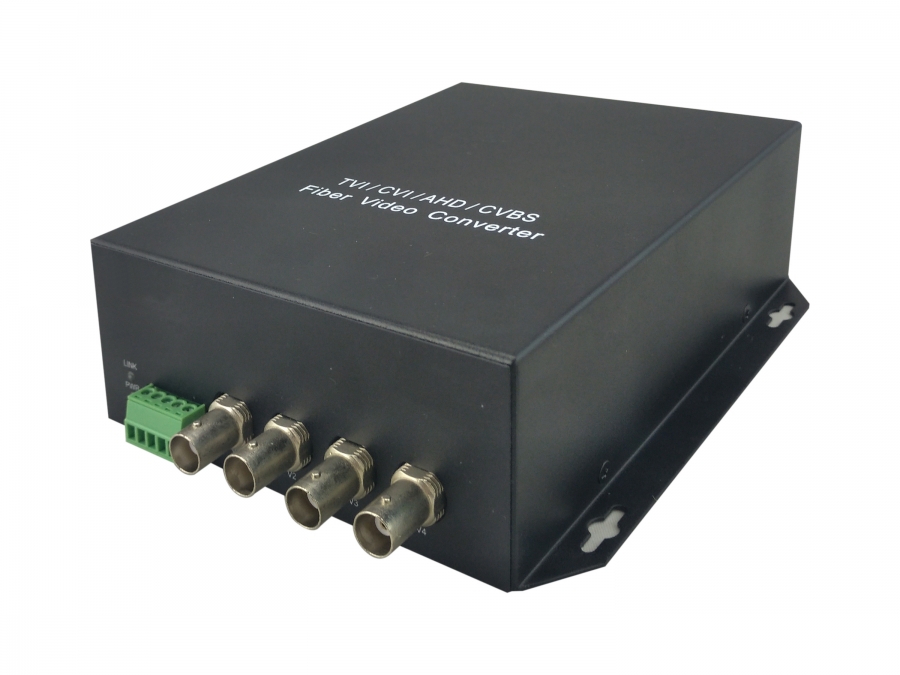

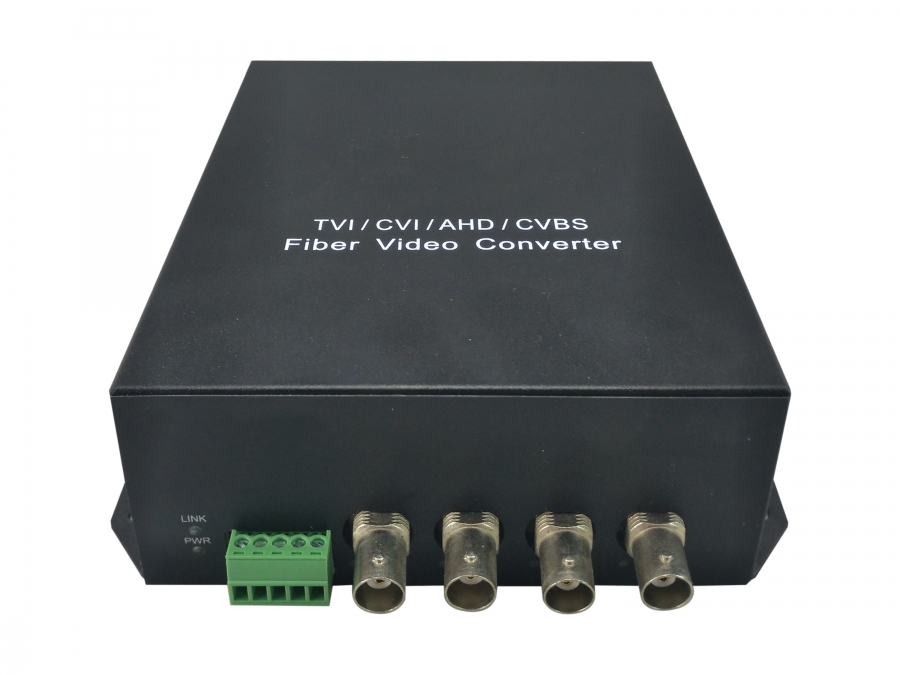

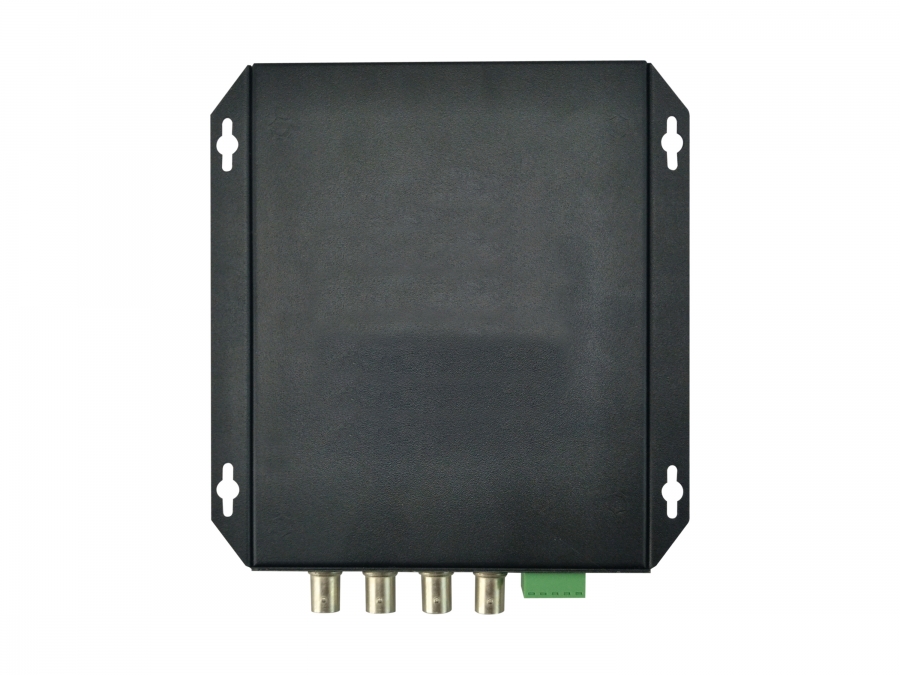

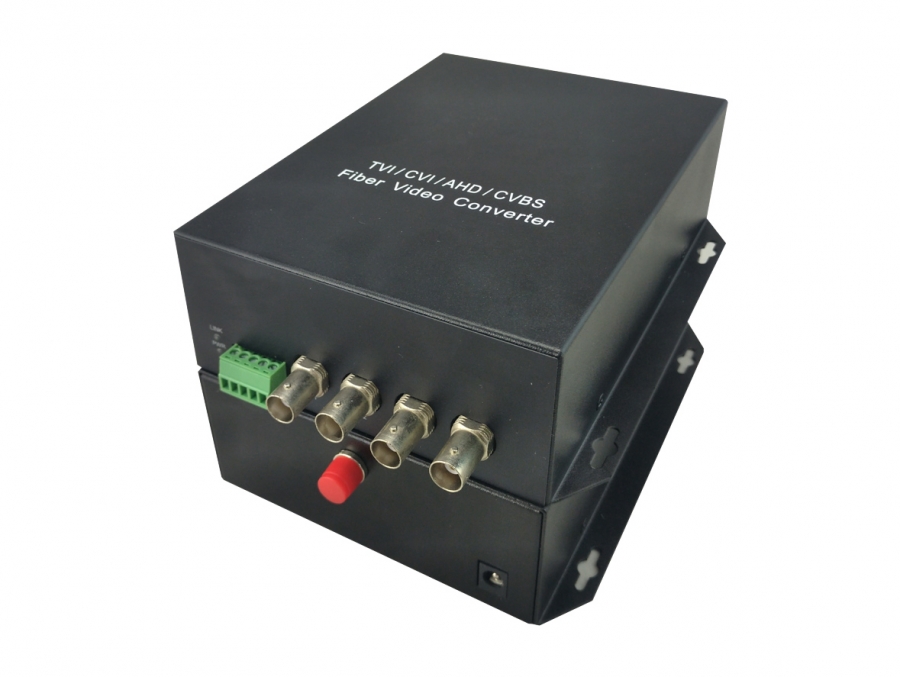

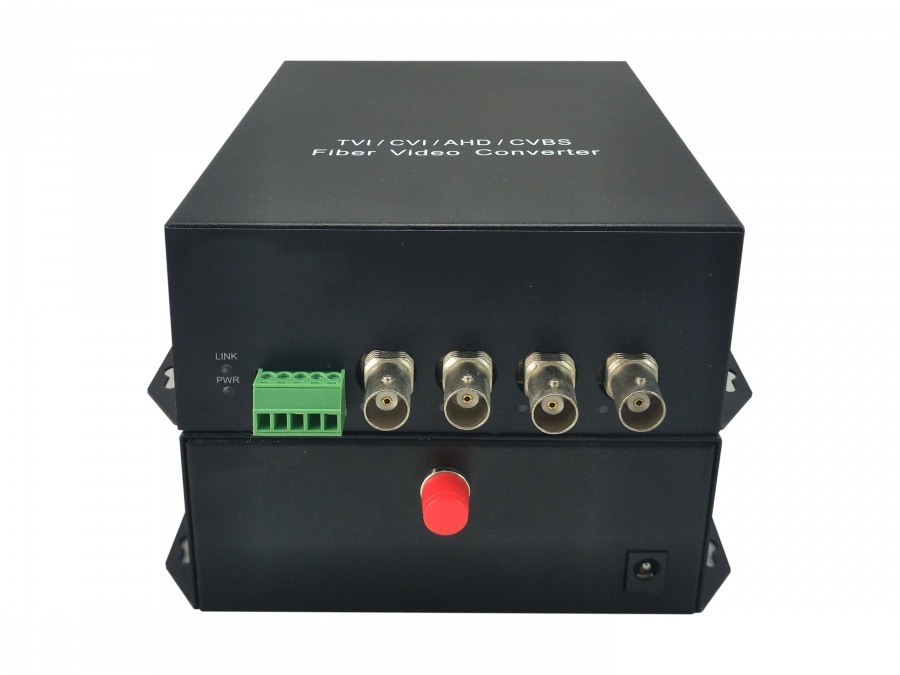

Level One LevelOne 4Port Extender Kit, 20km

LEVEL ONE

AVF-1401

Jauns

The LevelOne AVF Video over Fiber Converter series is designed to transmit composite video signals over long distances via optical fibre. On the transmitting side, video signals are digitalized and converted to optical signals, then transmitted over the fibre link to the receiver. The receiver then converts the optical signal back to analogue and displays the transmitted images on a monitor. LevelOne’s AVF solutions provide analogue surveillance and signage systems with the high quality images and long-distance transmission achievable through optical fibre, enhancing the capabilities of a traditional deployment or upgrading a legacy system. An ideal solution for analogue surveillance and Video Wall System applications.

TypeAV transmitter
Maximum transfer distance20000 m
Fiber optic wavelengths supported1470-1610,1310 nm
LED indicatorsJā
Bandwidth6.5 MHz
Plug and PlayJā
Wavelengths supported1310 nm
RX sensitivity-26 dB
Impedance75 Ω
Signal-to-Noise Ratio (SNR)60 dB
Linearity1.3%DG 1.3%DP
Uncorrectable Bit Error Rate (UBER)< 1 per 10^9 bits read
Product colourBlack
CertificationCE, FCC
Connectivity technologyWired
Fiber optic connectorFC
BNC input ports4
DC-in jackJā
Operating voltage5 V
Input current3 A
Operating temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Width116.5 mm
Depth48 mm
Height157.1 mm
Weight1.38 kg
Package width250 mm
Package depth115 mm
Package height405 mm
Package weight1.54 kg
Package typeBox
AC adapter includedJā
Quick start guideJā
Country of originChina
Master (outer) case gross weight11.9 kg
Products per master (outer) case4 pc(s)
