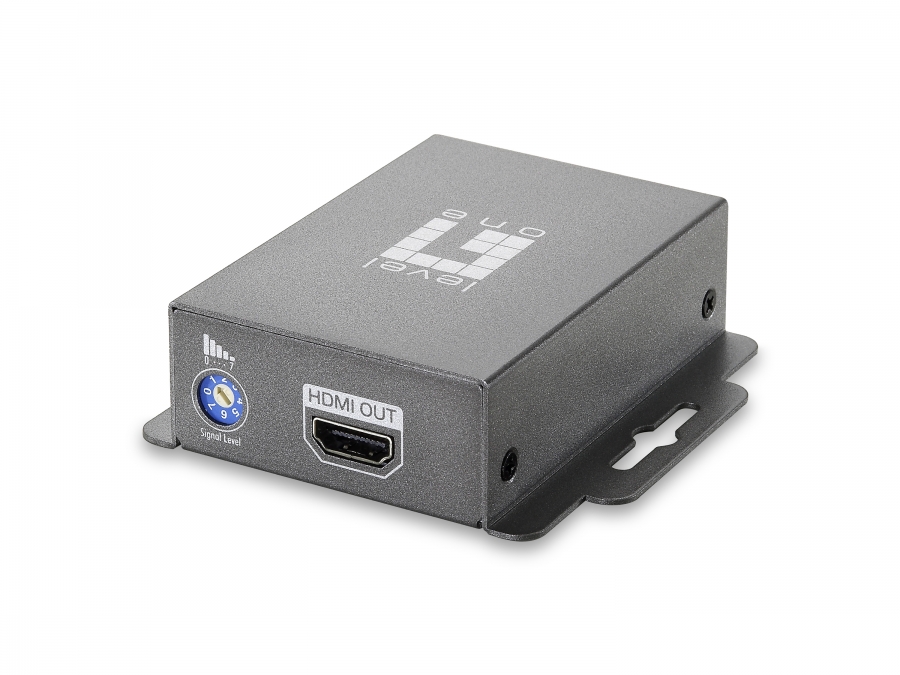

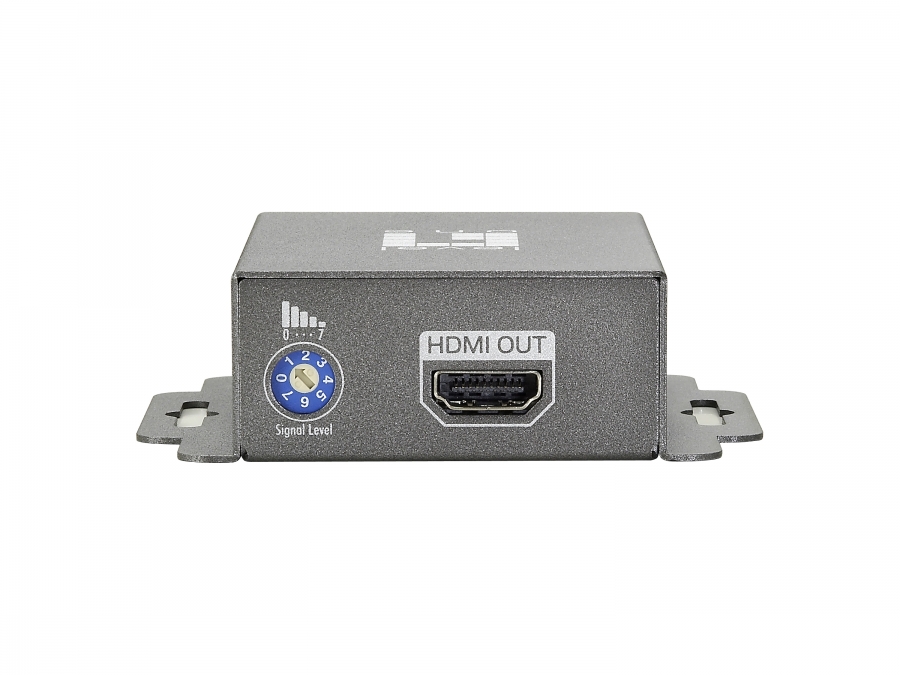

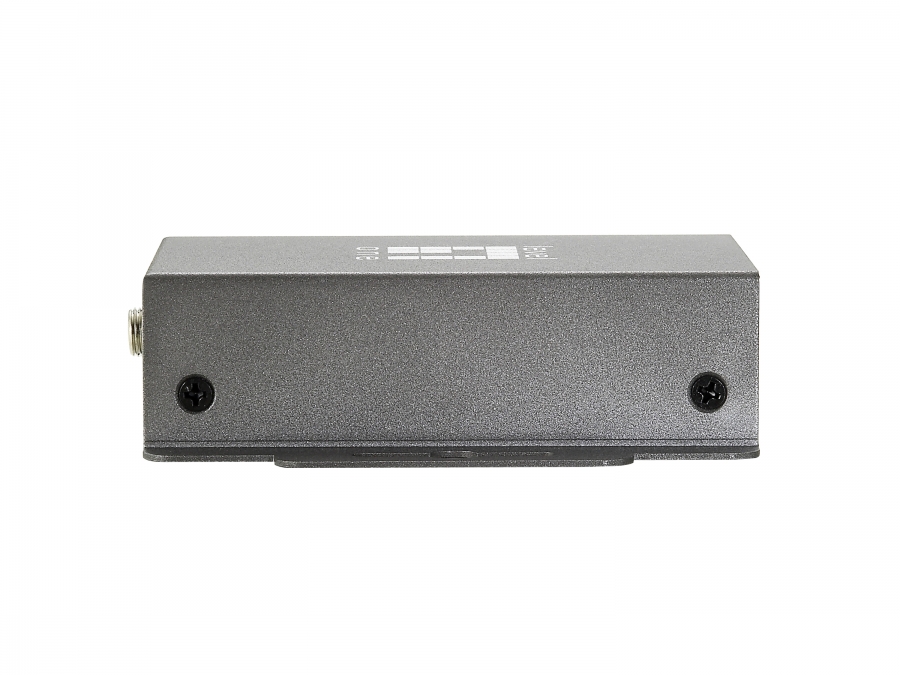

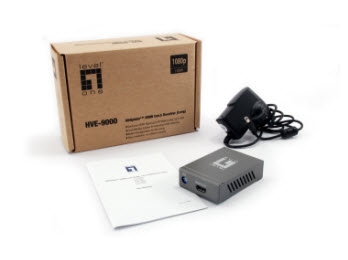

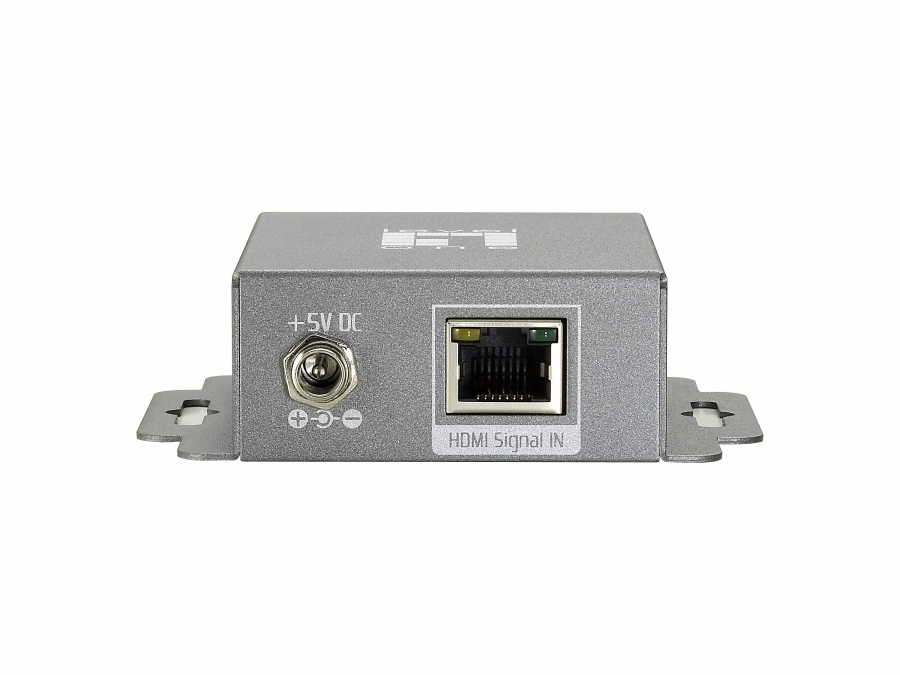

Level One LevelOne HVE-9000 Cat5 Audio/Video Transmitter HDMI HDSpider

Kods HVE-9000

Condition: Jauns

Vairāk informācijas

What is HDMI?
The High-Definition Multimedia Interface (HDMI) is a revolutionary technology that allows viewers to experience the highest quality digital images available. It is able to deliver top-quality video as well as audio over a single cable. This growing technology is great for displays in many different situations: movie theatres, concert halls, public transportation, malls, shops, airports, schools, etc.

Is HDMI 1.3 backward compatible with prior releases of the HDMI and DVI spec.?
HDMI 1.3 supports the demands of future high definition display devices, such as higher resolutions, high frame rates and Deep Color. Fully backward compatible with all prior releases of the HDMI spec, as well as DVI compliant devices.

What Products or applications will take advantage of new HDMI 1.3 capabilities?
New high-definition DVD formats (HD-DVD and Blu-Ray) and game machines (PS3 and X-Box) will make use of capabilities added in HDMI 1.3. Digital television will be able to present images that are closer to real life than previously has been possible.

Introducing the HDSpider™ Series from LevelOne
The HDSpider™ Series is a collection of HDMI Cat.5 senders and receivers, offering a full range of HDMI extender solutions. Choose from our 7different HDSpider extenders to build a flexible network to send your high-quality HDMI signals to greater distances, and at a reduced cost.

What does a Cat.5 receiver do?
This compact and simple to use device is deployed on the receiving end, where the HD monitor is located. Using Cat.5 cable to send the HDMI signal is the best way to reach extended distances and HVE-9000 also has a built-in equalization knob to help you fine tune your HD network.

Type	AV receiver
Maximum resolution	1920 x 1080 pixels
Cable types supported	Cat5, Cat5e, Cat6
Maximum transfer distance	60 m
Audio system	Multichannel
Supported video modes	720p, 1080i, 1080p
Bandwidth	6.75 Gbit/s
Bandwidth	225 MHz
HDCP	Jā
Product colour	Grey
RJ-45 input ports	1
Number of HDMI outputs	1
HDMI version	1.3c
DC-in jack	Jā
Operating voltage	5 V
Power consumption (max)	1 W
Current	2 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Dimensions (WxDxH)	60 x 93 x 25 mm
Width	60 mm
Depth	93 mm
Height	25 mm
Weight	405 g
Package width	140 mm
Package depth	200 mm
Package height	75 mm
Package weight	440 g
AC adapter included	Jā
Manual	Jā
Audio support	Jā
