Level One LevelOne POR-1202 PoE Repeater Outdoor PoE-Plus 2Port

Kods POR-1202

Condition: Jauns

Vairāk informācijas

Extend the reach of your PoE-Plus devices
For system integrators looking for a professional solution to help extend their Outdoor PoE (802.3af/at) network, POR-1202 is the perfect accessory to increase your network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility.

Normal cable runs only reach 100 meters, but with POR-1202 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.

* Maximum distance depends on the required Wattage of the PD.

Simple yet durable, no software required

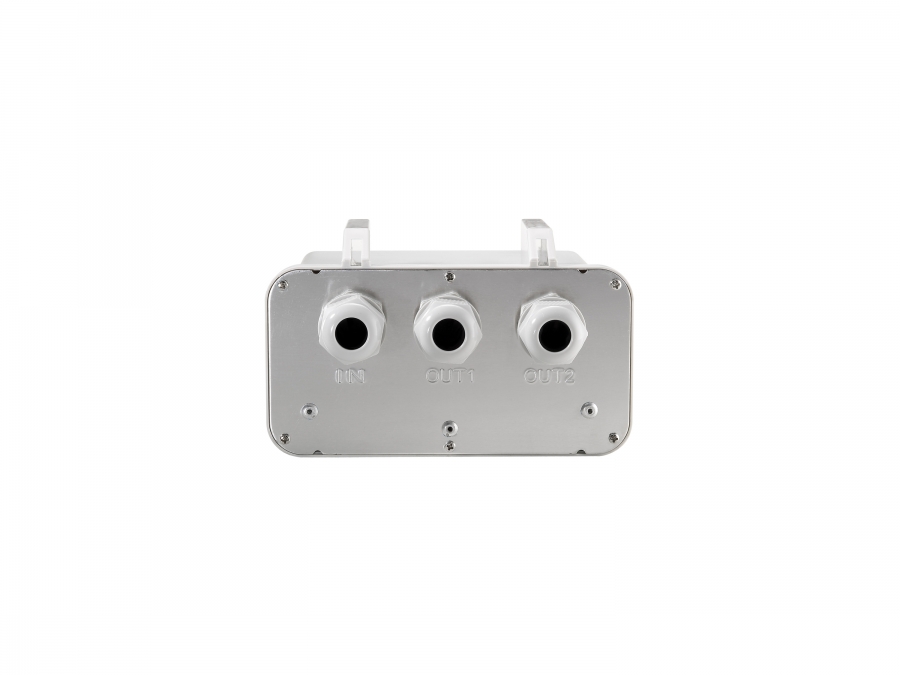

As a PoE-Plus Repeater, POR-1202 receives all power from the Power Sending Equipment (PSE), such as a PoE-Plus switch. This means that POR-1202 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-1202 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-1202 fits into any tight deployments.

Applications
POR-1202 is a long-ranged solution for deploying PoE IP Cameras and any Fast Ethernet PoE PD powered by 802.3at PSE.

IP65-compliant
The POR-1202 is compliant to IP65, and is therefore weatherproof from snow, rain, storms, desert heat, etc. For deployment in any harsh weather conditions, this PoE Repeater is up to the challenge.

Type	Network repeater
Maximum transfer distance	100 m
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports	3
Power over Ethernet (PoE) ports quantity	3
Product colour	White
Mounting type	Wall
Country of origin	Taiwan
Certification	FCC Part 15, CE
Power consumption (max)	2.5 W
Power over Ethernet (PoE)	Y
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	200 mm
Depth	110 mm
Height	240 mm
Weight	700 g
Sustainability certificates	RoHS
Package type	Box
Package width	255 mm
Package depth	110 mm
Package height	210 mm
Package weight	900 g
Harmonized System (HS) code	85176990
