LINDY Extender Transmitter HDMI & USB over IP 4K

Kods 38266

Condition: Jauns

Vairāk informācijas

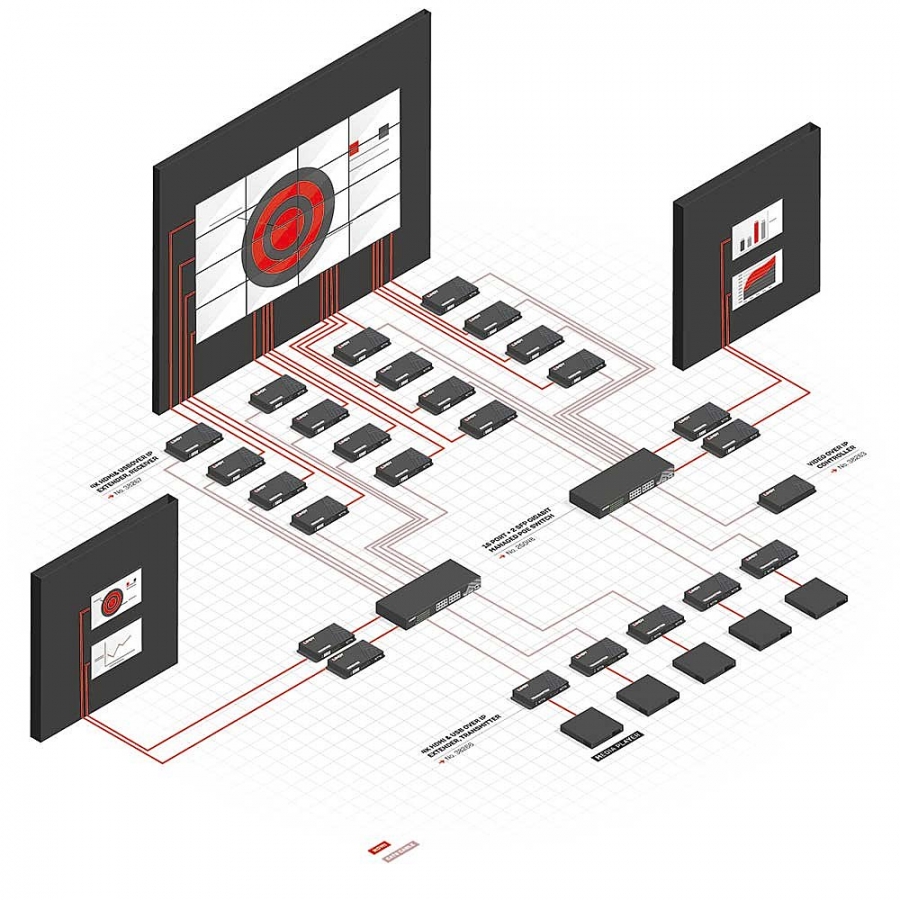

Extends HDMI 4K (3840x2160p60Hz 4:2:0) or VGA (max 1920x1200) Video signals over a Gigabit IP network Supports point to point installation up to 100m (393ft) and point to multipoint installation using a Gigabit Switch (also for Video Wall creation) Extends USB 2.0, USB HID (for KVM functions), bidirectional analog audio, bidirectional IR and RS232 signals HDMI 2.0 & HDCP 2.2/1.4 compliant 2 year warrantyThe 4K Over IP Extender system allows users to extend a 4K video source such as a PC or PVR through a standard Gigabit IP network letting the user control it from the remote side through the extended USB interfaces. This transmitter unit can be connected to one or more receiver units (No. 38267 – not included) to create a standard point to point control system with a maximum distance of 100m (393ft). This transmitter can also be connected to many receivers allowing a single device to be controlled from different consoles at the receiver end or creating a Video Wall installation via a dedicated Gigabit Ethernet (supporting 8kB Jumbo frames) switch on the same private network.Besides the HDMI embedded audio signal, this unit also manages 2 additional audio channels (1 x Line out audio from the source side and 1 for microphone connected on the remote side) and a SPDIF optical port on the receiver unit to connect a digital audio amplifier or device.This HDMI Over IP extender system includes a convenient bidirectional IR (20-60Khz) repeating system to allow the extension of the remote control signals.This device is a typical solution for security system management (PVR management or control rooms) or remote server administration (though the KVM control system) as well as AV signals over IP extension for distributed monitoring of industrial facilities. Another main application for this system is big Video Wall installation (up to 16x16 screens) widely used for digital signage and retail stores.

Type	AV transmitter
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	100 m
Maximum refresh rate	60 Hz
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2160
Bandwidth	10.2 Gbit/s
HDCP	Y
Material	Metal
HDCP version	2.2
Product colour	Black
Certification	CE, FCC, REACH
Connectivity technology	Wired
Ethernet LAN	Y
RJ-45 input ports	1
VGA (D-Sub) input ports	1
VGA (D-Sub) output ports	1
HDMI in	1
HDMI version	2.0
USB ports quantity	1
USB version	2.0
USB connector type	USB Type-B
RS-232 input ports	1
Remote (IR) input	1
Remote (IR) output	1
Line outputs (RCA)	1
Line-in	Y
DC-in jack	Y
Operating voltage	5 V
Input current	2.4 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Width	232 mm
Depth	25 mm
Height	108 mm
Weight	670 g
Package width	225 mm
Package depth	190 mm
Package height	80 mm
Package weight	1.15 kg
AC adapter included	Y
Manual	Y
IR blaster included	Y
IR receiver included	Y
Sustainability certificates	RoHS
