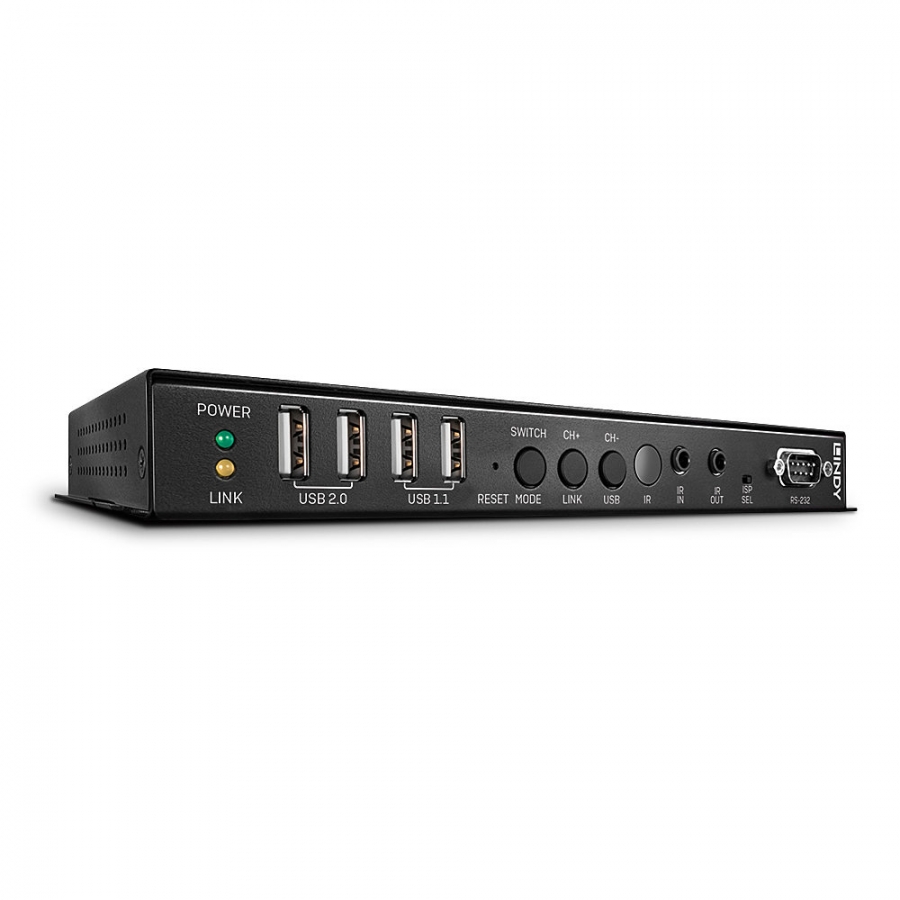

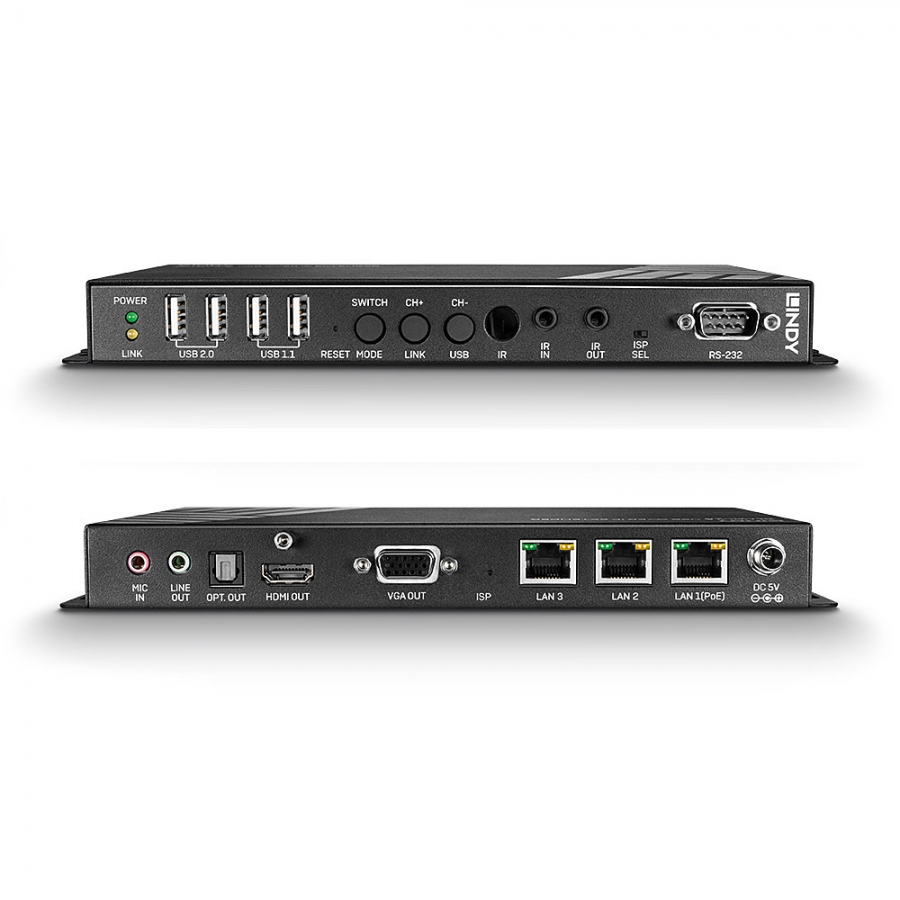

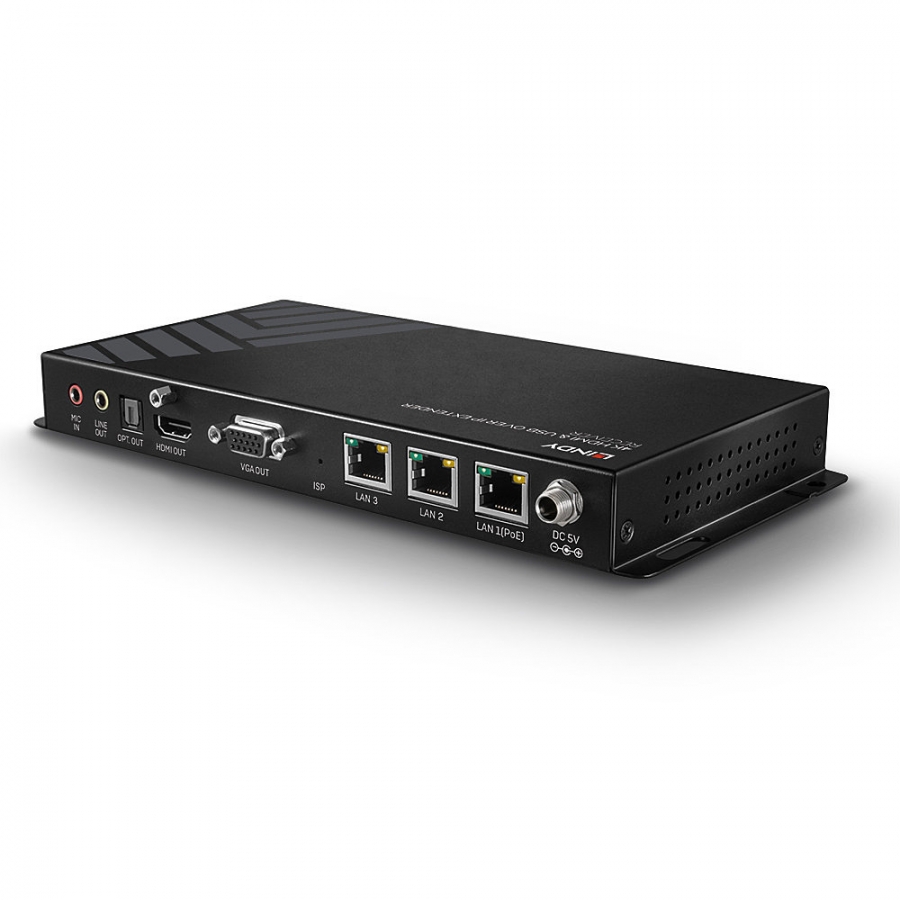

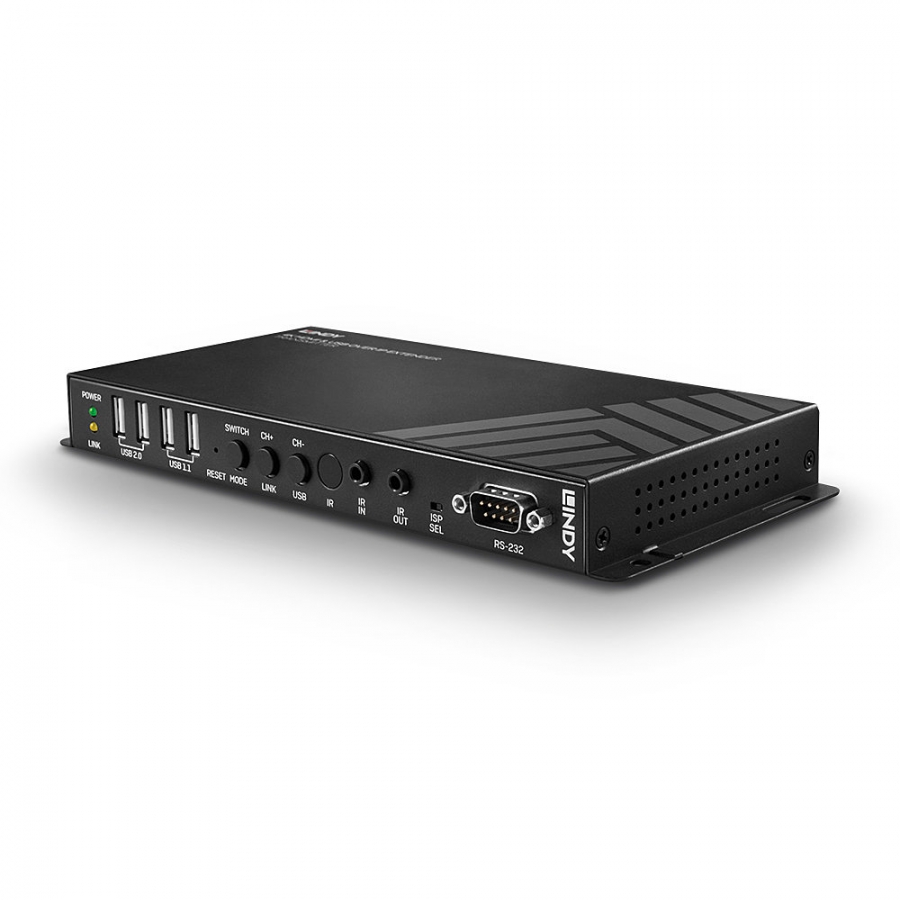

LINDY Receiver HDMI & USB over IP 4K

Lindy

38267

Jauns

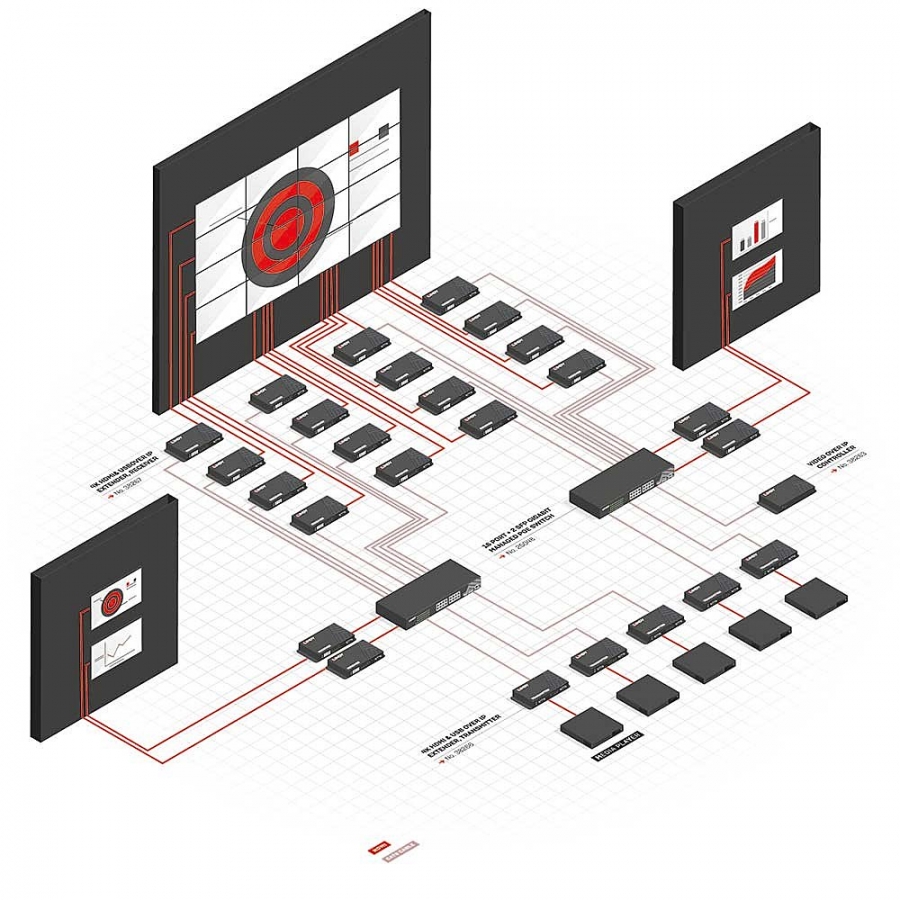

Extends HDMI 4K (3840x2160p60Hz 4:2:0) or VGA (max 1920x1200) Video signals over a Gigabit IP network Supports point to point installation up to 100m (393ft) and point to multipoint installation using a Gigabit Switch (also for Video Wall creation) Extends USB 2.0, USB HID  (for KVM functions), bidirectional analog audio, bidirectional IR and RS232 signals HDMI 2.0 & HDCP 2.2/1.4 compliant 2 year warrantyThe 4K Over IP Extender system allows users to extend a 4K video source such as a PC or PVR through a standard Gigabit IP network letting the user control it from the remote side through the extended USB interfaces. This receiver unit can be connected to a transmitter unit (No. 38266 – not included) to create a standard point to point control system with a maximum distance of 100m (393ft). The transmitter can also be connected to many receivers, allowing a single device to be controlled from different consoles at the receiver end or creating a Video Wall installation via a dedicated Gigabit Ethernet (supporting 8kB Jumbo frames) switch on the same private network.Besides the HDMI embedded audio signal, this unit also manages 2 additional audio channels (1 x Line out audio from the source side and 1 for microphone connected on the remote side) and a SPDIF optical port on the receiver unit to connect a digital audio amplifier or device.This HDMI Over IP extender system includes a convenient bidirectional IR (20-60Khz) repeating system to allow the extension of the remote control signals.This device is a typical solution for security system management (PVR management or control rooms) or remote server administration (though the KVM control system) as well as AV signals over IP extension for distributed monitoring of industrial facilities. Another main application for this system is big Video Wall installation (up to 16x16 screens) widely used for digital signage and retail stores.

TypeAV receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat6
Maximum transfer distance100 m
Maximum refresh rate60 Hz
LED indicatorsLink, Power
Supported graphics resolutions1920 x 1200 (WUXGA), 3840 x 2160
Bandwidth10.2 Gbit/s
HDCPY
MaterialMetal
HDCP version2.2
Product colourBlack
CertificationCE, FCC, REACH
Connectivity technologyWired
RJ-45 output ports3
VGA (D-Sub) output ports1
Number of HDMI outputs1
HDMI version2.0
USB ports quantity4
USB version2.0
USB connector typeUSB Type-A
Digital audio optical out1
Serial ports quantity1
Serial interface typeRS-232
DC-in jackY
Operating voltage5 V
Input current4 A
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Width235 mm
Depth25 mm
Height108 mm
Weight670 g
Package width225 mm
Package depth190 mm
Package height80 mm
Package weight1.4 kg
AC adapter includedY
ManualY
IR blaster includedY
IR receiver includedY
Sustainability certificatesRoHS
