LEVEL ONE

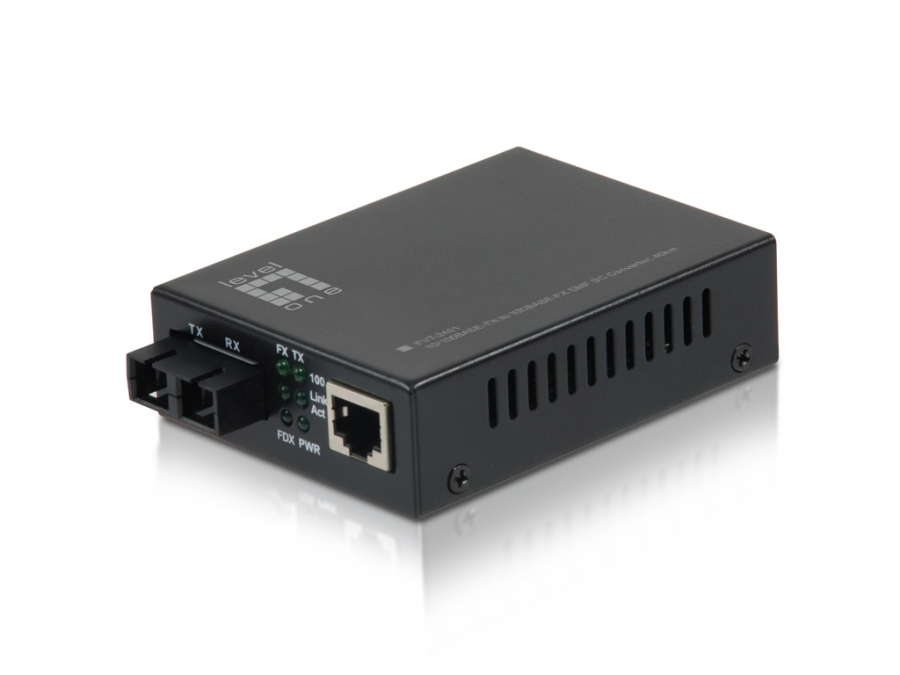

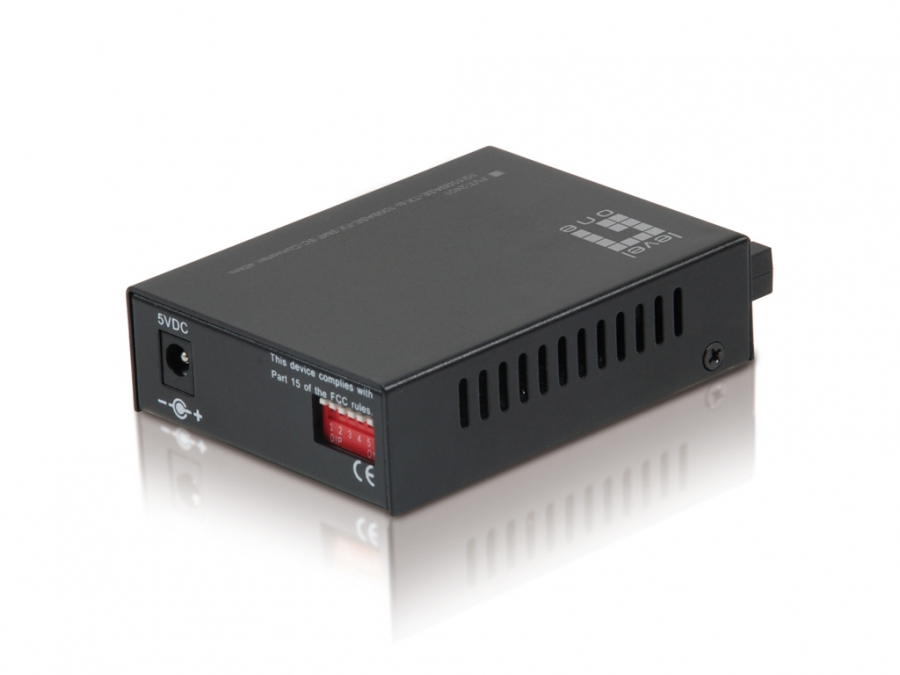

FVT-2401

Jauns

The FVT-2401 SMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 40 km.The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.The FVT-2401 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19-inch Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

Maximum data transfer rate100 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control supportY
Store-and-forwardY
Duplex systemFull, Half
Link Loss Carry Forward (LLCF) supportedY
Link Loss Return (LLR) supportedY
Fiber optic connectorSC
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
DC-in jackY
Maximum transfer distance40000 m
Wavelength1310 nm
Fiber mode structureSingle-mode
Fiber cable diameters supported (core/cladding)8.3/125,9/125,10/125 µm
InternalN
LED indicatorsActivity, Link, Power
Product colourBlack
Country of originChina
CertificationFCC, CE
Input voltage5 V
Input current1 A
Width94 mm
Depth70 mm
Height25 mm
Weight420 g
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)5 - 90%
Package width235 mm
Package depth125 mm
Package height55 mm
Package weight494 g
Package typeBox
AC adapter includedY
Quick installation guideY
Sustainability certificatesRoHS
Harmonized System (HS) code85176990
