| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Store-and-forward | Y |
| Duplex system | Full, Half |
| Fiber optic connector | SFP |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |

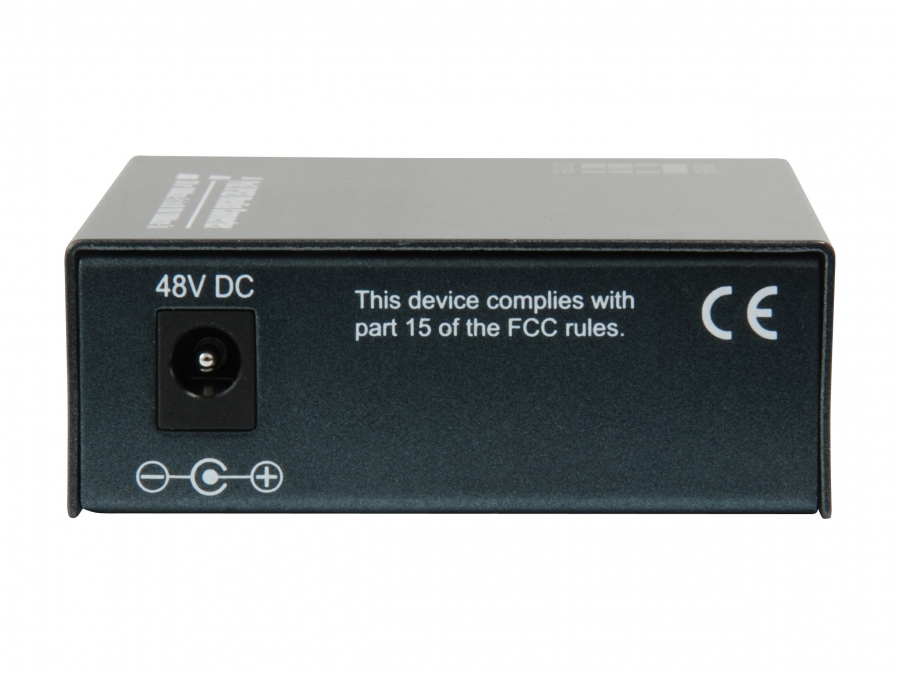

| DC-in jack | Y |
| Mean time between failures (MTBF) | 30000 h |
| Internal | N |
| LED indicators | Y |
| Product colour | Black |
| Country of origin | China |
| Certification | CE, RoHS |
| Input voltage | 48 - 57 V |
| Input current | 1 A |
| Output voltage | 48 V |
| Power over Ethernet (PoE) | Y |
| Width | 70 mm |
| Depth | 94 mm |
| Height | 26 mm |
| Weight | 200 g |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Package width | 230 mm |
| Package depth | 195 mm |
| Package height | 70 mm |
| Package weight | 500 g |
| Package type | Box |
| AC adapter included | Y |
| Quick installation guide | Y |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 367 mm |
| Master (outer) case gross weight | 13 kg |
| Products per master (outer) case | 20 pc(s) |
