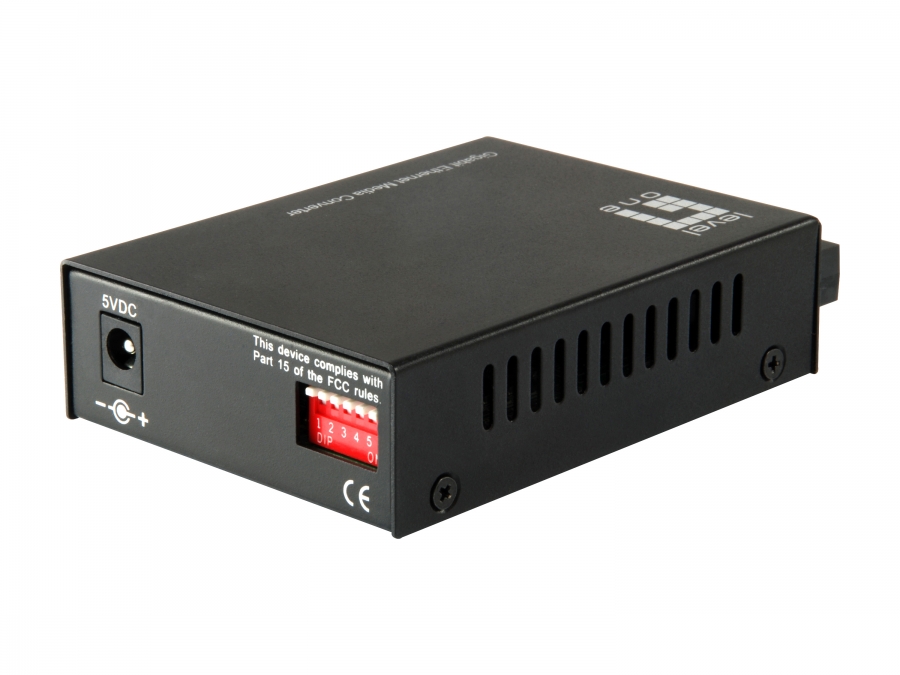

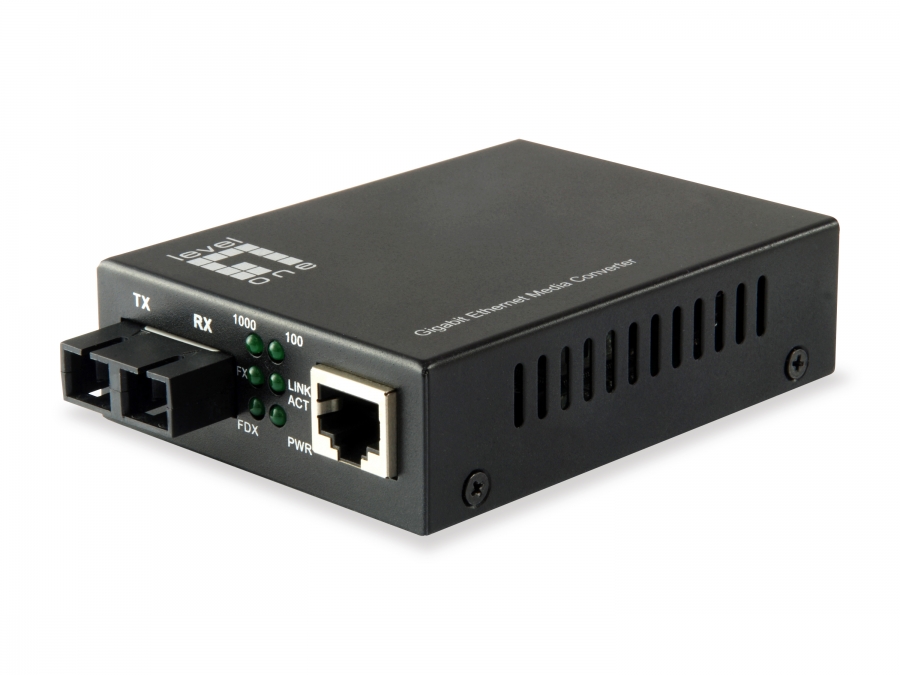

Level One LevelOne Konverter GVT-2002 10/100/1000T>1000SX 20km

Kods GVT-2002

Condition: Jauns

Vairāk informācijas

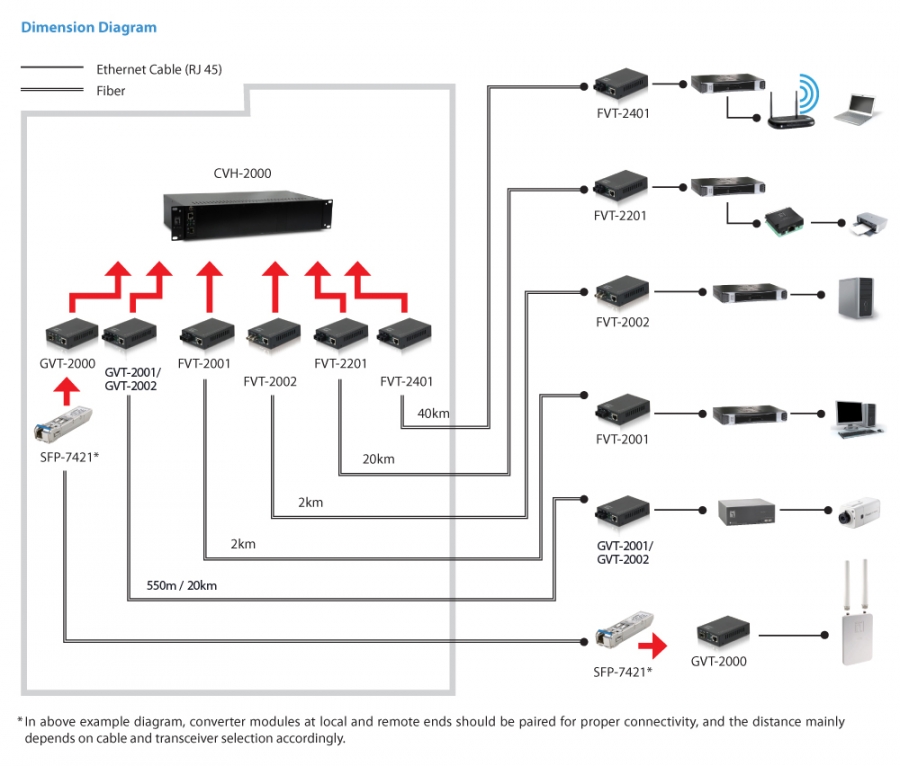

The GVT-2002 SMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km.The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.The GVT-2002 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Maximum data transfer rate	1000 Mbit/s
Converter input interface	10Base-T, 100Base-TX, 1000Base-T
Converter output interface	1000Base-LX, 1000Base-SX
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX
Jumbo frames support	Y
Jumbo frames	9000
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Store-and-forward	Y
Duplex system	Full
Link Loss Carry Forward (LLCF) supported	Y
Link Loss Return (LLR) supported	Y
Cable types supported	Cat5, Cat5e
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
DC-in jack	Y
Maximum transfer distance	20000 m
Wavelength	1310 nm
Fiber mode structure	Single-mode
Internal	N
LED indicators	Y
Product colour	Black
Country of origin	China
Certification	CE, FCC
Input voltage	5 V
Input current	2 A
Width	94 mm
Depth	26 mm
Height	71 mm
Weight	200 g
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 90%
Package width	120 mm
Package depth	55 mm
Package height	235 mm
Package weight	360 g
Package type	Box
AC adapter included	Y
Quick installation guide	Y
Harmonized System (HS) code	85176990
Master (outer) case width	360 mm
Master (outer) case length	390 mm
Master (outer) case height	480 mm
Master (outer) case gross weight	13 kg
Products per master (outer) case	36 pc(s)
