Level One LevelOne Konverter FVS-3120 10/100TX>100LX SC SM

LEVEL ONE

FVS-3120

Jauns

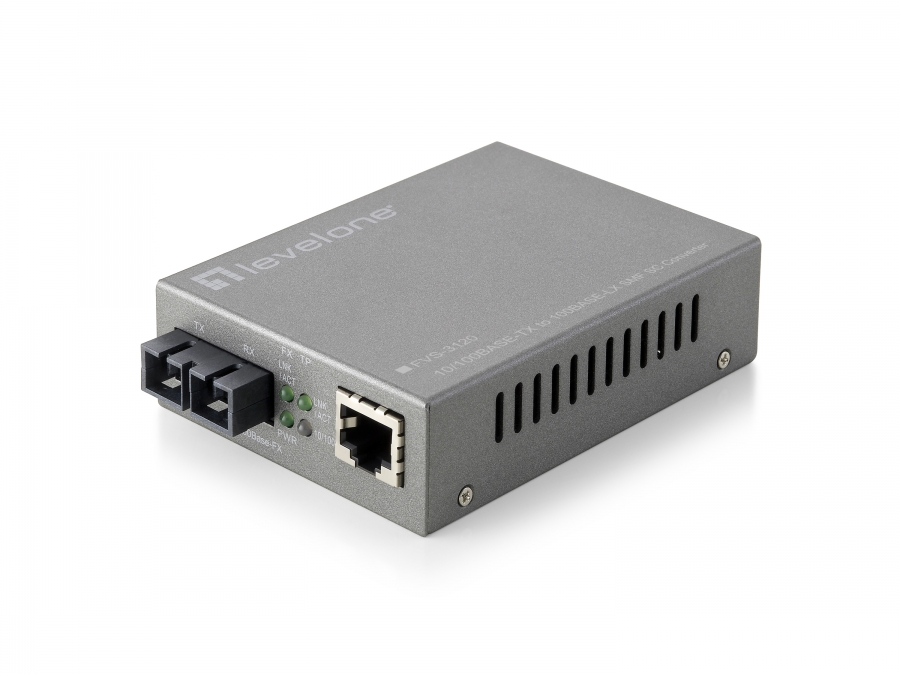

The LevelOne Web Smart Media Converter FVS-3120 is designed to make conversion between 10/100BASE-TX and 100BASE-LX SMF SC Ethernet.With web-based management, the network administrator can logon to the converter remotely to monitor, configure and control the status of each unit. The overall network reliability is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications.- HTTP Management with remote firmware upgrade supported - ICMP and ARP protocols supported - DHCP Client for easy IP address setup - LLR (Link Loss Return) supported - IEEE 802.1Q VLAN and Double VLAN (Q-in-Q) supported - Support 802.3x Flow Control to prevent lost data by controlling the device flow loading

Maximum data transfer rate100 Mbit/s
Converter input interface10Base-T, 100Base-TX
Converter output interface100Base-LX
Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Jumbo frames supportY
Flow control supportY

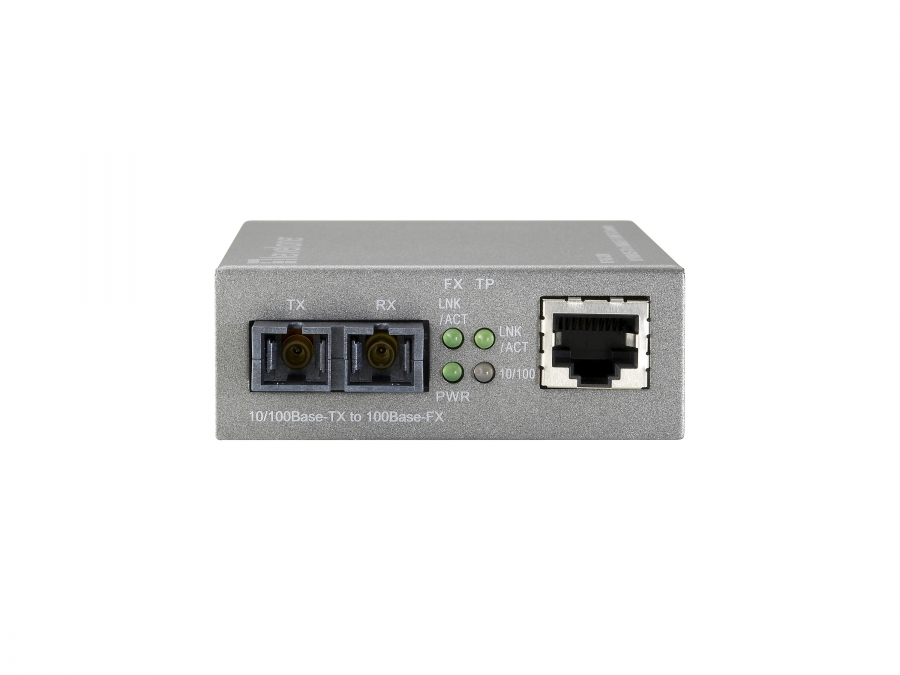

Fiber optic connectorSC
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
DC-in jackY
Maximum transfer distance20000 m
Fiber mode structureSingle-mode
Fiber cable diameters supported (core/cladding)3/125,8.7/125,9/125,10/125 µm
InternalN
Product colourGrey
Country of originTaiwan
CertificationFCC Part 15 Class A, CE

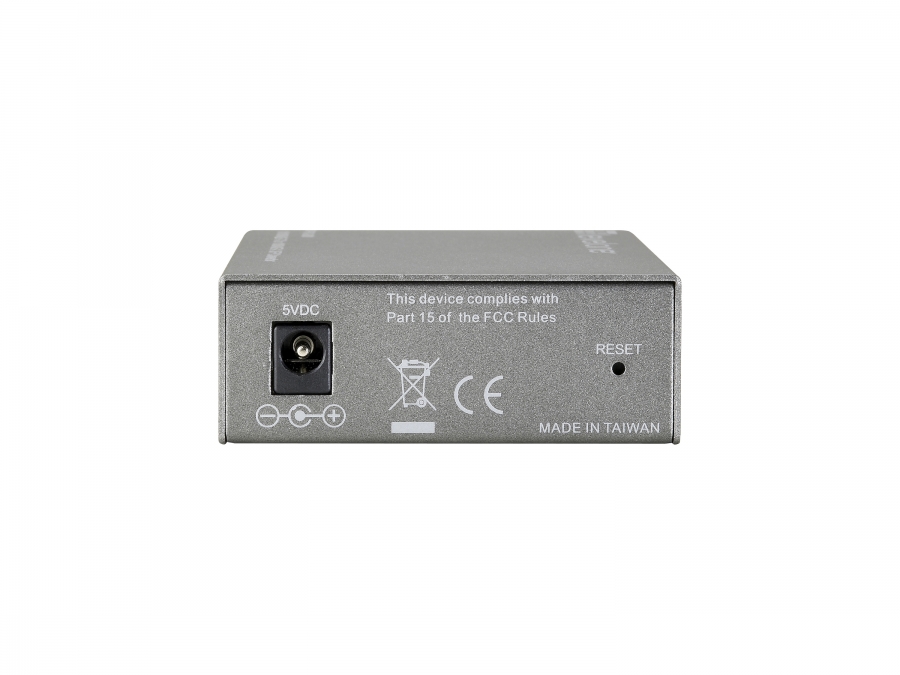

Input voltage5 V
Input current1 A
Power consumption (typical)1.5 W
External power adapterY
Width70.3 mm
Depth94 mm
Height26.2 mm
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 90%
Package width160 mm
Package depth220 mm
Package height60 mm
Package weight460 g
ManualY
