- Easy verification for cabling faults including discontinuity, open wires, shorts (short-circuited - wire/wire or wire/shield - connections), miswiring and crossed pairs is quickly detected with the LANtest’s unique LED display
- Wiring configuration for Cat5, coaxial and modular telephone cables by comparing one transmitting end to another receiving end
- Continuity testing of coax cables with BNC connectors and 8-pole data lines w. fitted RJ-45 connectors

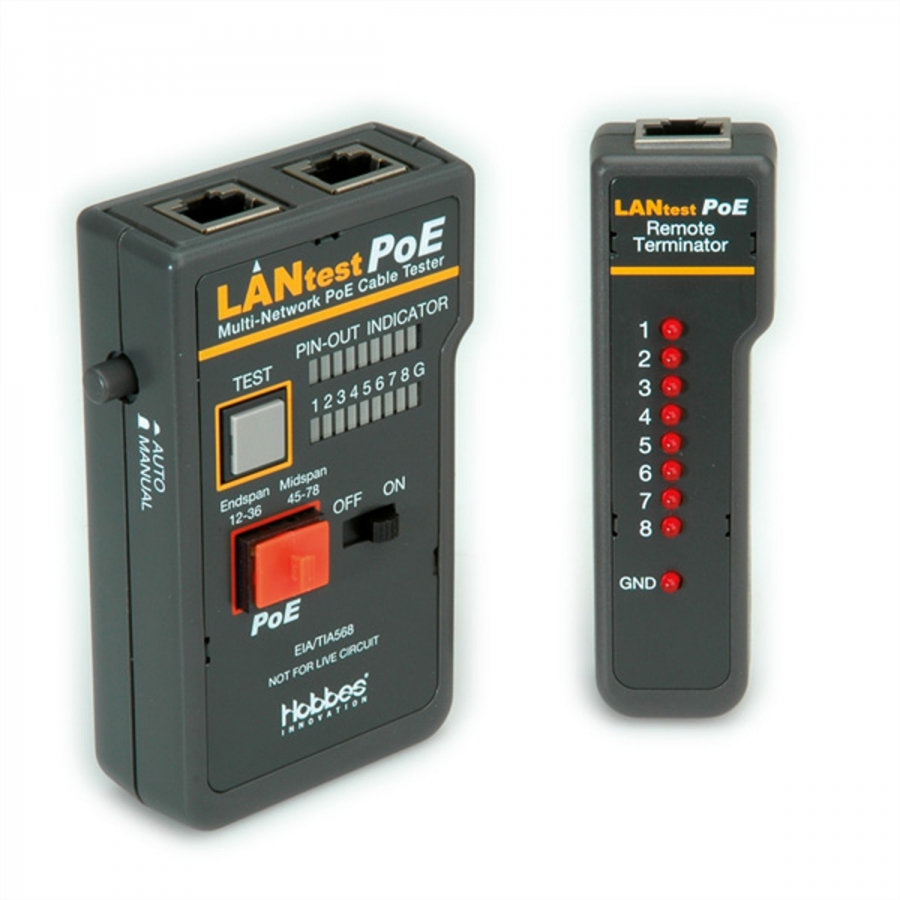

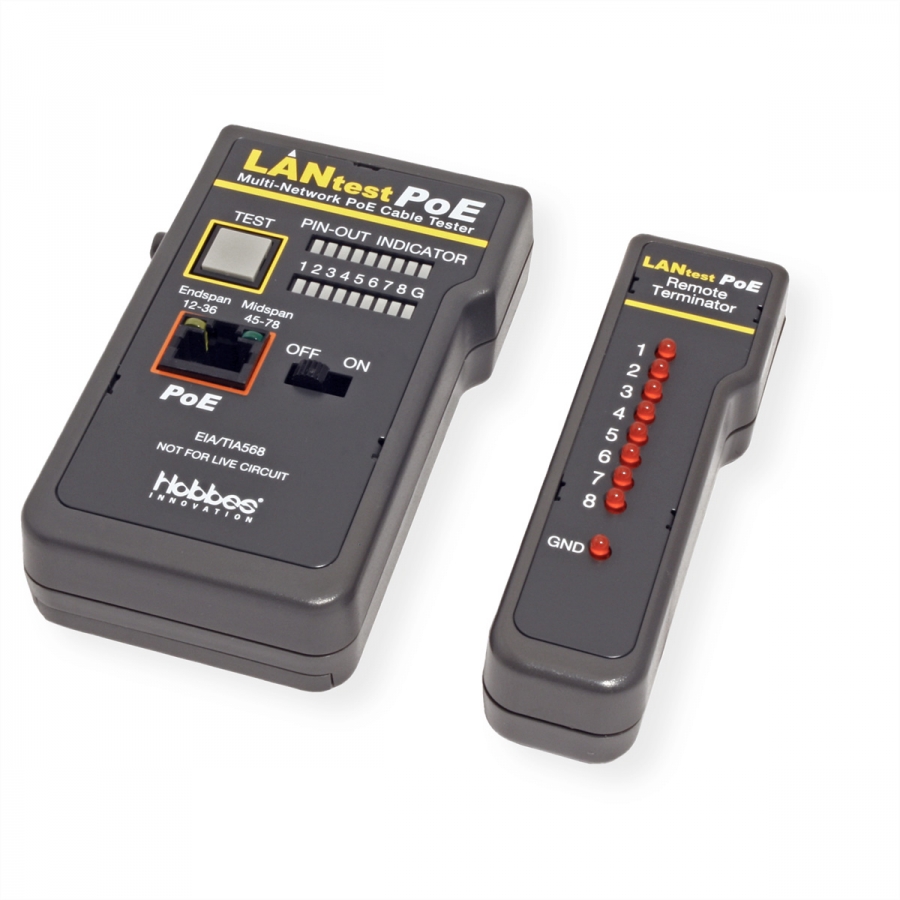

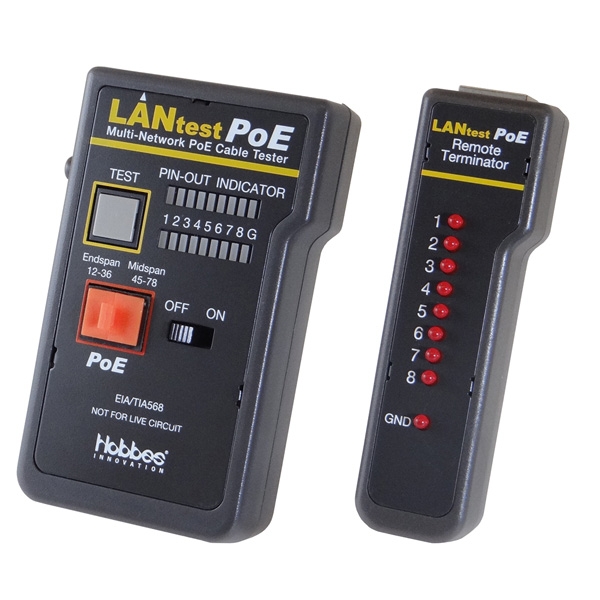

- A two-line display (LEDs) indicates sequentially which pin of the RJ-45 connector at cable end A is connected with which pin at cable end B and manual or automatic switch advancing is possible; in the case of a short-circuit more than two LEDs light up simultaneously

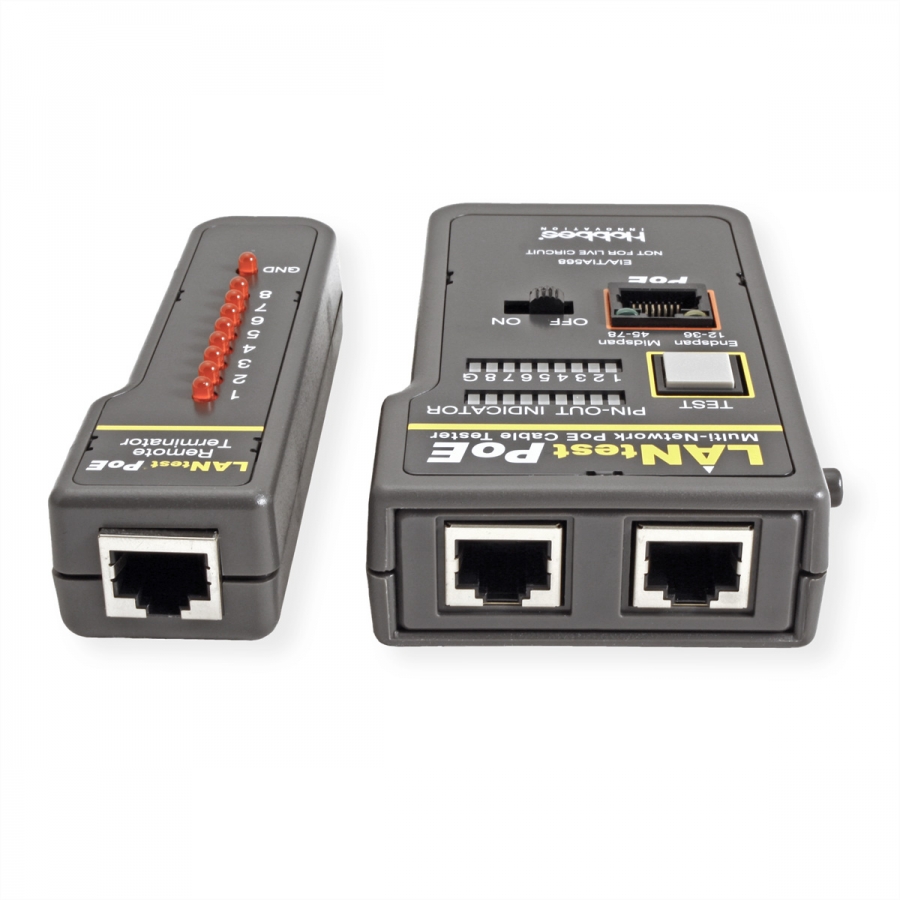

- The device has 2 RJ-45 sockets; with the supplied Remote Kit cables laid in the wall can also be tested
- Two adapter cables (BNC/RJ-45) are supplied for testing coax cables
- Check the existence of PoE in a second
- Identifies the type of PSE, whether the PoE voltage is detected on the pair 12-36 (Endspan), or on the 45-78 (Midspan)
- Compliant with IEEE802.3af and IEEE802.3at standard
- Battery (not included in delivery): 1x E-block 9V (6LR61/AM-6)
Caution: Do not connect cable testers to devices during operation
|
