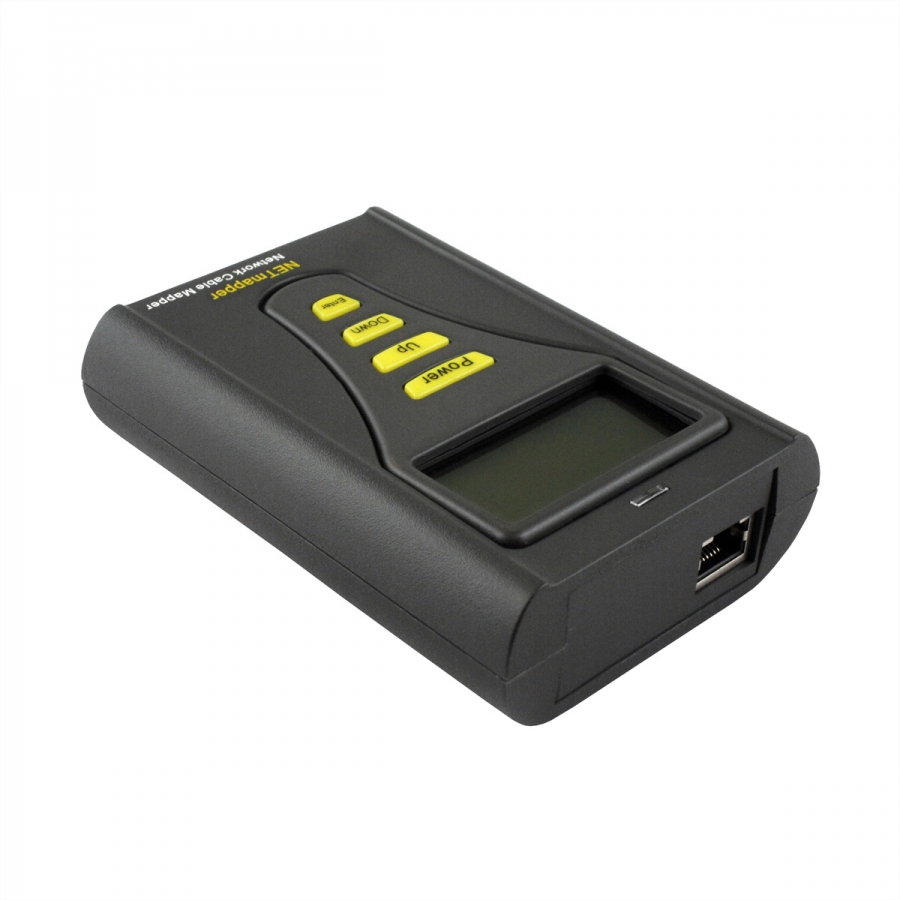

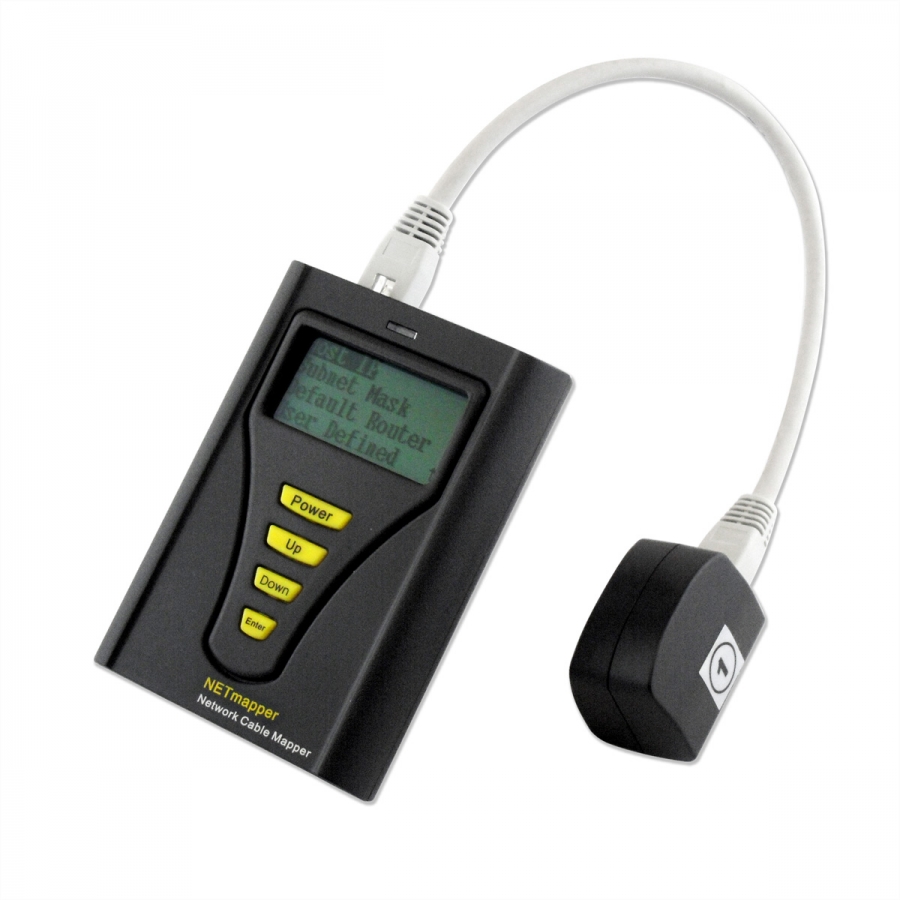

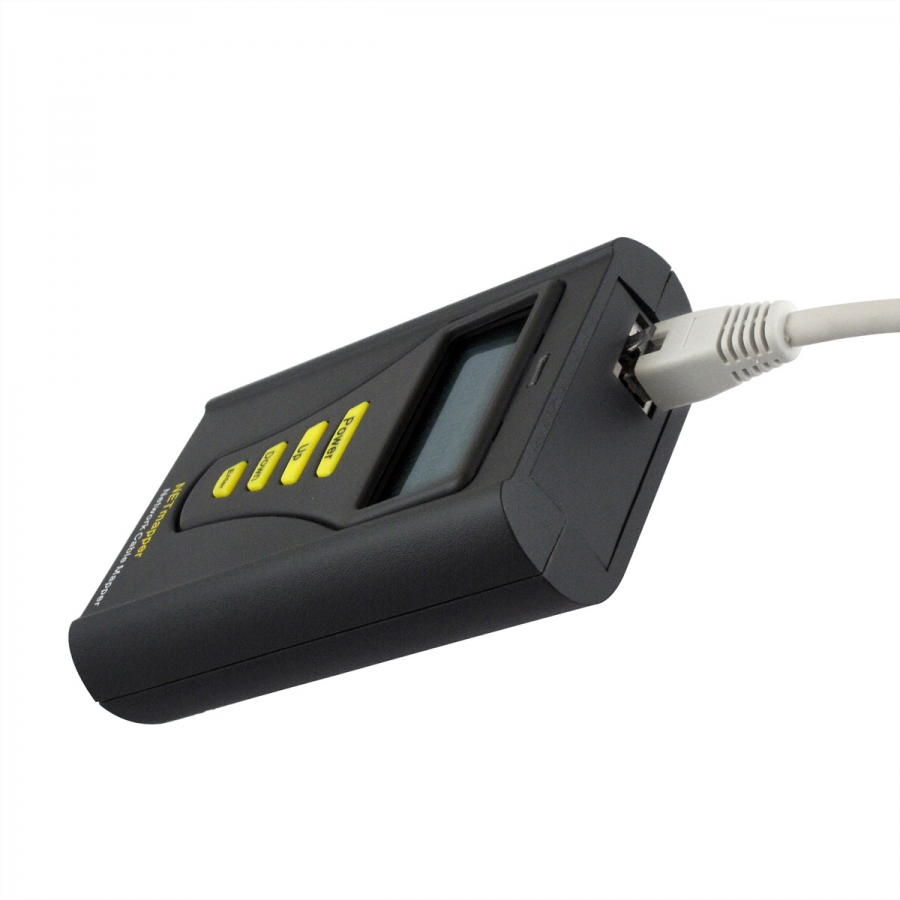

HOBBES NETmapper

Displays the Ethernet port status, ping default router, ping DNS server and ping user defined device...

• Incorporates TDR technology
• On–line test: Displays the Ethernet port status, ping default router, ping DNS server and ping user defined device...etc.
• Off–line test: Wire map/twisted mapping/cable length/tone generator and port–finder
• Reporting voltage and polarity if voltage is present on pin 4/5 (telephone line)
• Wire map for cables opened, shorted, reversed, crossed, split pairs, mis–wire, ad shield continuity
• Wire map results are displayed by pin–to–pin format
• Displays the wire map and cable faults with remote ID in one screen
• Measures twisted pairs, map, and length of Cat5, Cat5E, Cat6 and Cat7 cables without remotes
• Self–calibrating function allows for increased measuring accuracy when testing length of non–standard cables
• Displays measurements in both meters and ft.
• Port-finder function to locate corresponding socket on 10/100M or Giga hub/switch
• Tone generator sends 1kHz tone on all pins with 4 tonalities
• RJ-45 port protection from damage due to high voltage from telephone line
• Low battery indicator

SPECIFICATIONS

- Display: 128 x 64 dot matrix LCD
- Connector type: RJ-45 (main and remote)
- Accuracy: +2m less than 10m (+6.56 ft. in less than 32.81 ft.), +5% over 10m (32.81ft.)
- Test range for cable length: 1 to 300m (3 to 984 ft.)
- Split pairs detection: minimum 1m (3ft.)
- Tone generator: 1kHz
- Operating temp. : 0°C to 50°C (–22°F to 122°F)
- Storage temp. : – 30°C to 50°C (–22°F to 122°F)
- Humidity: 10% to 90%
- Master Dimensions: 110 x 78 x 31mm
- Remote Dimensions: 44 x 32 x 28.5mm
- Weight: 115g
- Battery: 6V; 4 x AAA Alkaline batteries
