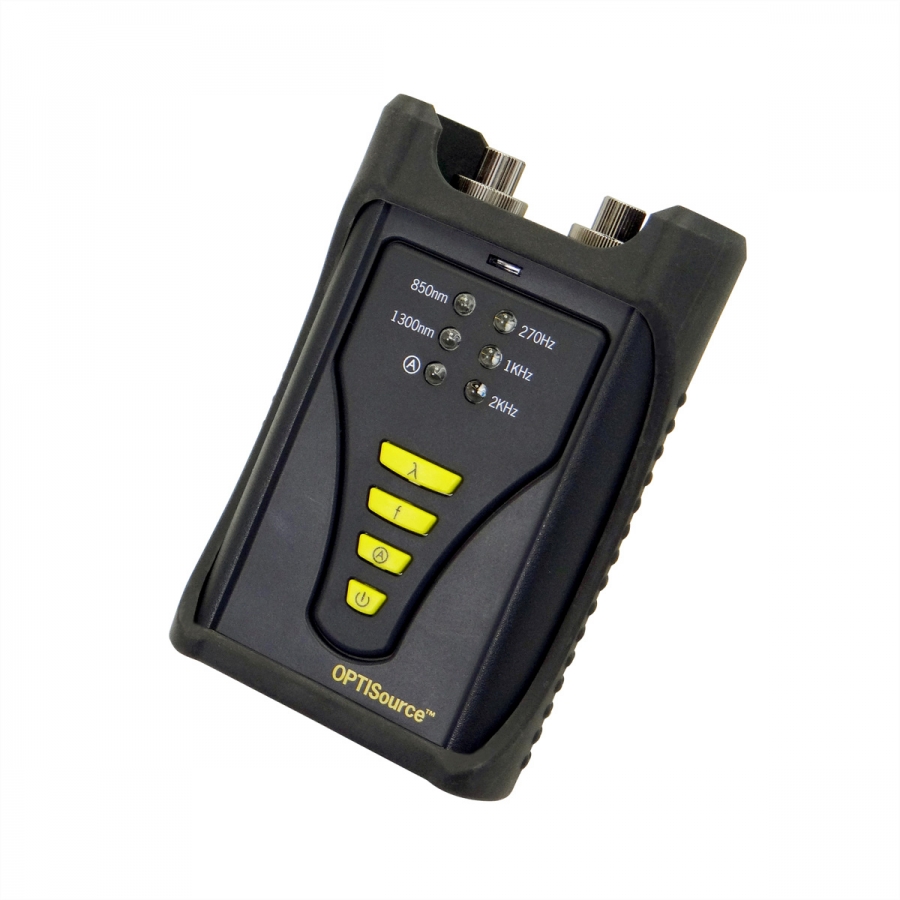

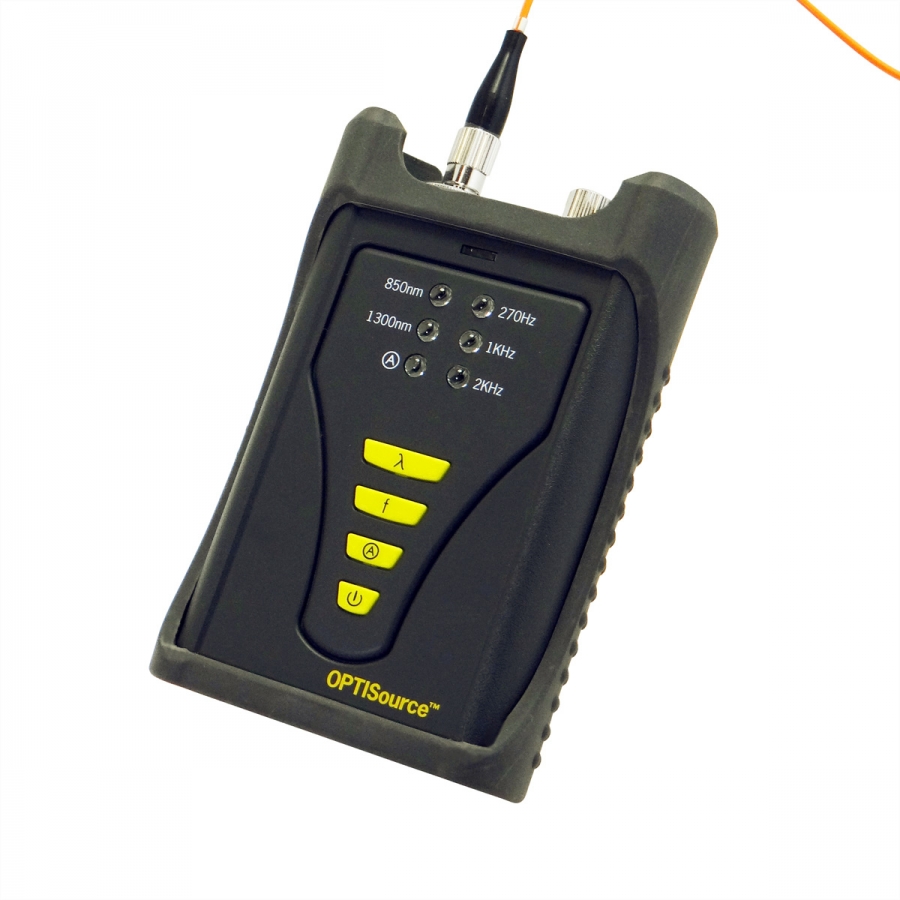

HOBBES OPTISource 850-1300 nm

The OPTISource is a high performance stabilized source that is widely used in fiber network installation and maintenance. New version of OPTISource can provide the single wavelength output according to specific requirements including 1310/1490/1550/1625nm wavelength for the single–mode and 850/1300nm wavelength for the multi–mode. With replaceable FC, SC, ST connectors and Hobbes’ power meter (SMARTFiber or SMARTFiber Pro), this choice brings you an economic and efficient solution for the fiber optic network tasks.

• There are three output modes for each wavelength: CW/MOD/AUTO–IDENTIFY
• CW and 270Hz, 1kHz, 2kHz modulated signals
• Auto–identify wavelength indicator (Full compatibility with Hobbes Optical Power Meter to be use as a complete set)
• LED indicators
• Auto power off for power saving

SPECIFICATIONS

- Wavelength: 850–1300nm
- Spectral width: ≤5nm
- Output power: ≥–13dBm@850/1300nm
- Stability: ±0.25dB/8hr@850nm/1300nm

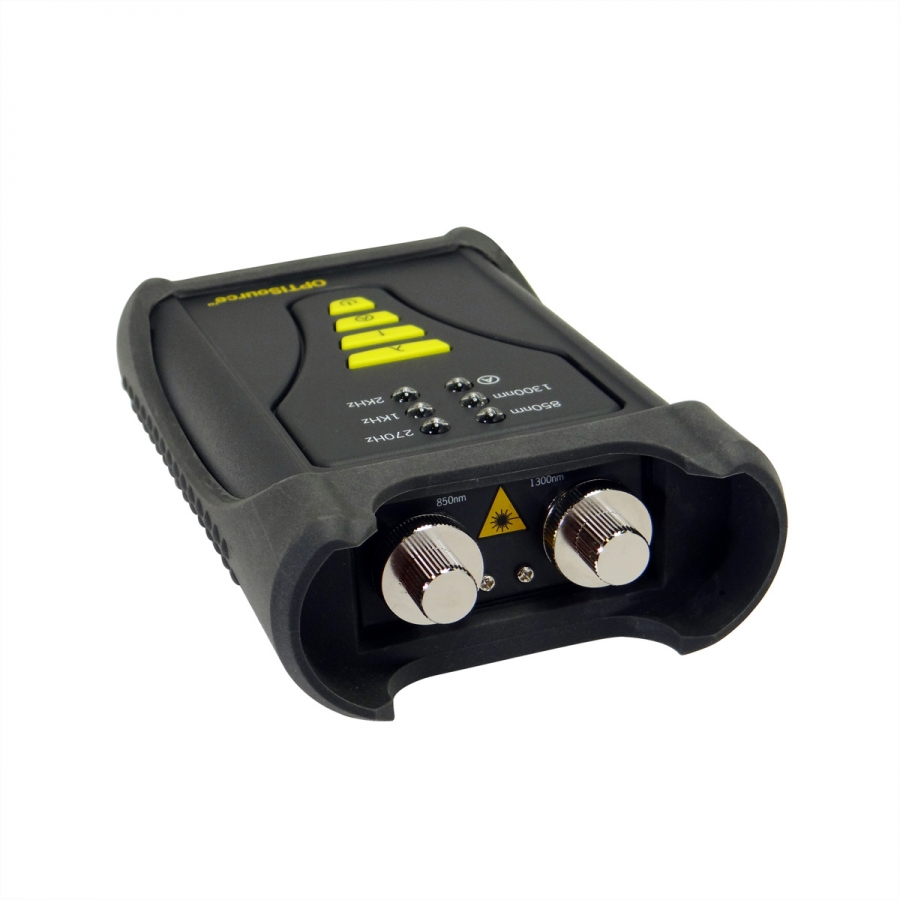

- Connector type: With replaceable FC, SC, ST connectors
- Auto power off: 30 min. without key pressed
- Frequency: 270Hz, 1kHz, 2kHz
- Battery: 4 x AAA
- Dimensions: 125 x 78 x 31mm
- Weight: 145g
