Delock Power Socket with a Side Grounding Contact for DIN Rail

DELOCK

11469

Jauns

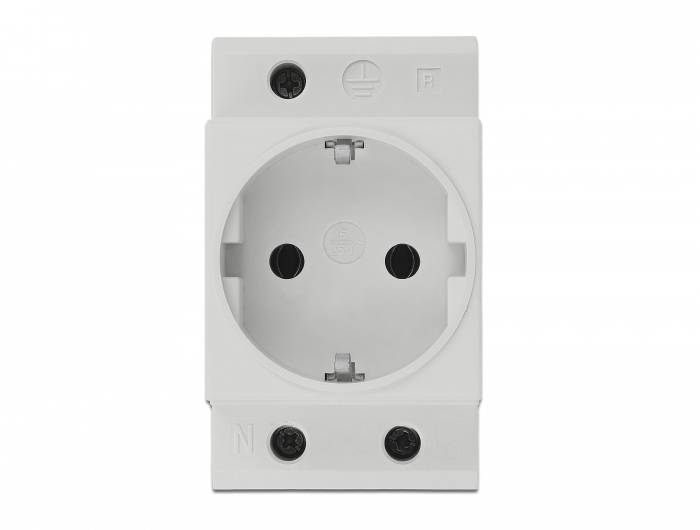

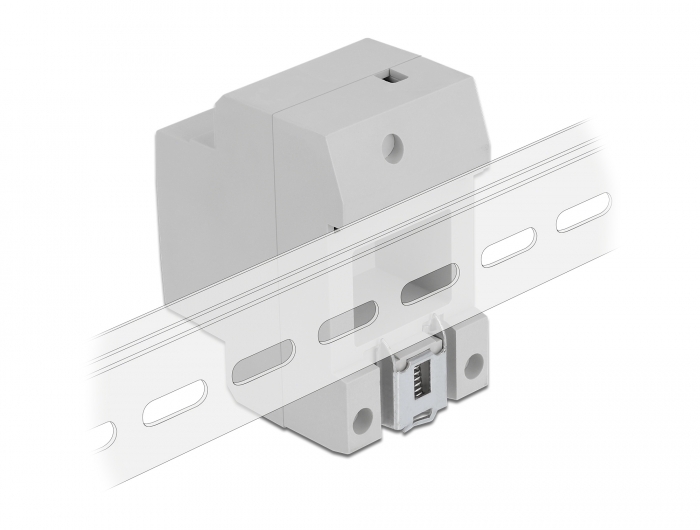

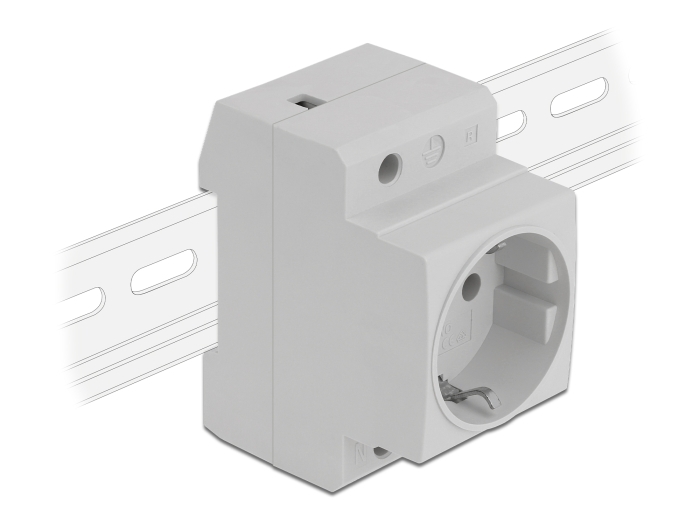

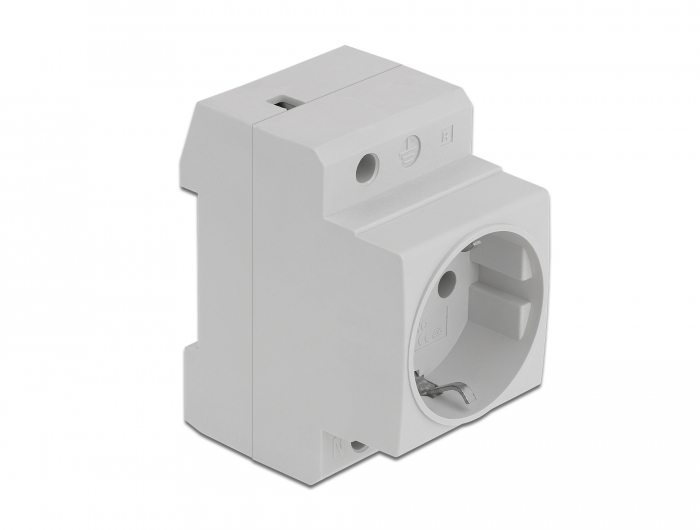

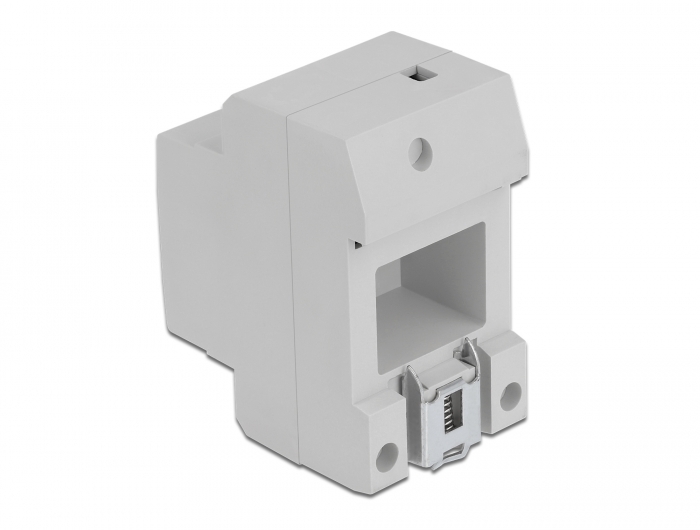

This power socket according to DIN VDE 0620 by Delock is designed for mounting on a 35 mm DIN rail. The socket can be used to add a CEE 7/3 power connection in a switch cabinet or similar. The bracket on the rear allows easy mounting on a 35 mm mounting rail.
System requirements:
• Mains supply with grounding
• 35 mm DIN rail
Specification:
• Connectors:
  1 x socket CEE 7/3
  3 x screw terminal for PE, N, L
• Robust plastic housing
• Rated current: 16 A / 250 V~
• Rated power: 4000 W
• Suitable for 35 mm DIN rail
• Dimensions (LxWxH): ca. 77 x 64 x 45 mm
• Colour: light grey
Package content:
• Power socket
• User manual
Data sheet:
http://www.delock.de/produkt/11469/pdf.html?sprache=en
