Delock Optical Fiber Connection Box for DIN Rail 4 x SC Simplex or LC Duplex

DELOCK

85921

Jauns

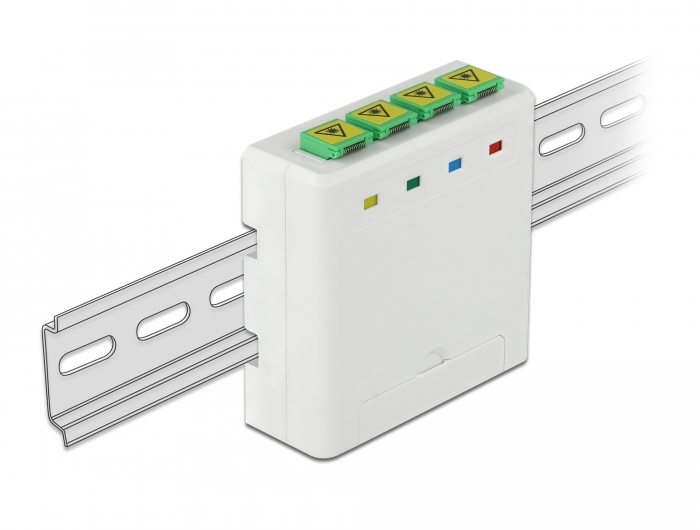

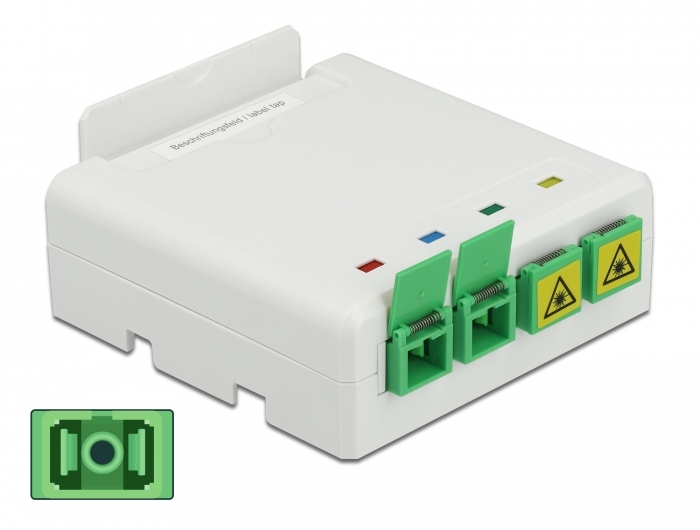

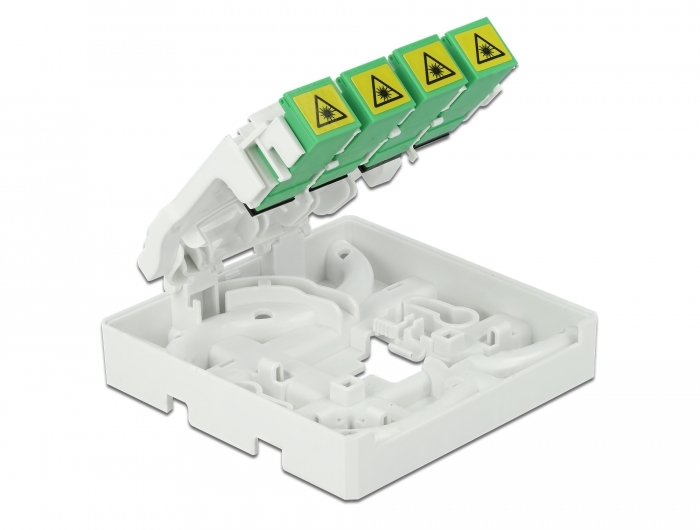

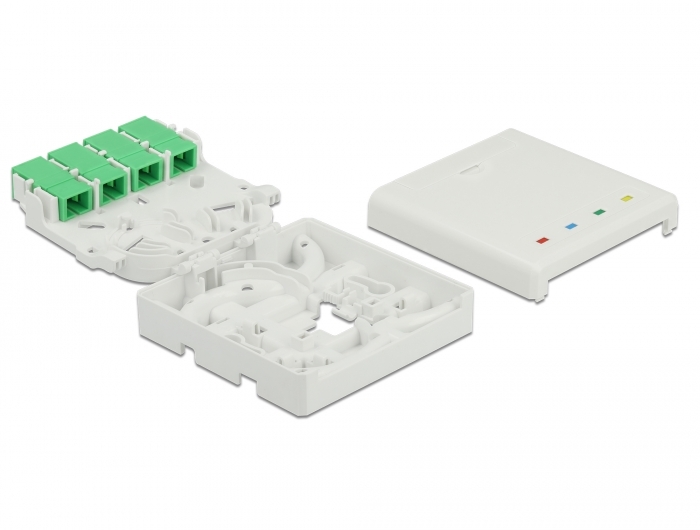

This fiber optical junction box by Delock can accommodate up to four SC Simplex or LC Duplex fiber optical cables. The connection box has mounting openings for fastening to flush-mounted and cavity wall boxes. The integrated clips allow the mounting on 35 mm DIN rails horizontally and vertically.
Specification:
• Optical fiber connection box for FTTH applications
• 4 slots for SC Simplex or LC Duplex couplings
• DIN rail mounting: 35 mm
• Wall mounting:
  2 x mounting holes
  Mounting hole diameter: 7 mm
  Pitch of screw hole: ca. 60 mm
• Cover with label tap
• Protective flip
• Colour: white
• Material: ABS
• Dimensions (LxWxH): ca. 80 x 80 x 29 mm

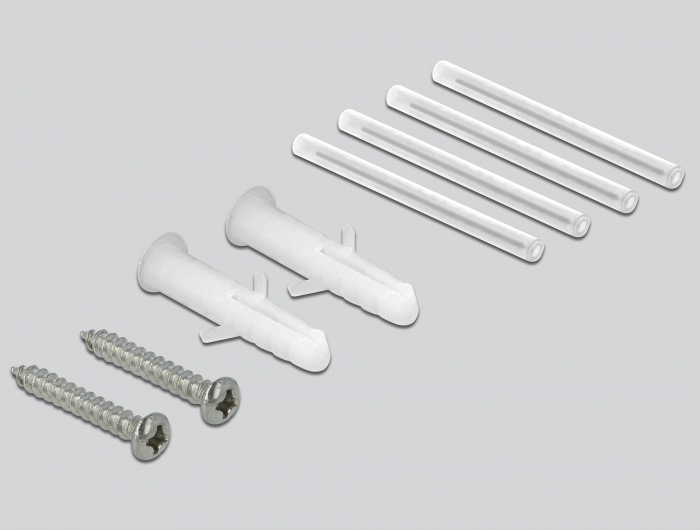

Package content:
• Optical fiber connection box
• 4 x SC Simplex coupler with laser protection flip
• 4 x Heat shrink tube
• 2 x screw
• 2 x dowel
Data sheet:
http://www.delock.de/produkt/85921/pdf.html?sprache=en
