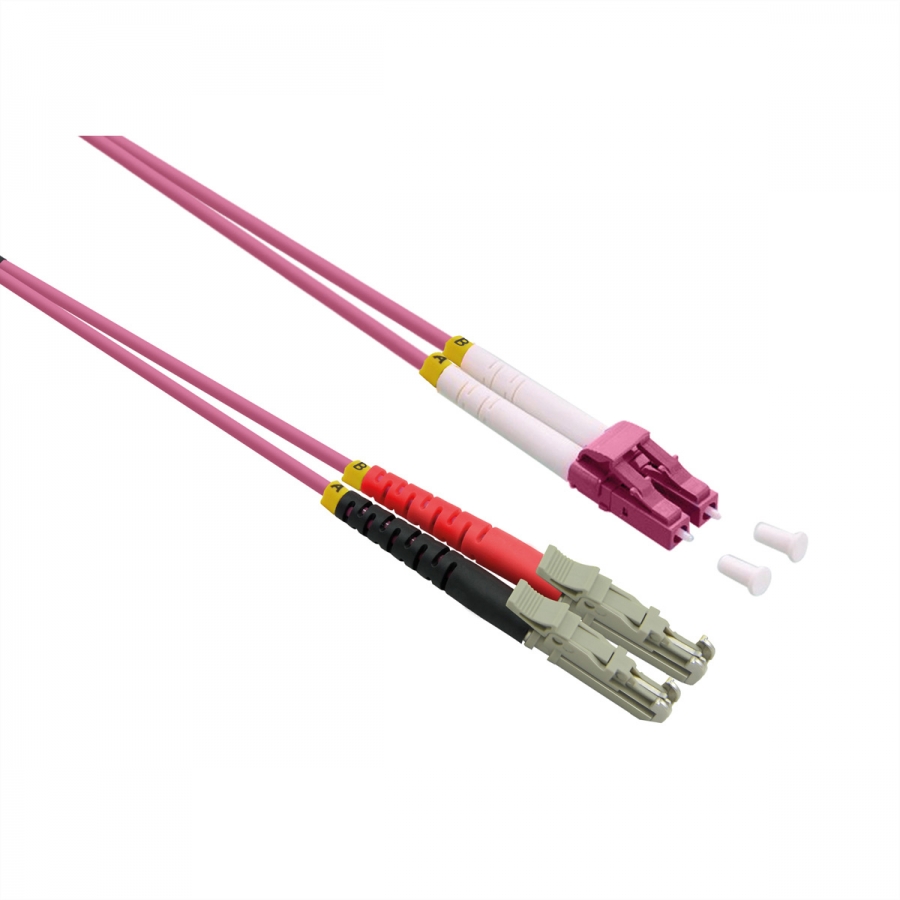

ROLINE FO Jumper Cable 50/125µm OM4, LSH/LC, UPC Polish, LSOH, violet, 0.5 m

ROLINE

21.15.9470

Jauns

High-quality fibre optic cables with the high protective, secured LSH connection on one side and LC plug on the other side - both connections are UPC polished.

  • Duplex cable with 50/125µm OM4 fibre type
  • Cable material: sheath halogen-free and flame-retardant, violet
  • LC connector: plug with high mechanical load capacity, push-pull latched with anti-rotation device, ceramic ferrule
  • LSH connector: precisely manufactured connector with low return loss, ceramic ferrule
  • UPC Polish (Ultra Physical Contact)
  • IL < 0.25dB, RL > 25dB
  • IL (typical) < 0.12dB
  • Cable OD (outer diameter): 3.0 x 6.0mm



ManufacturerROLINE
Product groupFibre optic cable
Product typeFibre Optic Jumper Cables OM4
Colourviolet
Length0.5 m
Quantity of fibre2
Cable typeDuplex Cable
External cable
Fibre section50/125µm OM4
Connection portsLSH / LC
Side 1 Connector TypeLSH
Side 2 Connector TypeLC
Kevlar strain relief
Cable LSOH
Current catalog editionC19-01.44
