Neomounts by Newstar TIS 17"-27" 1TFT 3Gelenk schw. Max.7kg

NEOMOUNTS BY NEWSTAR

DS70-700BL1

Jauns

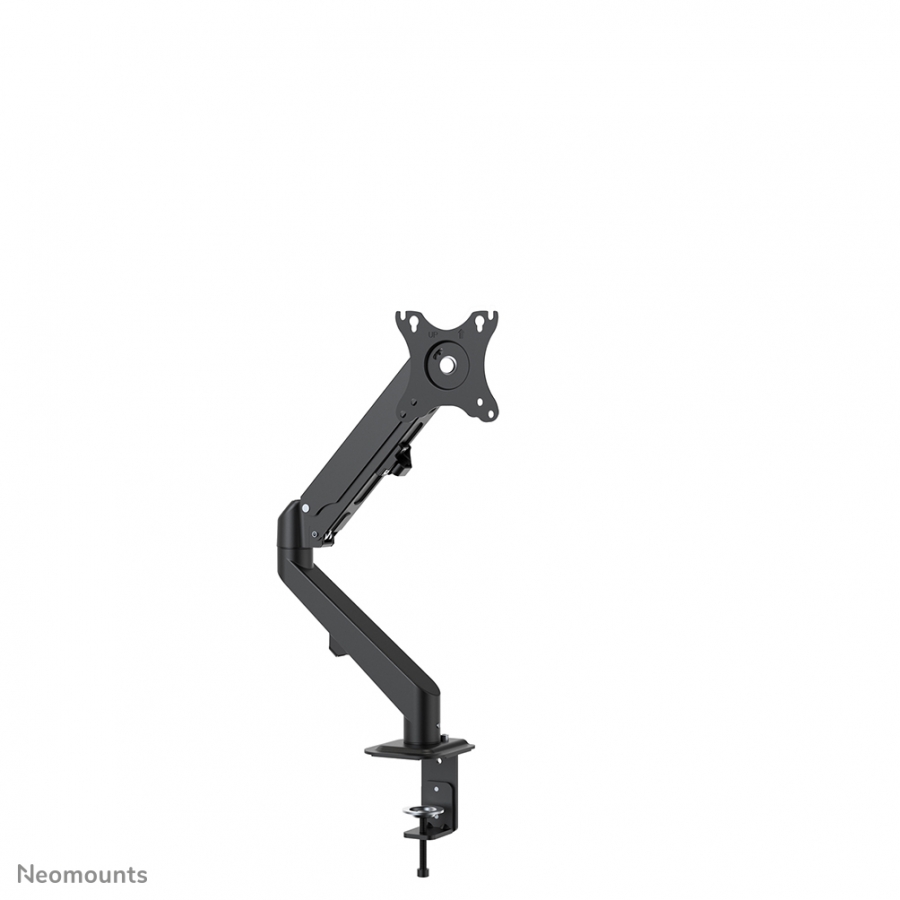

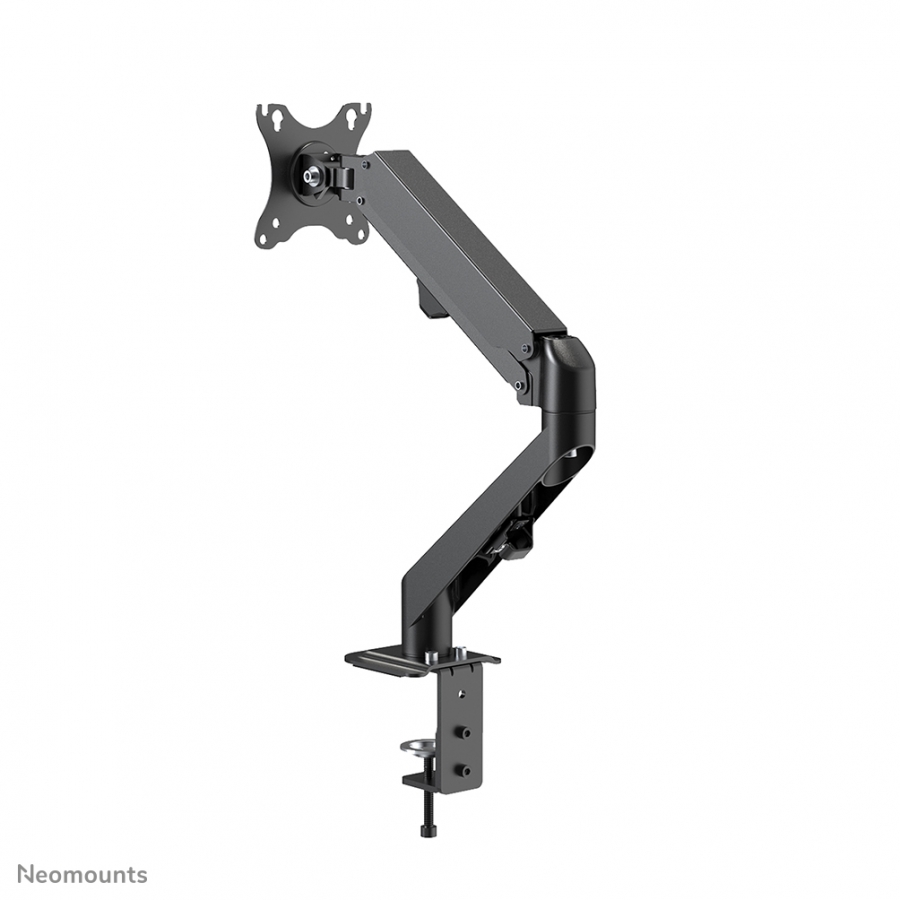

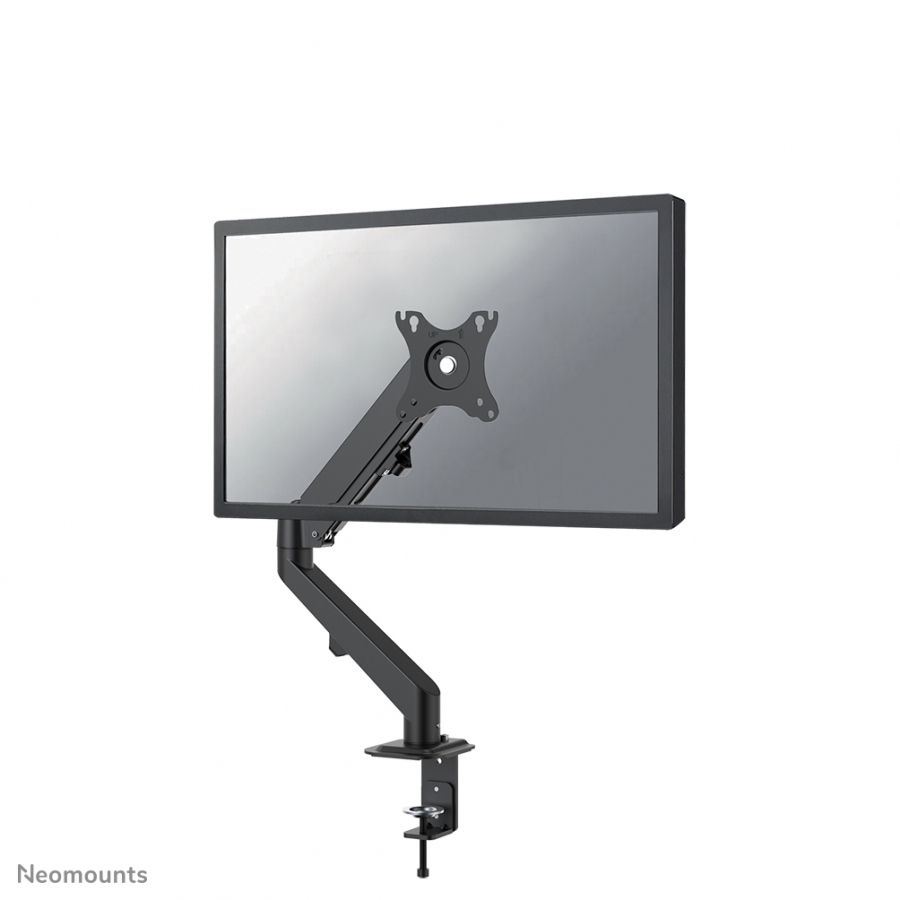

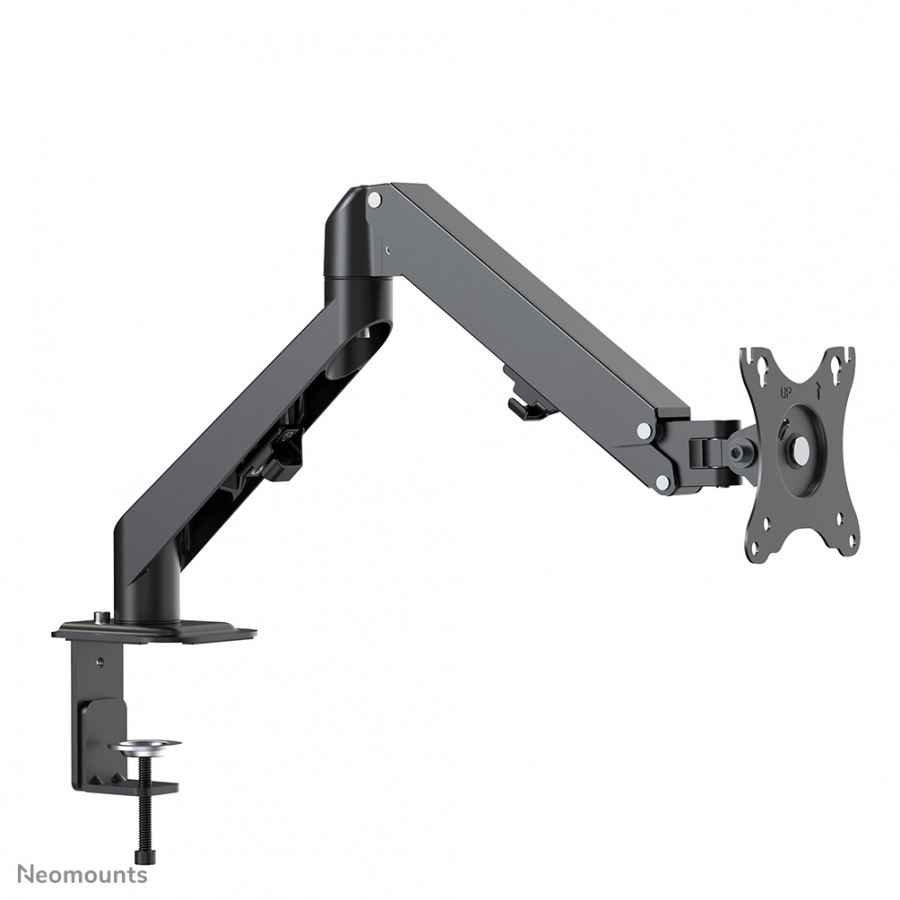

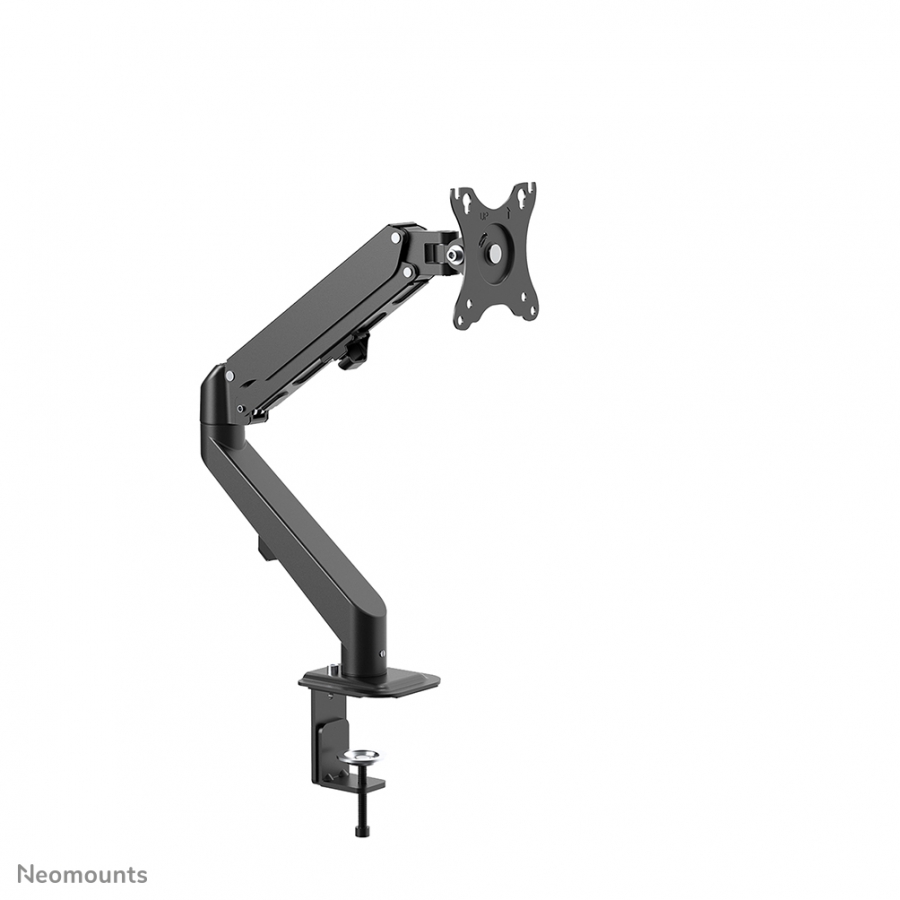

The Neomounts by Newstar DS70-700BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position.The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates.

Maximum weight capacity7 kg
Maximum screen size68.6 cm (27")
Mounting typeDesk
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported1
MountingClamp
Panel mounting interface75 x 75,100 x 100 mm
Height adjustmentY
Height adjustment typeGas spring
Height adjustment range152 - 402 mm
Adjustable depthY
Depth adjustment range0 - 480 mm
Tilt angle range-45 - 90°
Swivel angle range-90 - 90°
Angle of rotation180°
Cable managementY
RotatingY
Tilt adjustmentY
Product colourBlack
OrientationLandscape/Portrait
Width117 mm
Depth542 mm
Height566 mm
Package width405 mm
Package depth270 mm
Package height90 mm
Quantity per pack1 pc(s)
Master (outer) case width405 mm
Master (outer) case length270 mm
Master (outer) case height90 mm
Products per master (outer) case1 pc(s)
Master (outer) case net weight2.1 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)135 pc(s)
Country of originChina
Package net weight2.5 kg
