Neomounts by Newstar TIS 17"-32" 2TFT 3Gelenk schw. Max.9kg

NEOMOUNTS BY NEWSTAR

DS70-810BL2

Jauns

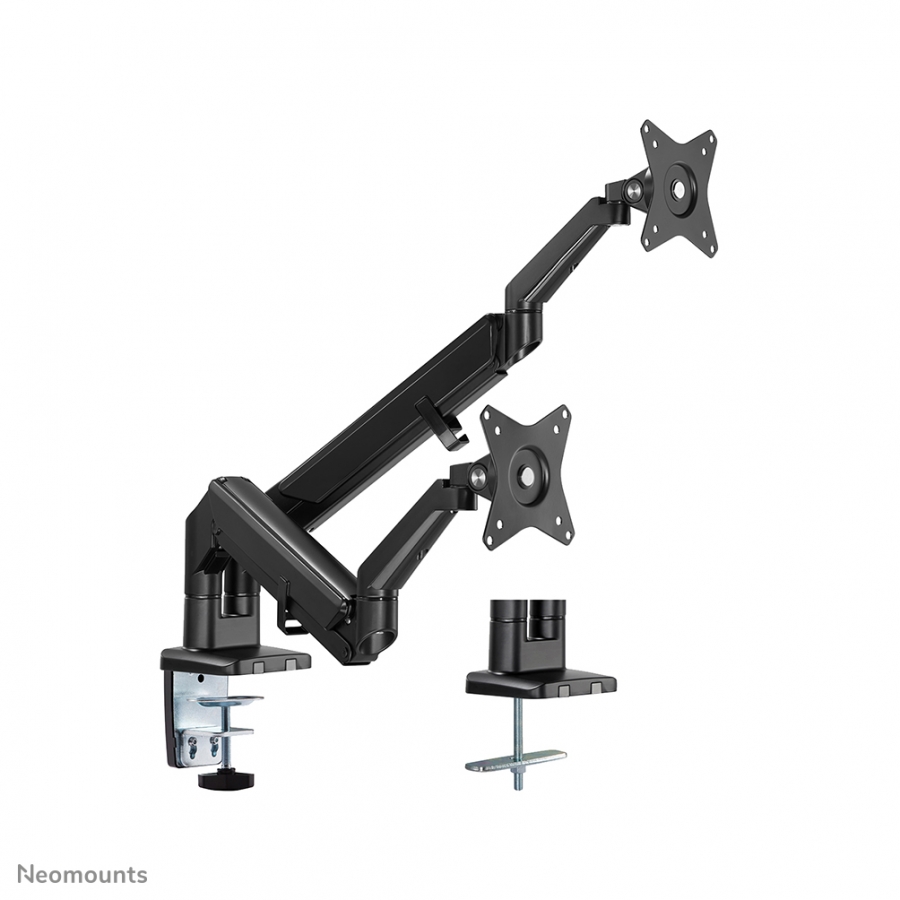

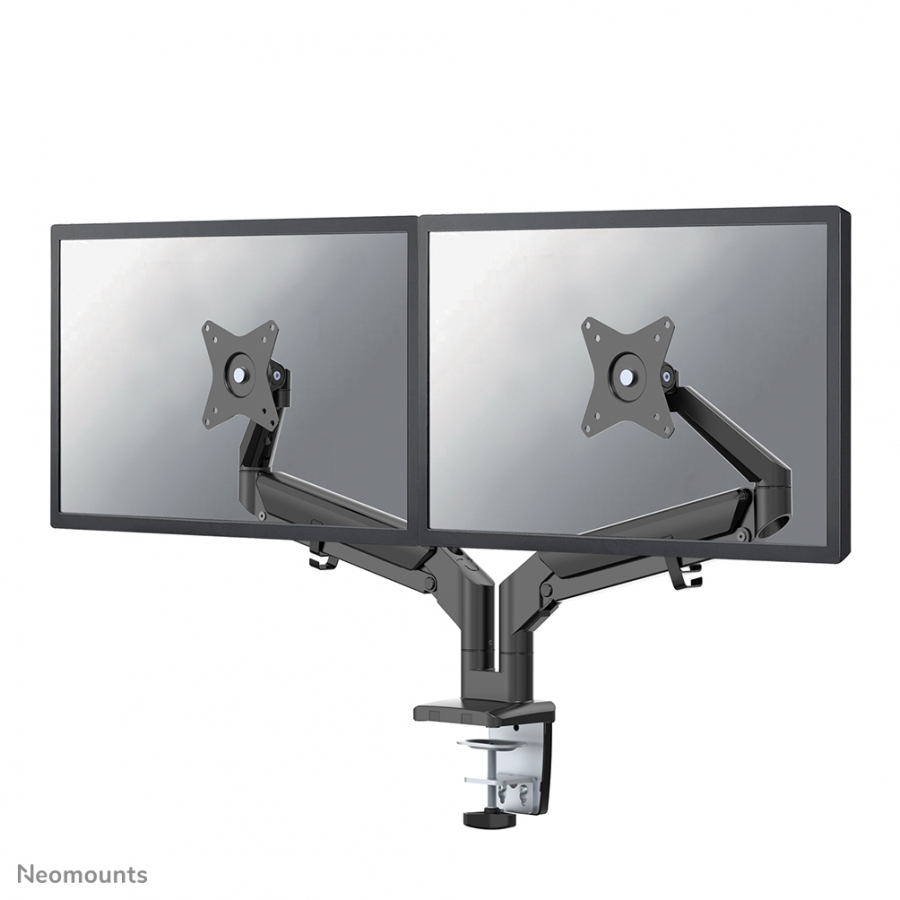

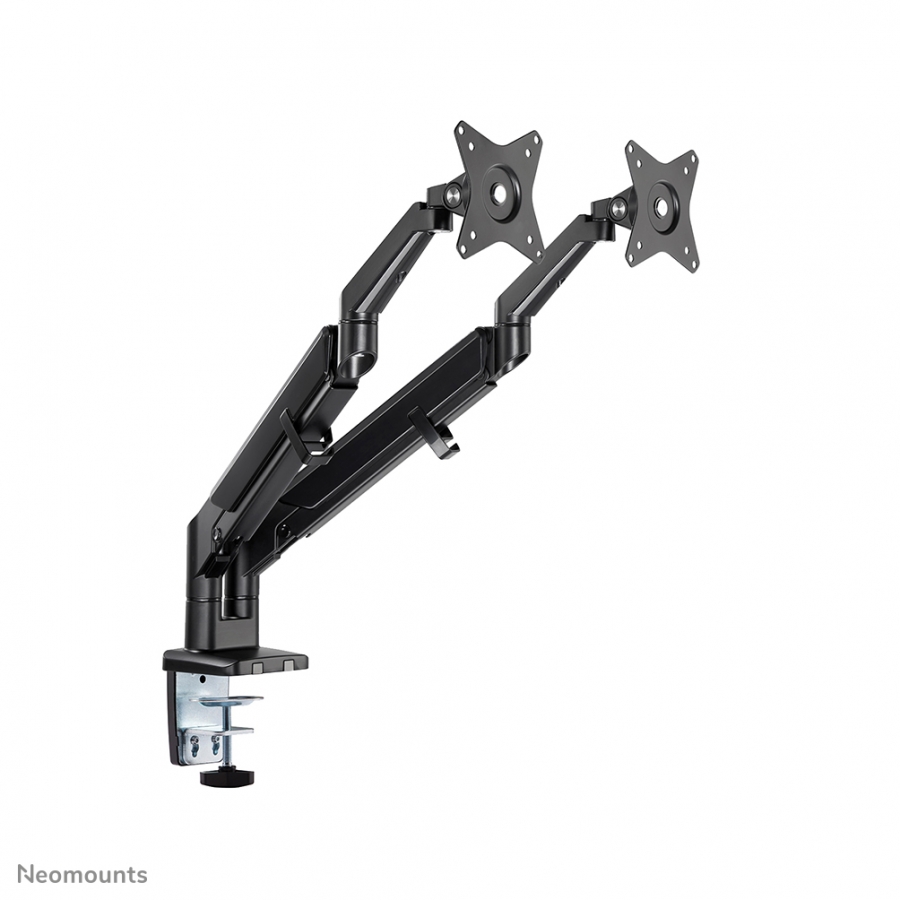

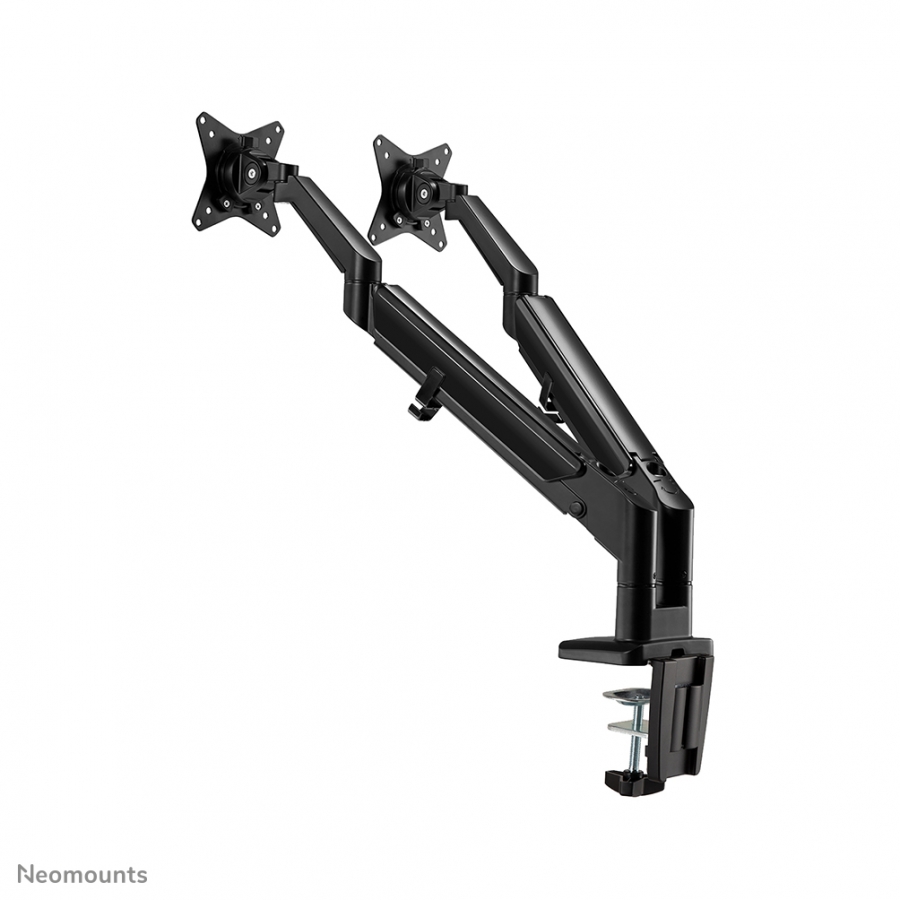

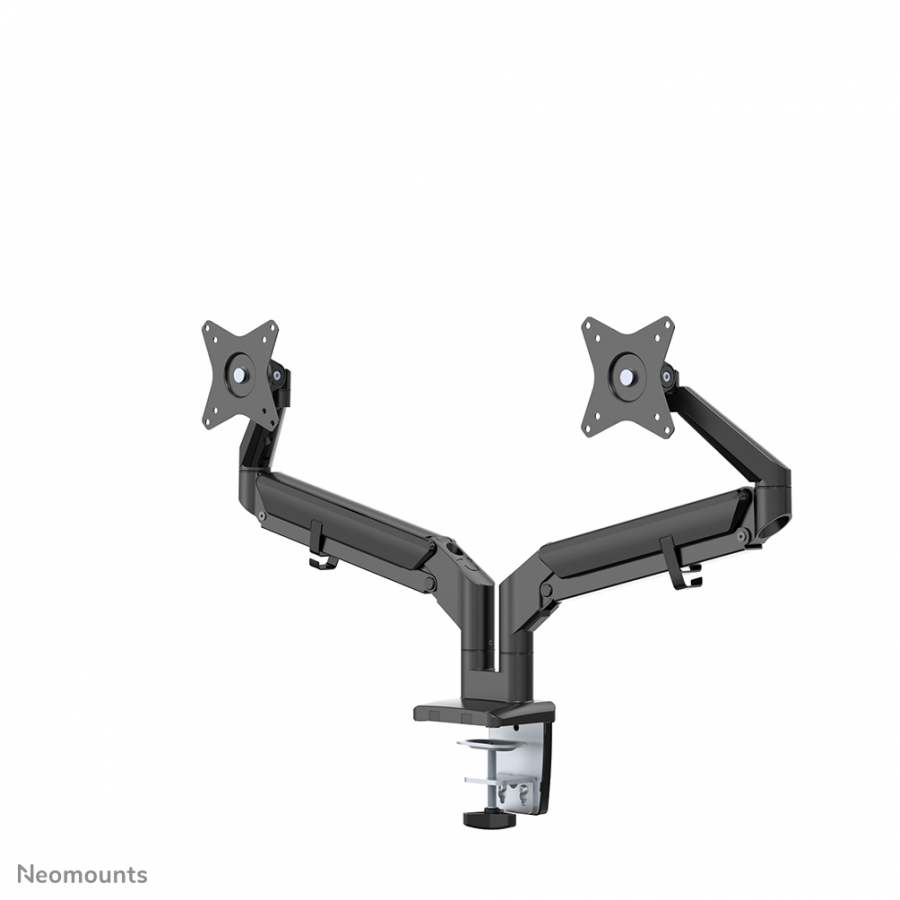

The Neomounts by Newstar DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.

Maximum weight capacity9 kg
Maximum screen size81.3 cm (32")
Mounting typeDesk
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported2
Maximum weight capacity (per display)9 kg
MountingClamp/Bolt-through
Panel mounting interface100 x 100 mm
Height adjustmentY
Height adjustment typeGas spring
Height adjustment range265 - 550 mm
Adjustable depthY
Depth adjustment range0 - 490 mm
Tilt angle range-45 - 45°
Swivel angle range-90 - 90°
Angle of rotation180°
Cable managementY
RotatingY
Tilt adjustmentY
Product colourBlack
OrientationLandscape/Portrait
Width117 mm
Depth555 mm
Height615 mm
Package width265 mm
Package depth142 mm
Package height395 mm
Quantity per pack1 pc(s)
Master (outer) case width550 mm
Master (outer) case length410 mm
Master (outer) case height305 mm
Products per master (outer) case4 pc(s)
Master (outer) case net weight21 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)72 pc(s)
Country of originChina
Package net weight6 kg
