Neomounts by Newstar TIS 17"-42" 1TFT 3Gelenk schw. Max.15K

NEOMOUNTS BY NEWSTAR

DS70-450BL1

Jauns

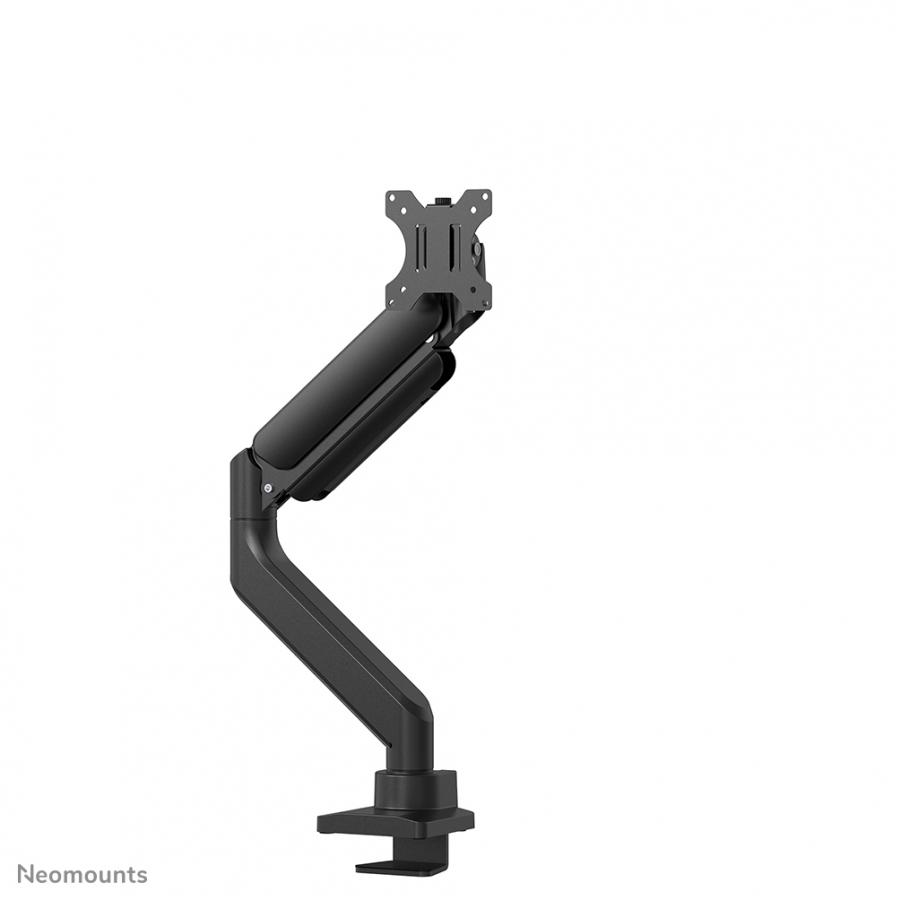

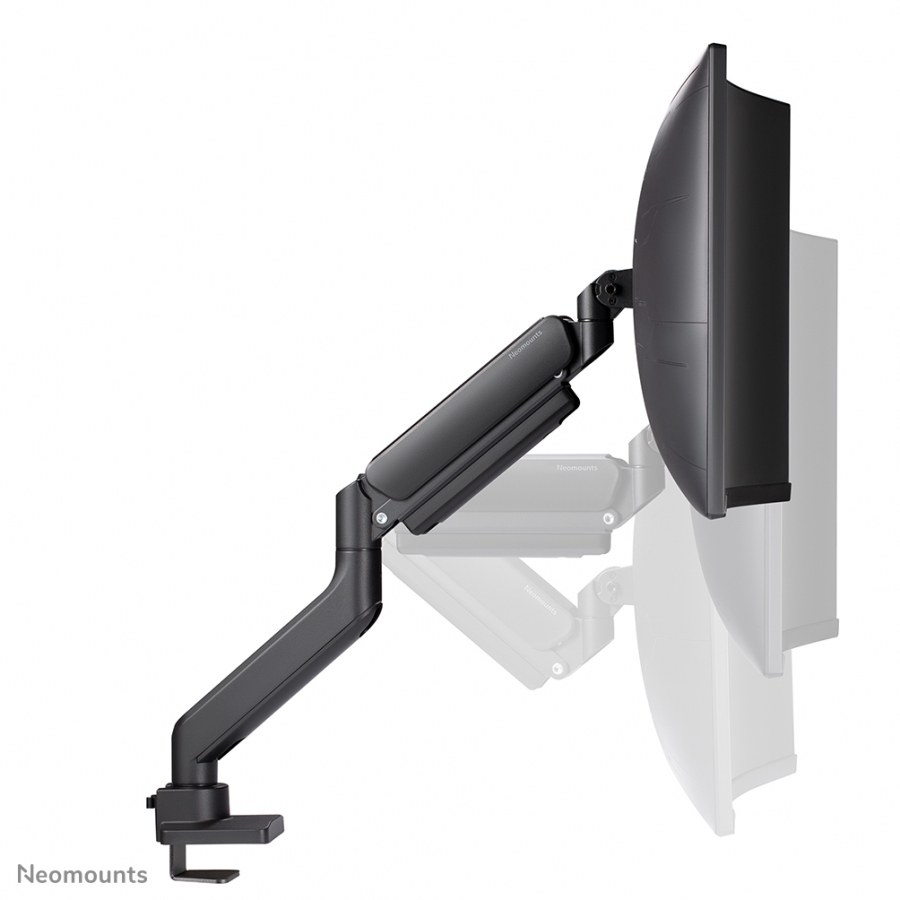

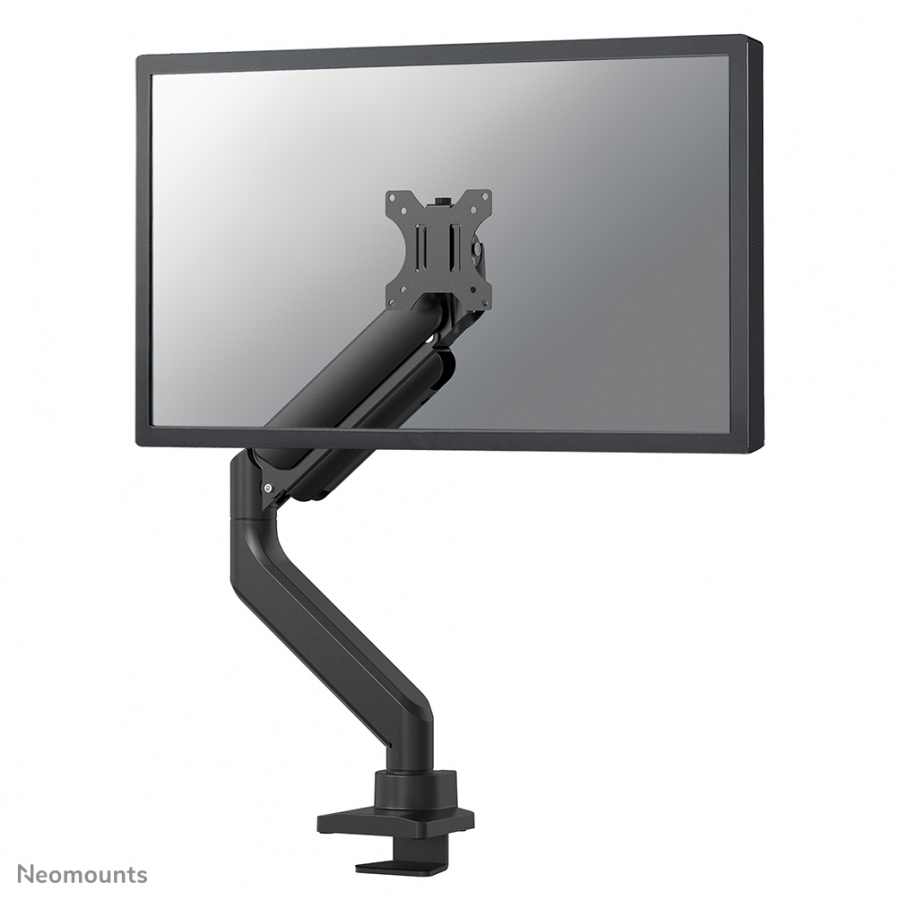

The Neomounts by Newstar DS70-450BL1 is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position. The DS70-450BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.The inner packaging of the DS70-450BL1 desk mount is plastic free and made from cardboard and paper.

Maximum weight capacity15 kg
Maximum screen size106.7 cm (42")
Mounting typeDesk
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported1
MountingClamp/Bolt-through
Panel mounting interface100 x 100 mm
Distance to the wall (min)10.8 cm
Distance to the wall (max)56.8 cm
Height adjustmentY
Height adjustment typeGas spring
Height adjustment range261 - 550 mm
Adjustable depthY
Depth adjustment range0 - 514 mm
Tilt angle range-35 - 45°
Swivel angle180°
Swivel angle range-90 - 90°
Angle of rotation360°
Cable managementY
RotatingY
Tilt adjustmentY
Product colourBlack
Doesn't containPlastic
Warranty period5 year(s)
Width120 mm
Depth568 mm
Height653 mm
Package width280 mm
Package depth127 mm
Package height445 mm
Mounting kitY
Master (outer) case width460 mm
Master (outer) case length275 mm
Master (outer) case height580 mm
Products per master (outer) case4 pc(s)
Master (outer) case net weight18.4 kg
Harmonized System (HS) code7326909890
Products per pallet (EU)64 pc(s)
Country of originChina
Package net weight5.4 kg
