Neomounts by Newstar TIS 17"-35" 2TFT 2Gelenke schw. Max.15K

NEOMOUNTS BY NEWSTAR

DS70S-950BL2

Jauns

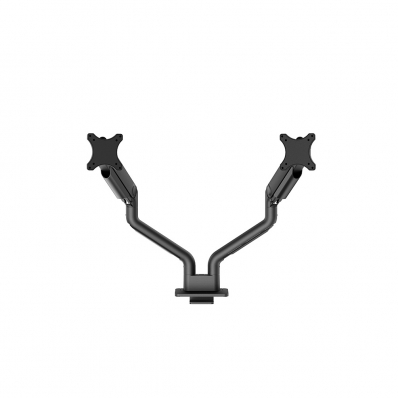

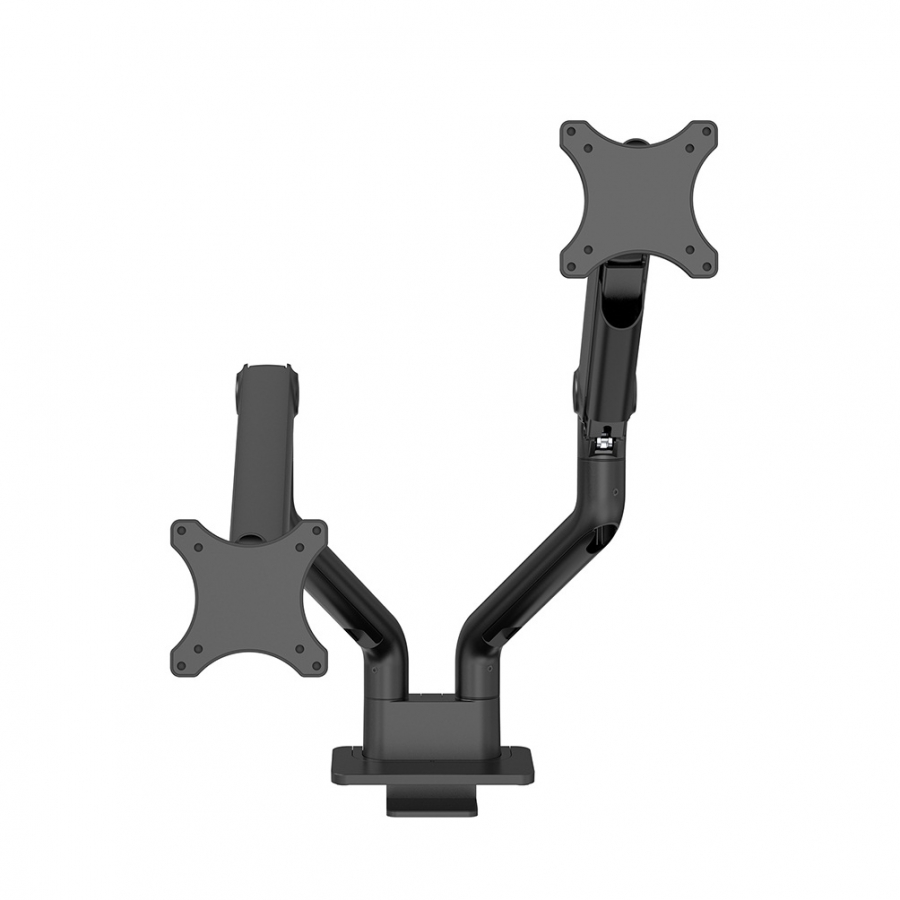

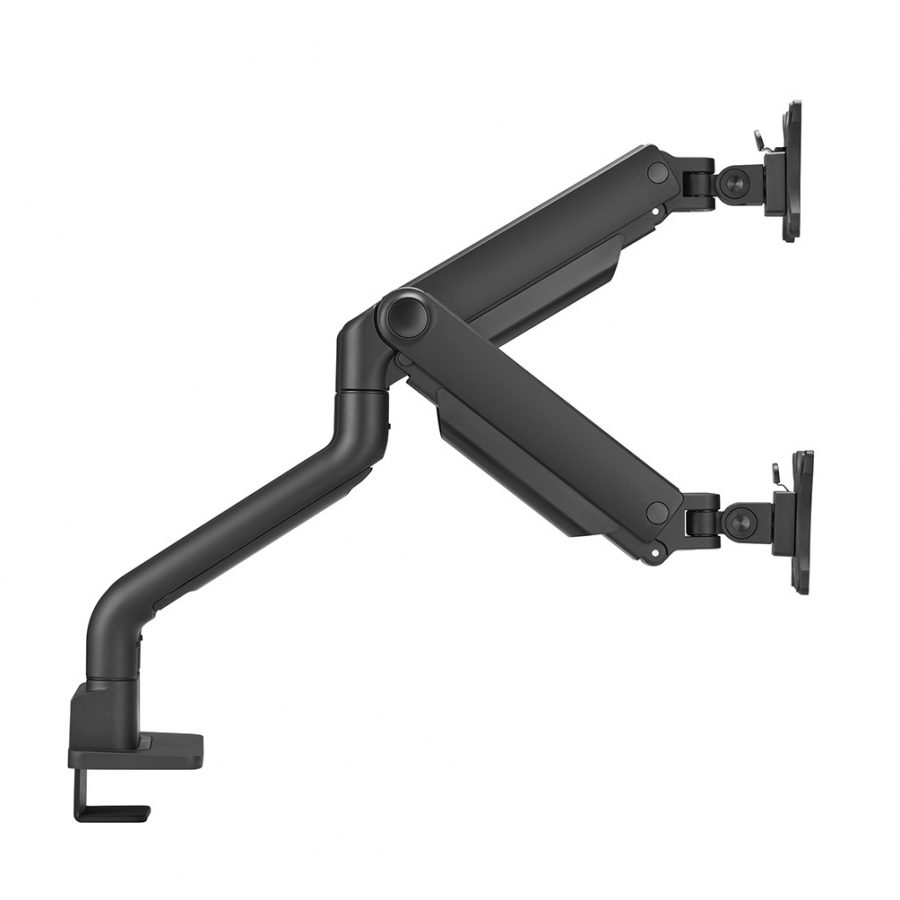

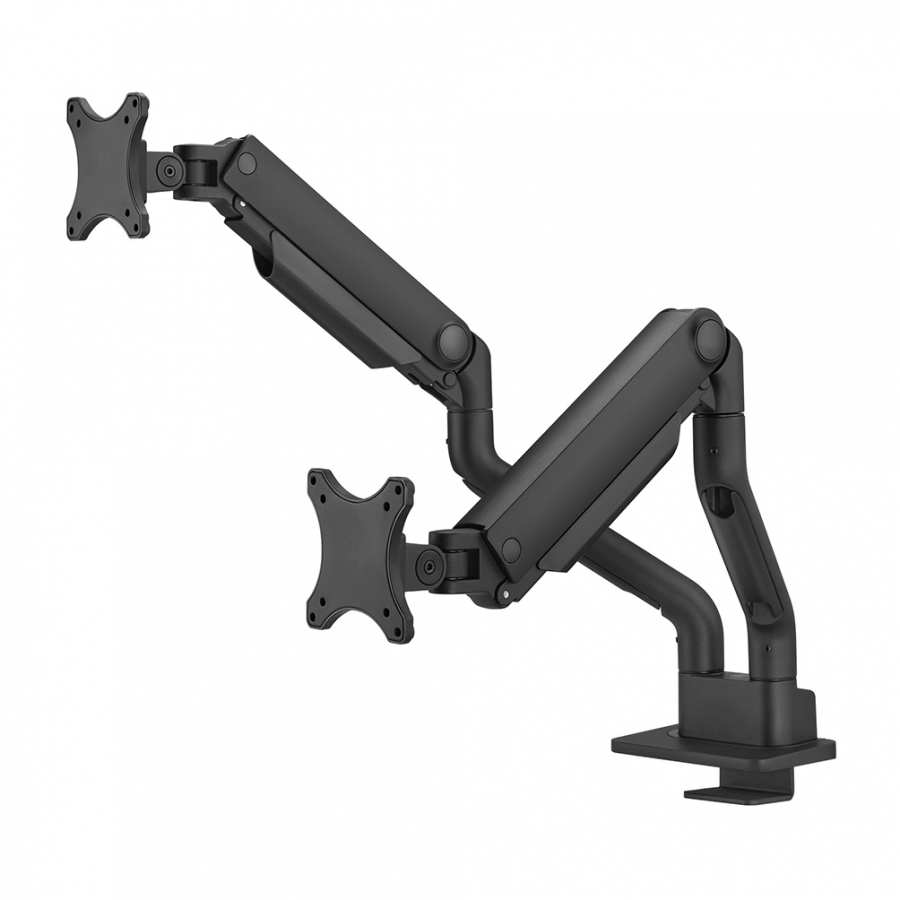

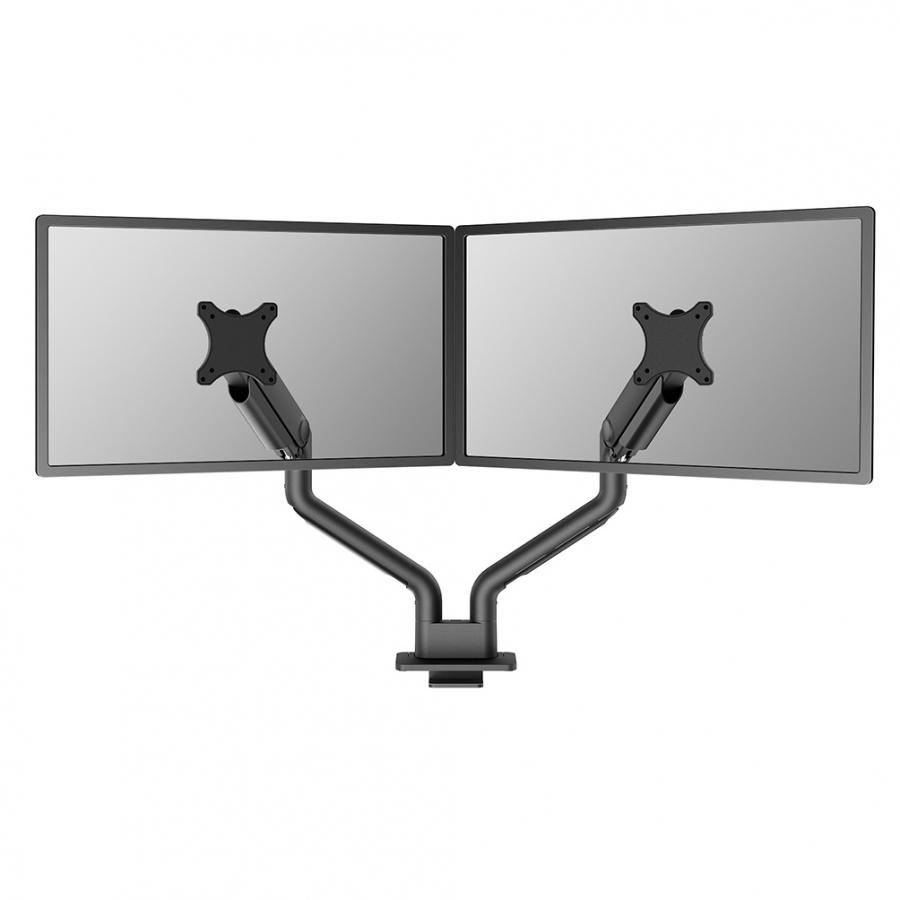

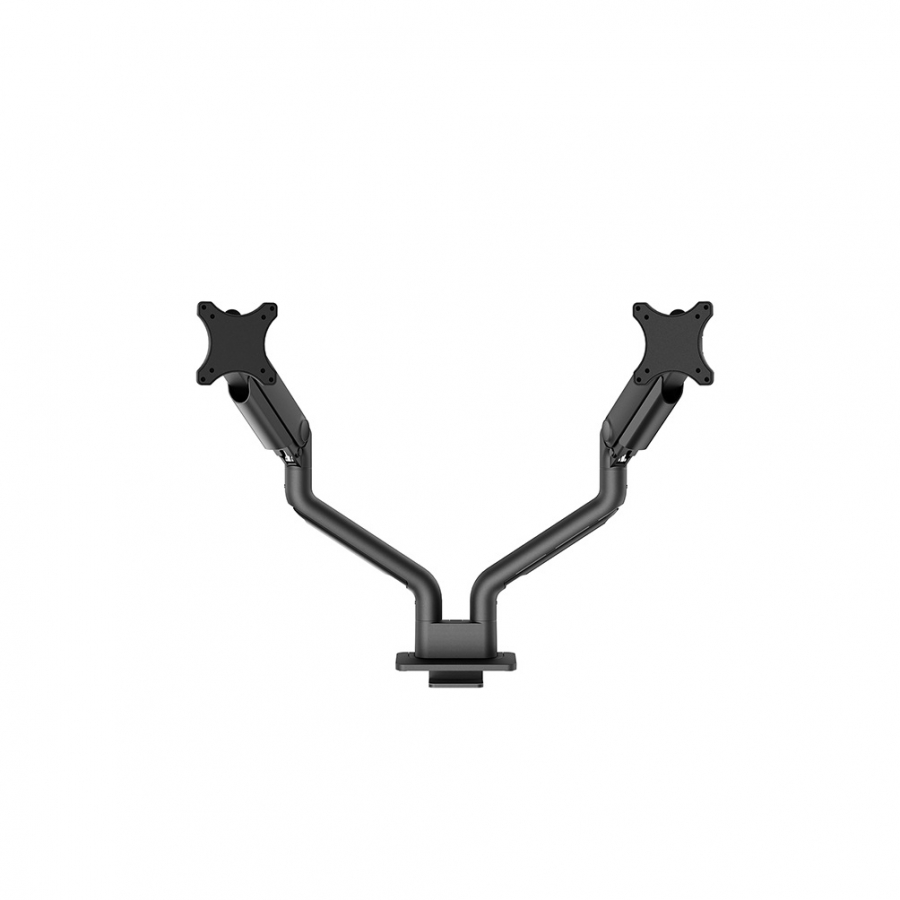

The Neomounts DS70S-950BL2 NEXT One is a full motion desk mount for two screens up to 35". The DS70S-950BL2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

The DS70S-950BL2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS70S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

Maximum weight capacity18 kg
Maximum screen size88.9 cm (35")
Mounting typeDesk
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported2
MountingClamp/Grommet
Panel mounting interface75 x 75,100 x 100 mm
Clamp mount desk thickness (max)5 cm
Grommet mount desk thickness (max)5.5 cm
Distance to the wall (min)11.9 cm
Distance to the wall (max)65.6 cm
Height adjustmentJā
Height adjustment typeGas spring
Height adjustment range20.2 - 52.2 mm
Adjustable depthJā
Depth adjustment range8.8 - 62.5 mm
Tilt angle range-90 - 90°
SwivellingJā
Swivel angle range-90 - 90°
Angle of rotation180°
Number of arms2
Cable managementJā
RotatingJā
Tilt adjustmentJā
Product colourBlack
Housing materialAluminium
Easy to installJā
Warranty period10 year(s)
Width186 mm
Depth656 mm
Height521 mm
Package width410 mm
Package depth124 mm
Package height496 mm
Package typeBox
Master (outer) case width260 mm
Master (outer) case length320 mm
Master (outer) case height505 mm
Products per master (outer) case2 pc(s)
Master (outer) case net weight13.9 kg
Harmonized System (HS) codeHS7326909890
Products per pallet (EU)48 pc(s)
Country of originChina
Package net weight7.8 kg
