> >>>Neomounts by Newstar TIS 17"-49" 1TFT 1Gelenk weiß Max.18KG
Neomounts by Newstar TIS 17"-49" 1TFT 1Gelenk weiß Max.18KG
Previous Next

Neomounts by Newstar TIS 17"-49" 1TFT 1Gelenk weiß Max.18KG

NEOMOUNTS BY NEWSTAR

DS70PLUS-450WH1

Jauns

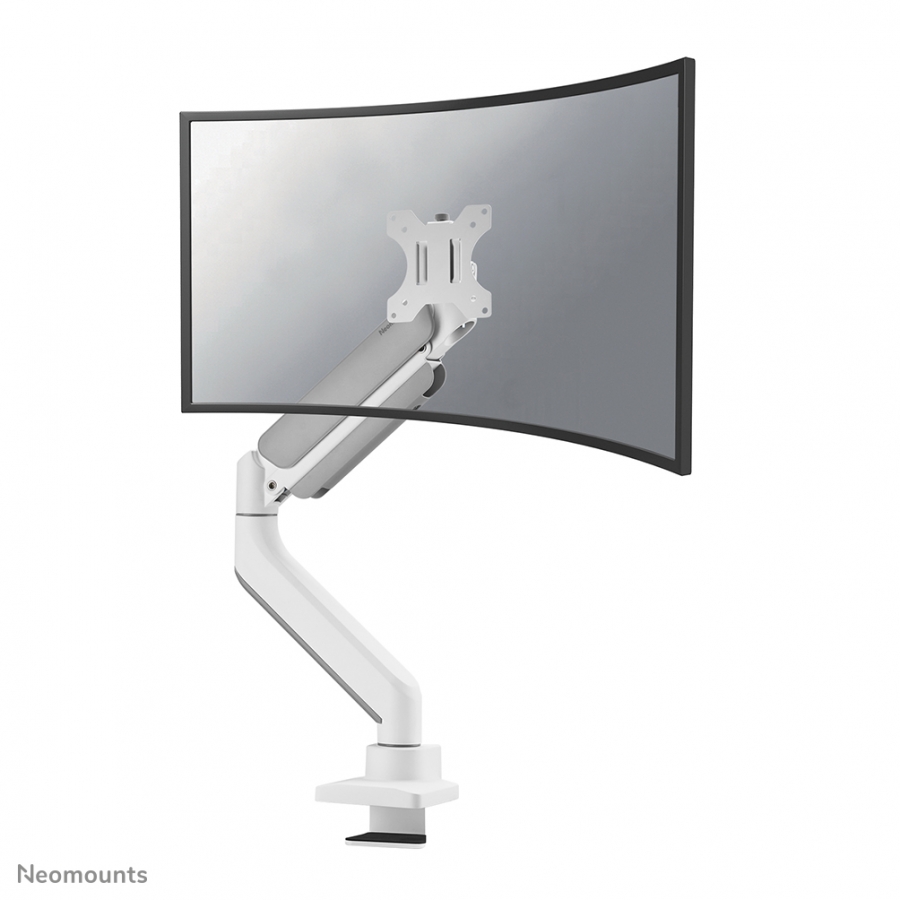

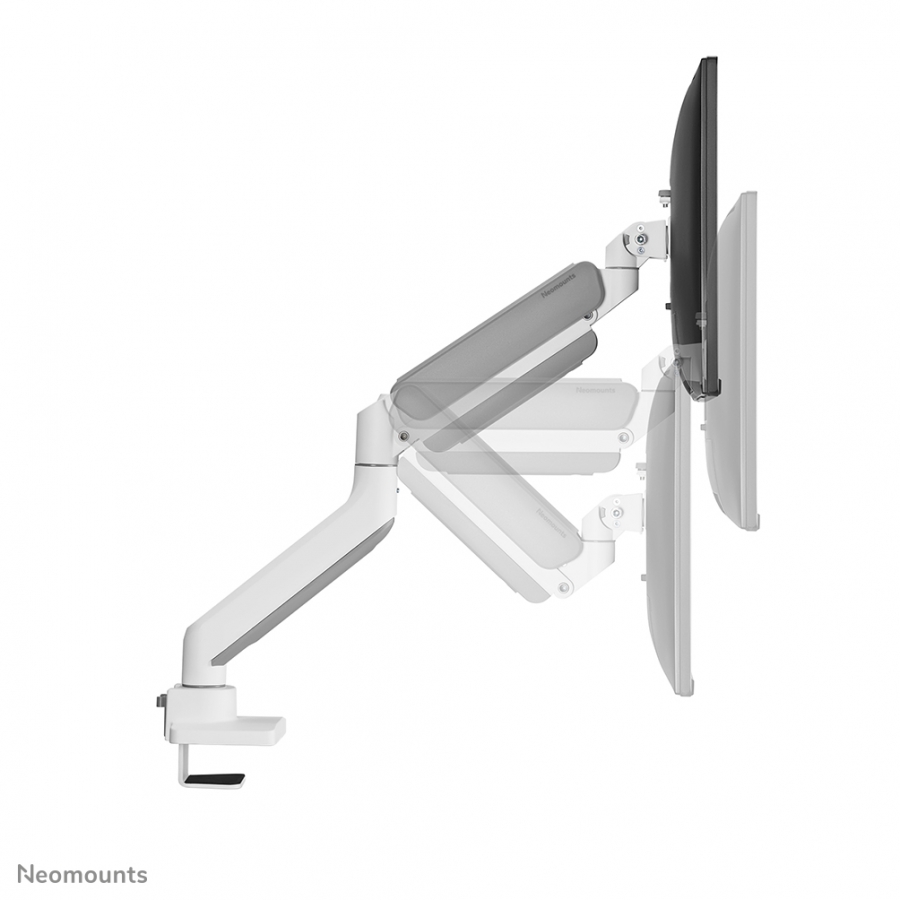

The Neomounts DS70PLUS-450WH1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.

The DS70PLUS-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The DS70PLUS-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.

For wall installation, the AWL75-450WH wall adapter is optionally available.

Maximum weight capacity18 kg
Maximum screen size124.5 cm (49")
Mounting typeDesk
Minimum screen size43.2 cm (17")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Number of displays supported1
MountingClamp/Grommet
Desk thickness (min)1 cm
Desk thickness (max)4.5 cm
Distance to the wall (min)10.8 cm
Distance to the wall (max)56.8 cm
Height adjustmentJā
Height adjustment typeGas spring
Height adjustment range261 - 555 mm
Adjustable depthJā
Depth adjustment range54 - 511 mm
Tilt angle range-45 - 45°
SwivellingJā
Swivel angle range-90 - 90°
Angle of rotation80°
Cable managementJā
RotatingJā
Product colourWhite
Housing materialSteel
Width120 mm
Depth568 mm
Height653 mm
Package width280 mm
Package depth127 mm
Package height445 mm
Package typeBox
Quantity per pack1 pc(s)
Master (outer) case width460 mm
Master (outer) case length275 mm
Master (outer) case height580 mm
Products per master (outer) case4 pc(s)
Master (outer) case net weight16 kg
Harmonized System (HS) codeHS7326909890
Products per pallet (EU)64 pc(s)
Country of originChina
Package net weight5.1 kg
