Equip Wandhalterung 37"-70"/45kg 1TFT 1Gelenk Push-In-Pop sw

EQUIP

650351

Jauns

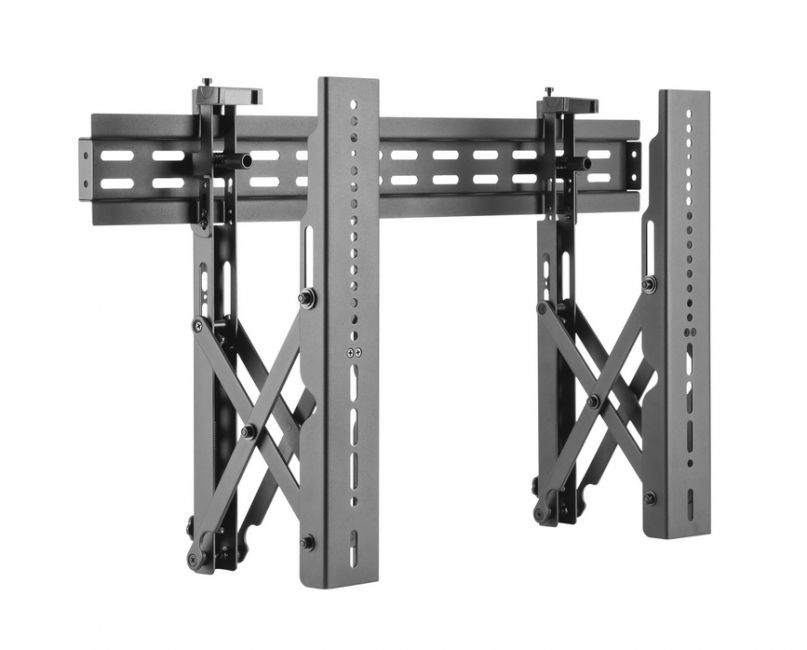

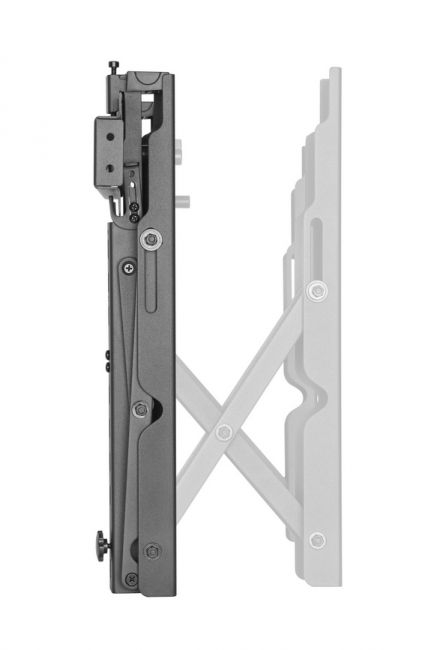

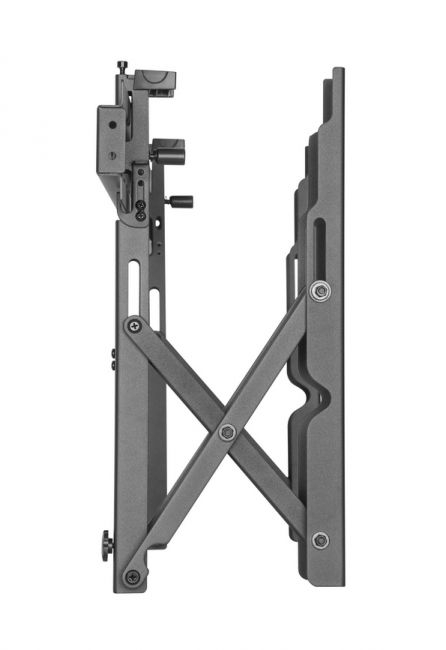

The equip® 650351 Pop-Out TV Video Wall Mount Bracket is a video wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. The Push-In Pop-out feature gives easy-access to any display for quick serviceability. This is one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Saving installation time and cost.

Maximum weight capacity45 kg
Maximum screen size177.8 cm (70")
Mounting typeWall
Minimum screen size94 cm (37")
Minimum VESA mount200 x 200 mm
Maximum VESA mount600 x 400 mm
Number of displays supported1
Suitable for TVY
Panel mounting interface200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Minimum distance to floor6.8 cm
Maximum distance to floor21.5 cm
Cable managementY
Product colourBlack
Housing materialMetal
Anti-theft functionY
Sustainability certificatesRoHS
Width465 mm
Depth215 mm
Height760 mm
Weight7.06 kg
Package width112 mm
Package depth102 mm
Package height980 mm
Package weight7.78 kg
Screws includedY
ManualY
Master (outer) case width330 mm
Master (outer) case length135 mm
Master (outer) case height1000 mm
Master (outer) case gross weight24.1 kg
Products per master (outer) case3 pc(s)
Harmonized System (HS) code85299097
