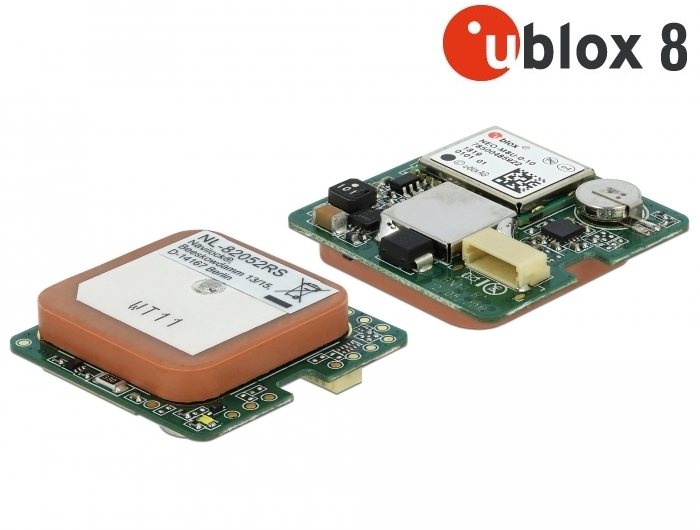

Navilock NL-82052RS Multi GNSS UDR u-blox NEO-M8U PPS engine module

Kods 62764

Condition: Jauns

Vairāk informācijas

GNSS modules are fully assembled receiver with patch antenna, backup battery etc .. This version uses RS-232. Several integrated sensors allow position determination without GNSS signals.

System requirements:
• Device with a free RS-232 connector

Specification:
• Connector: WTB serial RS-232
• u-blox NEO-M8U module
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602.5625 ~ 1615.5000 MHz
  BEIDOU COMPASS: B1, 1561.0980 MHz
  GALILEO E1, 1575.4200 MHz
  QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Supports UDR from NMEA 4.1
• Auto Baud Rate up to 115200 bps
• Update rate: up to 20 Hz
• Sensibility max.: –160 dBm
• LED-indicator for GPS status
• Operating temperature:
-40 °C ~ 85 °C without battery
-20 °C ~ 60 °C with battery
• Power supply: 5 - 48 V DC
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy:
2.5 m CEP (Circular Error Probable)
2.0 m CEP with SBAS (Circular Error Probable)
• Dimension (LxWxH): ca. 30 x 30 x 7.90 mm

Package content:
• Engine module
• Navilock support CD

Data sheet:
http://www.navilock.de/produkt/62764/pdf.html?sprache=en
