Delock Mini PCIe I/O PCIe full size 2 x RJ45 Gigabit LAN

Kods 95280

Condition: Jauns

Vairāk informācijas

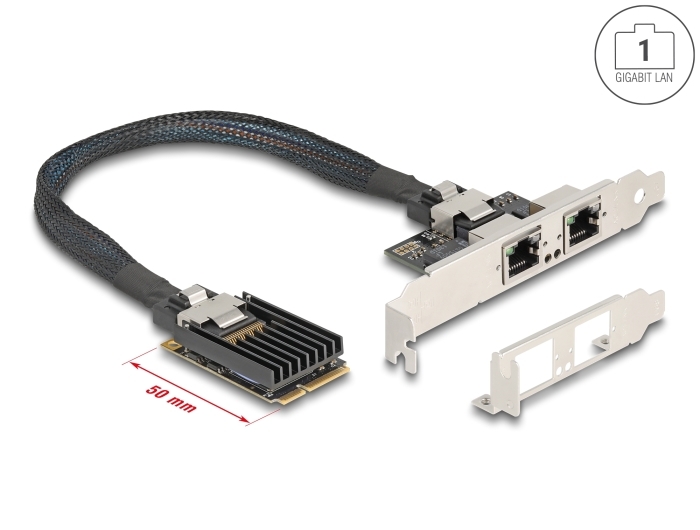

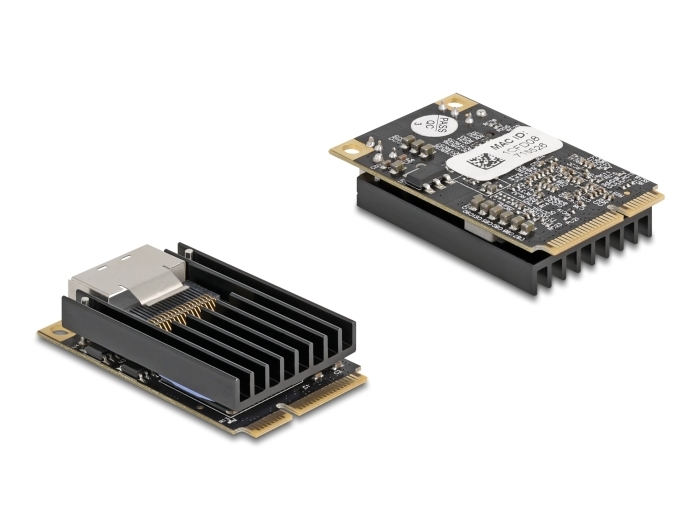

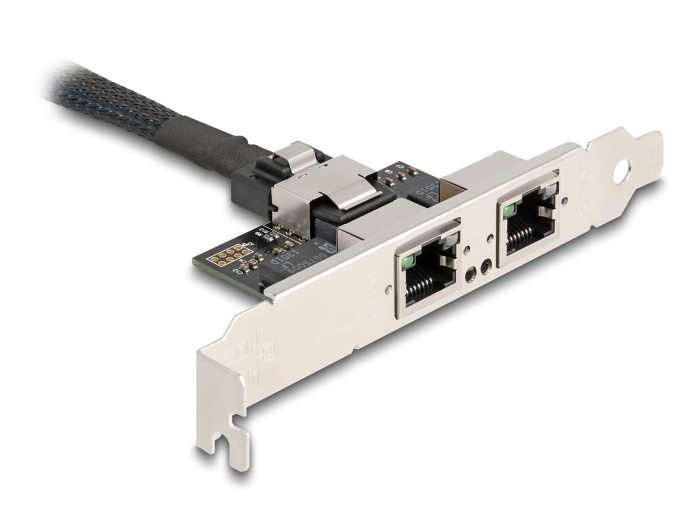

This Mini PCIe module by Delock expands a system by two Gigabit LAN interfaces, which can be lead out via the slot bracket.

System requirements:
• Windows 10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
• PC with one free slot

Specification:
• Connectors:
  internal: 1 x Mini PCIe male
  external: 2 x Gigabit LAN RJ45 jack
• Chipset: Intel i350
• Form factor: Mini PCIe full size
• Interface: PCI Express revision 2.1
• Data transfer rate:
  Ethernet up to 10 Mbps
  Fast Ethernet up to 100 Mbps
  Gigabit Ethernet up to 1000 Mbps
  PCI Express x1 up to 4 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 9k Jumbo Frames
• LED indicator for link and activity
• Cable length with connectors: ca. 30 cm

Package content:
• Mini PCIe module
• Connecting cable
• Slot bracket
• Low profile bracket
• User manual
