Delock Mini PCIe I/O PCIe full size 1 x RJ45 Gigabit LAN

Kods 95268

Condition: Jauns

Vairāk informācijas

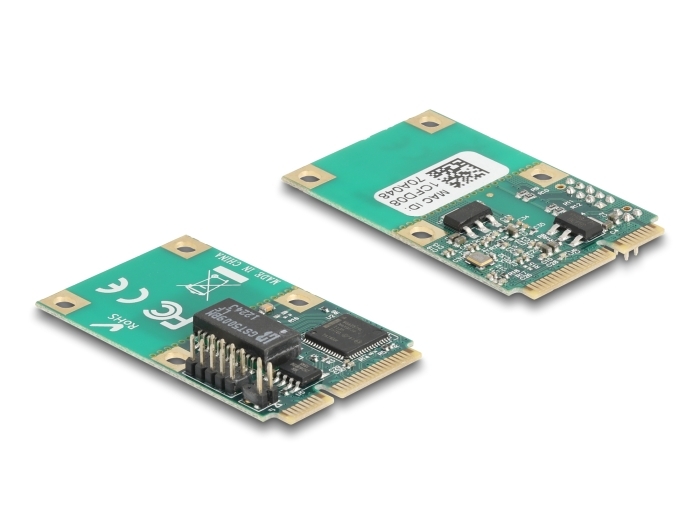

This Mini PCIe module by Delock expands a system by one Gigabit LAN RJ45 interface, which can be lead out via the slot bracket.
With the perforation, the length can be shortened from full size to half size.

System requirements:
• Windows 10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
• PC with one free slot

Specification:
• Connectors:
  internal: 1 x Mini PCIe male
  external: 1 x Gigabit LAN RJ45 jack
• Chipset: Intel 82574L
• Form factor: Mini PCIe full size / half size
• Interface: PCI Express revision 1.1
• Data transfer rate:
  Ethernet up to 10 Mbps
  Fast Ethernet up to 100 Mbps
  Gigabit Ethernet up to 1000 Mbps
  PCI Express x1 up to 2.5 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports Wake On LAN (WOL)
• Supports 9k Jumbo Frames
• LED indicator for link and activity
• Cable length with connectors: ca. 25 cm

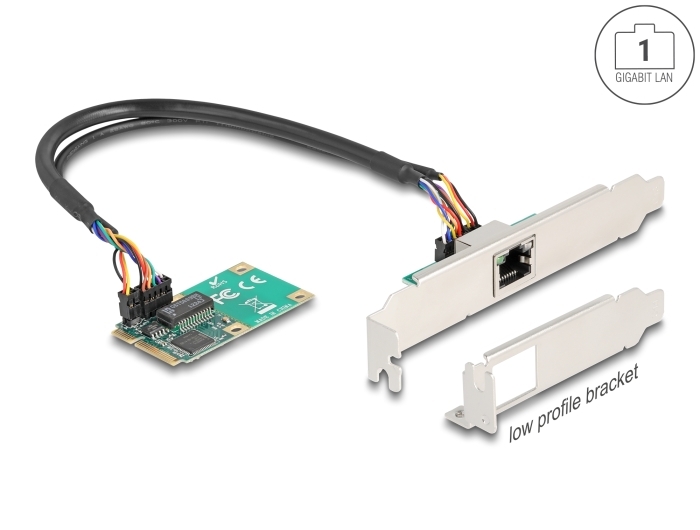

Package content:
• Mini PCIe module
• 2 x connecting cable

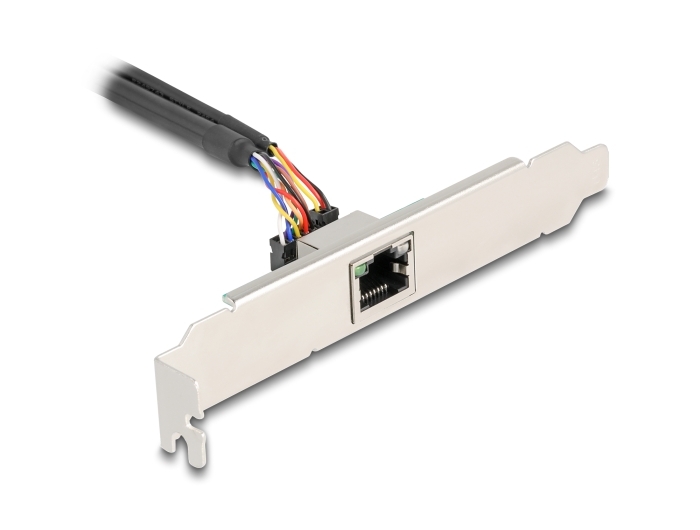

• Slot bracket
• Low profile bracket
• User manual
