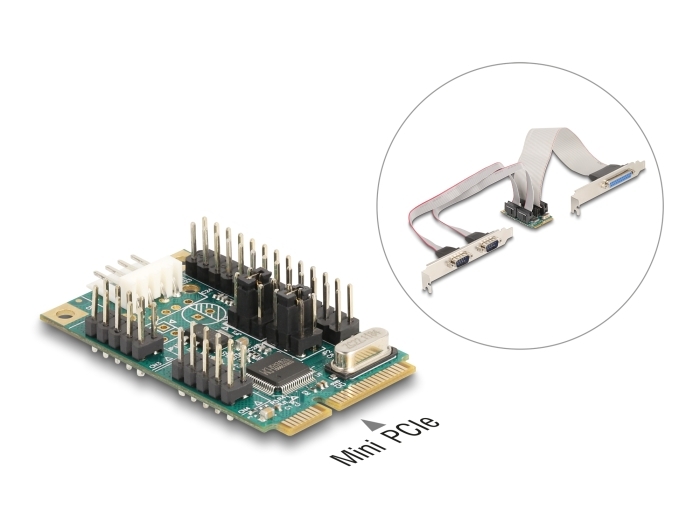

Delock Mini PCIe I/O PCIe full size 1 x Parallel, 2 x Serial RS-232 with voltage supply 5 V / 12 V

DELOCK

95277

Jauns

The Mini PCIe module by Delock expands your system by two serial and one parallel interface, which you can lead out through the slot bracket. You can connect different serial and parallel devices like printer, scanner, modem etc. to this adapter.

Optional voltage supplies via RS-232
Connected devices can optionally be supplied with voltages of 5 V or 12 V.
System requirements:
• Windows 10/10-64/11
• Windows Server 2022
• Motherboard with a free Mini PCIe slot with a PCIe interface

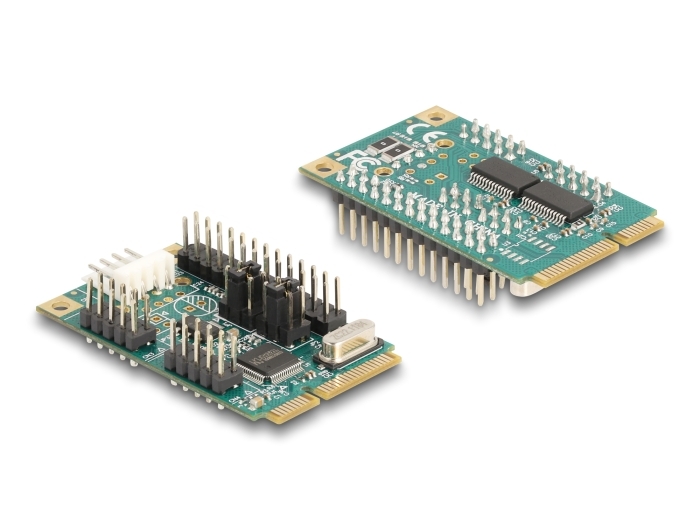

Specification:
• Connectors:
  external:
  2 x serial D-Sub 9 pin male
  1 x parallel D-Sub 25 pin female
  internal:
  1 x Mini PCI Express, Rev. 1.2
  2 x 10 pin pin header
  1 x 26 pin pin header
  1 x Floppy 4 pin male
• Chipset: WCH382L
• Form factor: Mini PCIe full size
• Serial specification:
• Data transfer rate up to 460.8 Kbps
• FIFO: 2 x 256 byte
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Jumper setting RI or 5 V / 12 V on pin 9
• Electrical power per port: max. 20 watt (5 V / 4 A)
• Electrical power per port: max. 48 watt (12 V / 4 A)
• Parallel specification:
• Data transfer rate up to 1 Mbps
• SPP, PS2, EPP, ECP compatible to IEEE 1284
• Cable length incl. connectors: ca. 25 cm
• Dimensions (LxWxH): ca. 51 x 30 x 10 mm

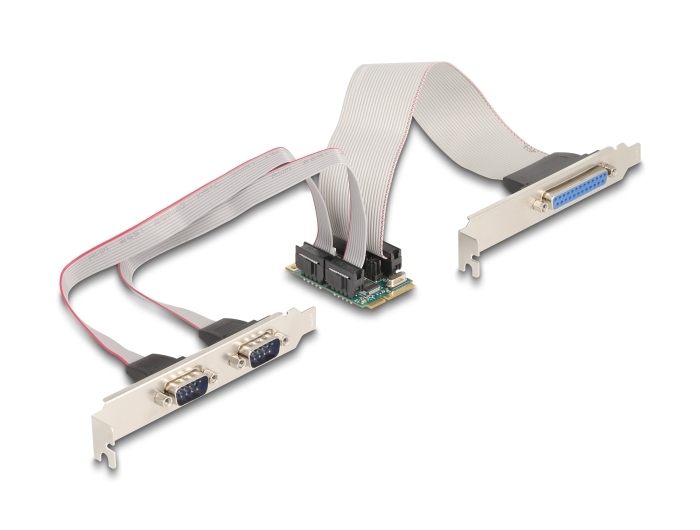

Package content:
• Mini PCIe module
• 2 serial connection cable
• 1 parallel connecting cable

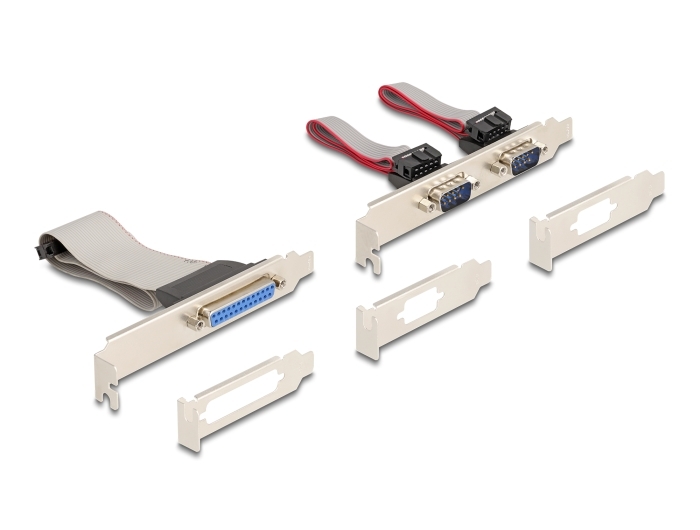

• 2 x standard bracket
• 3 x low profile bracket
• User manual
Data sheet:
