Mainboard VIA VAB-630 VIA Cortex-A9 Dual Core 1.0 GHz - 3.5

VIA

33211

Jauns

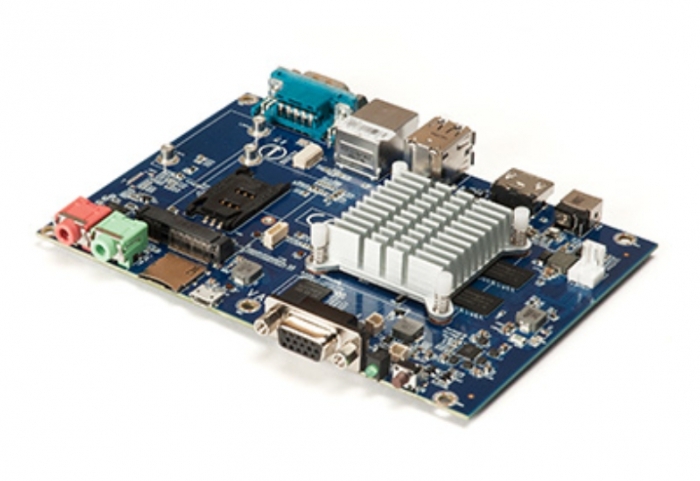

Powered by a 1.0GHz dual core VIA Cortex-A9 SoC, the VIA VAB-630 features advanced multimedia performance, rich I/O and wireless connectivity support, and advanced software development tools for a host of gateway, signage and HMI applications. An optional 10.1” touch panel is also available to accelerate system development times.
Based on a compact 3.5” Single Board Computer (SBC) form factor measuring just 14.6cm x 10.2cm, the VAB-630 comes with a rich array of I/O and connectivity features.
The VIA VAB-630 BSP features Android 5.0 as well as the VIA Smart ETK comprising a number of APIs, including Watchdog Timer (WDT) for safeguarding against system crashes, GPIO and UART access, and a sample app.
The VAB-630 Linux BSP includes a pre-built Debian image, including the kernel and bootloader source codes. Other features include a Tool Chain to help make adjustments to the kernel and to leverage the onboard pin-headers, GPIO, I2C, and other hardware features.
Specification:
Processor: 1.0 GHz VIA Cortex-A9 dual-core SoC
Memory: 1 GB DDR3 SDRAM onboard
Storage: 4 GB eMMC flash memory
Boot Loader: 512 KB SPI Flash ROM
Graphics: Mali-400 SP GPU
2 integrated, independent 3D/2D graphics processing units
Graphics engine supporting OpenGL® ES 2.0 hardware acceleration
Supports MPEG-2 and H.264 video decoding up to 1080p
LAN: ASIC AX88772CLF
Audio: VIA VT1603A I2S Audio Codec
HDMI: Integrated HDMI 1.4 Transmitter
USB: ASIC USB2514B-AEZC USB 2.0 hi speed 4-port hub controller

Expansion slot: 1 x mPCIe

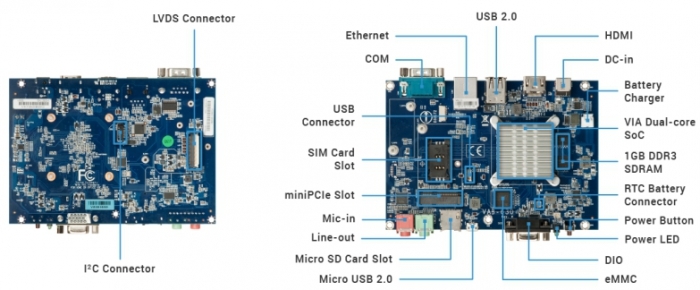

Internal I/O:
1 x Single-channel LVDS connector
1 x miscellaneous pin header for I2C touch screen interface
1 x USB connector
1 x UART (console port connector)
1 x RTC battery connector
1 x Battery charger connector
1 x Reset connector
1 x SIM card slot (supports 3G module without built-in SIM card slot)
1 x miniPCIe slot

Front Panel I/O:
1 x Micro USB 2.0 OTG port
1 x DIO port supporting 10 GPIO with 3.3V power
1 x Micro SD card slot
2 x Audio jacks : Line-out and Mic-in
1 x Power LED
1 x Power Button

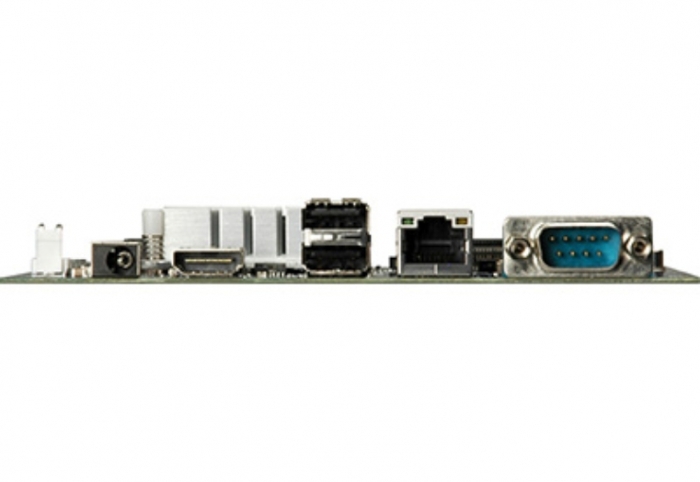

Back Panel I/O:
1 x HDMI port
2 x USB 2.0 ports
1 x COM port for RS-232 (TX/RX)
1 x 10/100Mbps Ethernet port
1 x DC-in jack

Power supply: 12V DC-in (5V DC-in optional)
For operating system: Android 5.0, Linux kernel 3.4.5
VIA Smart ETK: Watchdog timer, GPIO, UART
Operating temperature: 0°C ~ 60°C
Operating humidity: 0 ~ 90% @ 40°C (non-condensing)
Form factor: 14.6 cm x 10.2 cm (5.75" x 4.02")

Package content:
Mainboard
