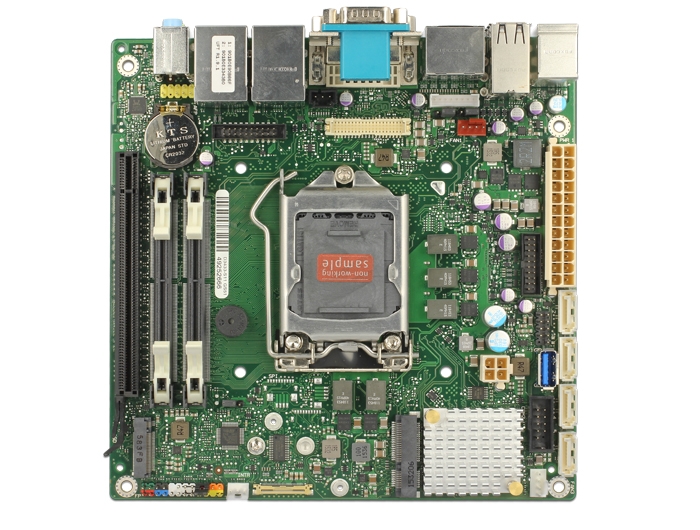

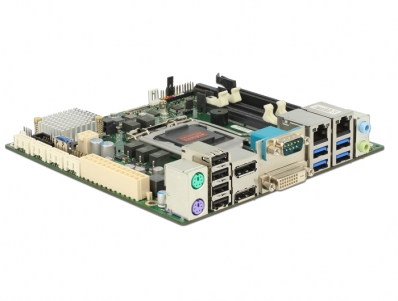

Mainboard Fujitsu D3433-S22 Industrial Mini ITX

Mainboard Fujitsu D3433-S22 Industrial Mini ITX

Fujitsu

33200

Jauns

Salīdzināt
The FUJITSU Mainboard D3433-S Mini-ITX of the Industrial Series is equipped with the highly performant Intel® Q170 Express Chipset and supports the 6th and 7th generation of Intel® Core™ Processors. It offers highest functionality on a small-sized surface with Intel® iAMT 11.0 and vPro 2015 manageability, 2x LAN and BIOS configurable PCI Express Lane.
Specification:
Industrial series
Designed for 24/7 continous operation

Processor socket:
LGA 1151, up to 65W TDP
Intel® Core i7/i5/i3 - (6th and 7th generation) processor series
Intel® Pentium / Celeron processor series
Chipset: Intel® Q170 Express
Memory socket: 2 x SO Dimm (1,2V), up to 32GB, Dual Channel,
DDR 4 - 2133 (CL 15), SDRam, unbuffered, non ECC
Effective memory speed depends on installed processor
Graphics:
Intel® HD Graphics, DX12, Embedded Display Port (2 lanes supported)
DVI-D, 2 x Display Port V1.2, Dual Channel 24 bit LVDS (max. 3 indep. displays)
Audio: Realtec ALC671, 5.1 channel, HD Audio codec
LAN: Intel® i219 LM & i210 AT with 10/100/1000 Mbit/s

Expansions slot:
1 x PCIe x 16 (Gen 3)

Storage:
4 x SATA 6 Gb/s
1 x mSATA (half/fullsize incl. USB 2.0))
1 x M.2 NGFF (PCIe or SATA modules)

Internal I/O:
2 x USB 3.0
2 x USB 2.0
1 x USB 3.0 stick
1 x Serial (COM 2, RS 232)
1 x S/PDIF out
1 x Frontpanel Audio (9 Pin, HD Audio & Legacy Audio AC 97)
1 x LVDS
1 x LVDS Backpanel
1 x Embedded Display Port
1 x Fan CPU
1 x Fan AUX1
1 x Intrusion (Case open)
1 x GPIO (8 Bit)
1 x ATX power (24 pin + 4 pin)
1 x 12V-only PSU

External I/O:
1 x DVI-D
2 x Display Port V1.2
2 x Audio
2 x GigaLan
2 x PS/2
4 x USB 3.0
4 x USB 2.0
1 x Serial (COM 1, RS 232)
Package content:
1 x Mainboard
1 x I/O shield
1 x DVD driver
