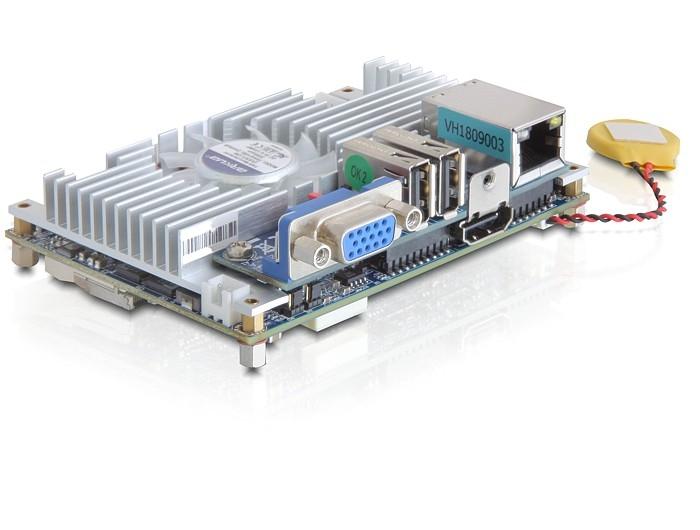

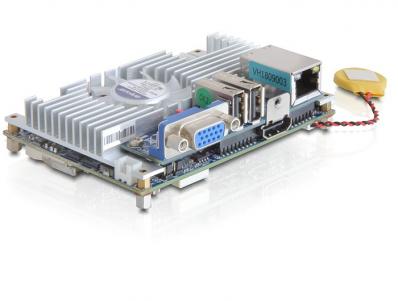

Mainboard VIA PICO-P820-12L Pico-ITX

The ultra compact VIA EPIA-P820 supports 2GB of DDR2 system memory and leverages a power-efficient, high performance 1.2GHz U2500 VIA Nano processor to provide system developers with the most powerful Pico-ITX platform ever.

The advanced graphics of the VIA EPIA-P820 is delivered via the VIA VX855 media system processor with its support for a wide range of digital media technologies and I/O. Within the chipset the high performance VIA Chrome9 HCM IGP and allows for flawless playback of 1080p HD video at amazingly low processor utilization levels.

The product uses a specially designed I/O add-on-board which supplements the native HDMI port to add a VGA port, a Gigabit LAN port and two USB 2.0 ports. Other features include 6 channel, DTS capable audio with S/PDIF support, and on-board pin headers that provide support for an additional four USB 2.0 ports, an LPC connector, SMBus connector, PS/2 support, audio jacks, LVDS, four pairs of DIO and two UART ports.

Key Features

• Integrated VIA Chrome9™ 3D/2D AGP graphics with MPEG-2/4, WMV9 & H.264 video decoding acceleration
• Supports DDR2 800/667 SDRAM (SODIMM)
• Supports one Gigabit Ethernet
• Supports one IDE and one SATA hard drive
• Supports six USB 2.0 ports
• Onboard LVDS support: One single-channel LVDS panel support
• Supports HD audio
• Supports one HDMI port
