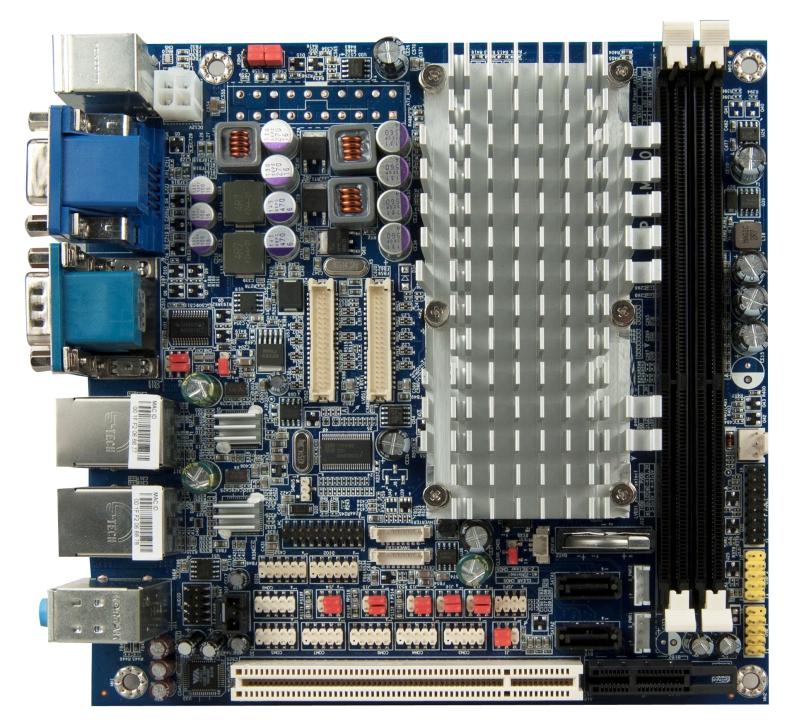

VIA EPIA-M910-10PE Dual Core Eden X2 1,0GHz MiniITX

Manufacturer: VIA

Kods 33026

Condition: Jauns

Active and passive cooling configurations Hardware acceleration for MPEG-2, WMV9, VC-1 and H.264 video Support for up to 8GB of DDR3 On board HDMI and VGA ports, plus two 18/24-bit LVDS Supports dual Gigabit Ethernet, eight USB 2.0 ports Eight COM ports (expandable to 12 with the VIA LPC-01/02 add-on card) Available with ATX or DC-in power supply support Design...

More details

Vairāk informācijas

Description:

Active and passive cooling configurations
Hardware acceleration for MPEG-2, WMV9, VC-1 and H.264 video
Support for up to 8GB of DDR3
On board HDMI and VGA ports, plus two 18/24-bit LVDS
Supports dual Gigabit Ethernet, eight USB 2.0 ports
Eight COM ports (expandable to 12 with the VIA LPC-01/02 add-on card)
Available with ATX or DC-in power supply support
Designed for advanced Industrial Automation, POS, Kiosk, ATM, Gaming, Digital Signage, Healthcare and Digital Media Applications

Specification:
Processor:
VIA Dual Core Eden X2 1,0GHz - Fanless
Chipset:
VIA VX900 Media System Processor
System Memory:
2 x DDR3 1066 DIMM socket up to 8GB
Graphic:
Integrated VIA Chrome9 HD DX9
Expansions Slots: 1 x PCI and 1 x PCIe x 1
Onboard Serial ATA: 2 x SATA Connenctors
Onboard Lan: 2 x VIA VT6130 PCIe Gigabit Ethernet Conroller
Onboard Audio: VIA VT2021 HD Audio Codec
Onboard Super I/O: Fintek 81865F-I + F81801

Internal I/O:
2 X USB 2.0 pin header for 4 ports
2 x SATA connectors
2 x SATA power connectors (DC-in SKU)
2 x SATA DOM power selectors
1 x LVDS Dual channel 18/24-bit (VT1636)
1 x LVDS Single channel 18/24-bit (VX900)
1 x Front audio pin header
1 x PS/2 mouse/keyboard pin header
6 x RS232 pin headers (powered with selectable 5V/12V)
1 x LPC pin header
1 x SMBUS pin header
1 x S/PDIF out connector
2 x Digital I/O pin headers (GPI x 8 / GPO x 8)
1 x Front panel pin header
2 x Smart fan pin headers for CPU and System
1 x 12V DC-in power

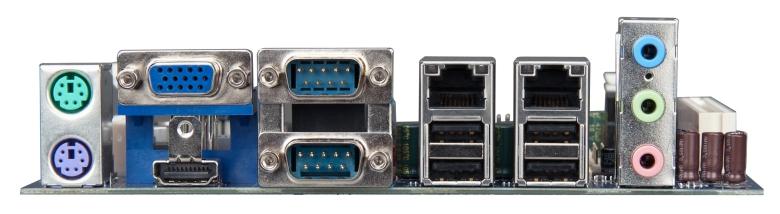

External I/O:
1 x HDMI port
1 x VGA port
2 x Seriell ports (powered with selectable 5V/12V)
2 x GigaLan ports
4 x USB 2.0
3 x Audio jacks
2 x PS/2

BIOS: AMI BIOS 8Mbit flash memory
For Operating System:
Windows 7, Windows Embedded Standard 7, POSReady 7,
Windows XP, Windows Embedded Standard, Compact Linux and VxWorks
Power: 12V DC-in power
Management:
Wake on Lan, Keyboard power on, Time power on,
System power management, ACpower failure recovery, Watch Dog Timer
Operating Temperature: 0Â°C - 60Â°C
Compliance:
CE/FCC/BSMI/RoHS
Form Factor: Mini-ITX 17cm x 17cm

System requirements:

Package content:
1 x SATA cable
1 x SATA power cable
1 x DC power cable
1 x I/O bracket
