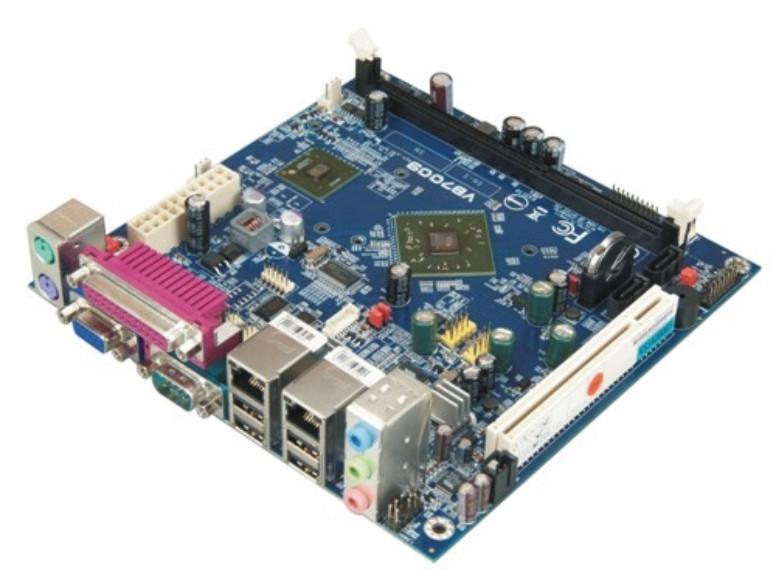

Mainboard VIA EPIA-VB7009-10E C7 1,0GHz MiniITX

VIA

32989

Jauns

CPU: VIA C7 1,0GHz with heatsink (fanless) Chipset: VIA VX900 Media System Processor System Memory: 1 x DDR3 1066 SODIMM socket up to 4GB Graphic: Integrated VIA Chrome9 HD DX9 2D/3D graphics with VC1, MPEG-2, WMV9 and H.264 decoding acceleration Expansion Slots: 1 x PCI Slot Onboard SATA: 2 x SATA connectors Onboard Lan: 2 x VIA VT6130 PCIe Gigabit Ethernet Onboard Audio...

More details

CPU:
VIA C7 1,0GHz with heatsink (fanless)
Chipset:
VIA VX900 Media System Processor
System Memory:
1 x DDR3 1066 SODIMM socket up to 4GB
Graphic:
Integrated VIA Chrome9 HD DX9 2D/3D graphics
with VC1, MPEG-2, WMV9 and H.264 decoding acceleration
Expansion Slots: 1 x PCI Slot
Onboard SATA: 2 x SATA connectors
Onboard Lan: 2 x VIA VT6130 PCIe Gigabit Ethernet
Onboard Audio: VIA V117085 HD Audio codec
Onboard Super I/O: Fintek F81865F-I

Internal I/O:
3 x Com pin headers (with 5V/12V select)
1 x Digital I/O pin header (GPI x 4, GPO x 4)
2 x USB pin header for 4 USB Ports
1 x SMBus connector
1 x LPC connector
1 x S/PDIF-out connector
1 x Buzzer
1 x Dual channel 18/24 bit LVDS (VT1636)
1 x LVDS Panel power selector (5V/3.3V)
1 x LVDS inverter pin header
1 x LVDS inverter power selector (5V/12V)
1 x Front audio connector for Line-out and Mic-in
1 x Front panel pin header
2 x Fan connectors for CPU and SYS
1 x ATX power connector
1 x Clear CMOS

External I/O:
1 x VGA port
1 x Com port
1 x Parallel port
2 x RJ45 Lan ports
4 x USB 2.0 ports
3 x Audio jacks
2 x PS/2 ports

BIOS: Ami BIOS, 8Mbit SPI flash memory
Operating System:
for Windows 7, Windows XP, Windows embedded POSReady 7,
Windows embedded Standard, Windows CE and Linux
Monitoring:
AC power failure recovery, RTC timer to power on,
Wake-on Lan, Wake-on keyboard, Wake-on mouse
Operating Temperature: 0°C - 60°C
Compliance:
CE/FCC/BSMI/RoHS
Form Factor: Mini-ITX 17cm x 17cm

Packing List:
1 x SATA cable
1 x Driver CD
1 x I/O bracket

The VIA VB7009 Mini-ITX mainboard is a compact embedded board designed specifically for POS and kiosk applications. With a wide variety of CPU choices ranging from a fanless 1.0GHz VIA C7® to more powerful options of either a 1.6GHz VIA C7®-D or 1.2GHz dual core VIA Nano™ X2processor, the VIA VB7009 provides superior flexibility to match your embedded computing needs.

The VIA VB7009 features the VIA VX900 MSP which includes the VIA ChromotionHD 2.0 video processor for advanced filtering and cutting edge post-processing for MPEG-2, VC-1, WMV9 and H.264 video formats delivering rich digital media performance.

The VIA VB7009 supports up to 4GB of DDR3 system memory and delivers native support for SATA II storage devices. High-bandwidth connectivity is enabled through on-board dual RJ45 ports supporting Gigabit networking. Four USB 2.0 ports are included, with four more available through onboard pin headers.

The VIA VB7009 is fully compatible with Microsoft® and a wide range of Linux operating systems and is available in a variety of configurations.

Key Features
  • Choice of high-performance 64-bit dual core VIA Nano™ X2, VIA VIA C7®-D or VIA VIA C7® processor
  • Integrated VIA Chrome9TM HD DX9 3D/2D graphics with VC1, MPEG-2, WMV9 and H.264 decoding acceleration
  • Supports up to 4GB of DDR3 1066 DIMM RAM
  • Supports two SATA hard drives
  • Supports dual Gigabit Ethernet
  • Supports one VGA port
  • Supports eight high-speed USB 2.0 ports
  • Supports six onboard COM ports
  • Supports onboard dual-channel LVDS
