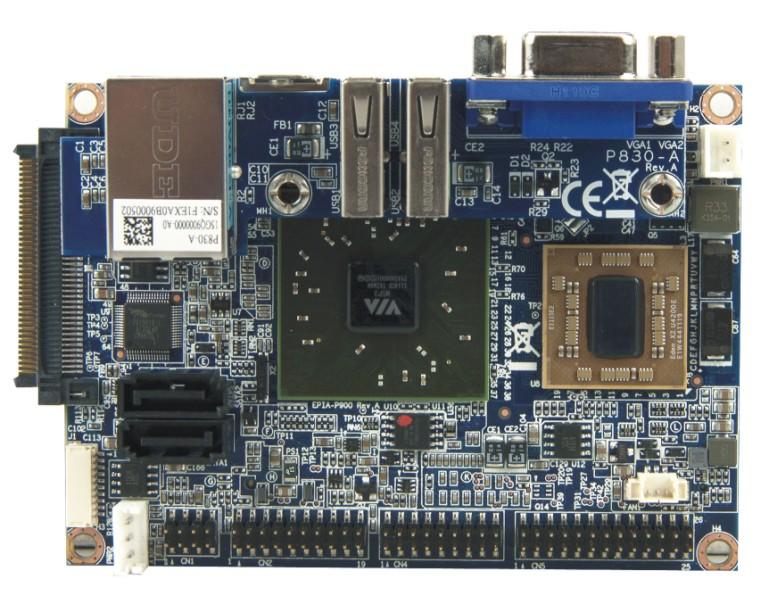

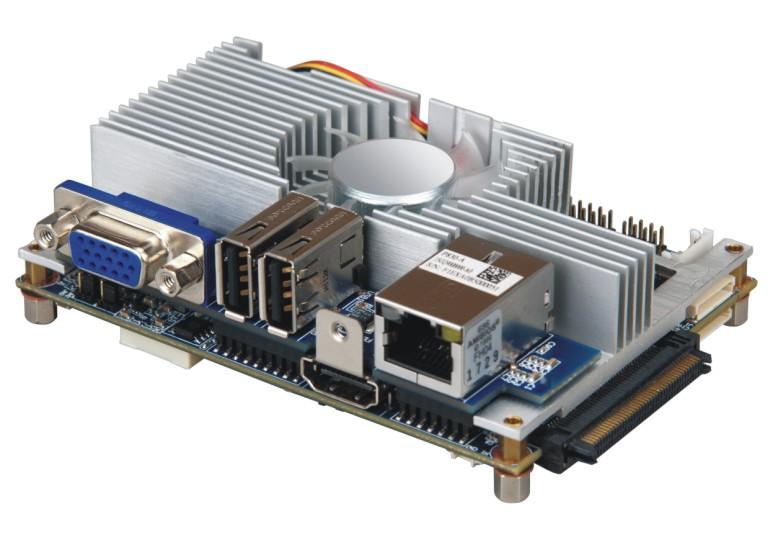

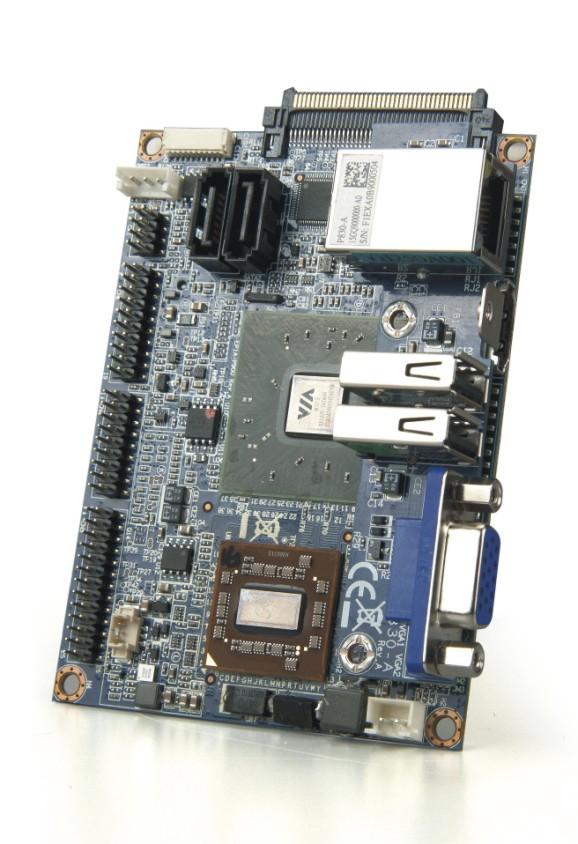

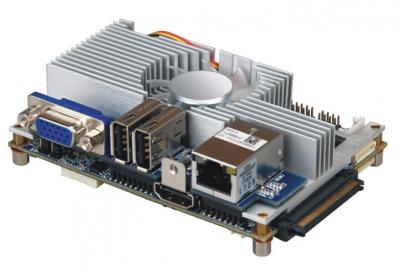

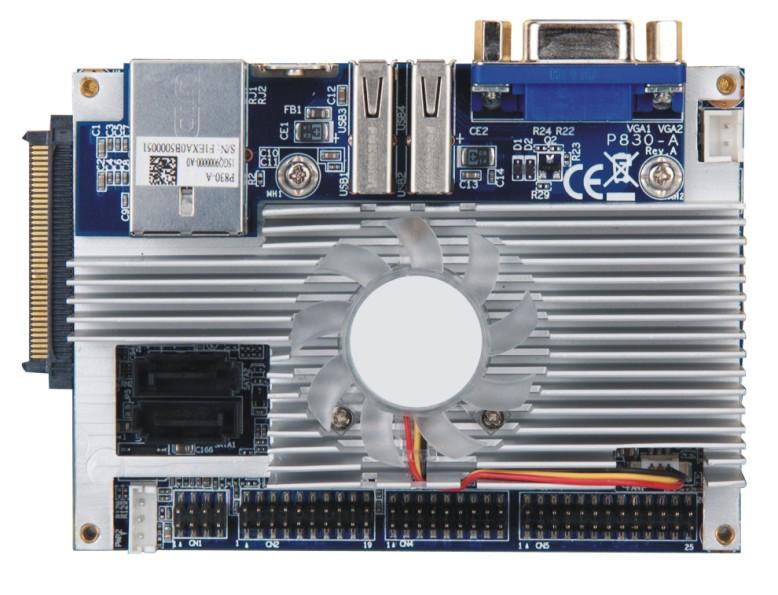

VIA PICO-P900-10 EDEN X2 1.0GHz Dual Core Pico-ITX

Manufacturer: VIA

Kods 32983

Condition: Jauns

Processor: VIA EDEN X2 1.0GHz Dual Core Chipset: VIA VX900H Media sytem processor System Memory: 1 x Socket for DDR3 1066 MHz up to 4GB VGA: Integrated VIA Chrome 9 HD DX9 3D/2D graphics with VC1, MPEG-2, WMV9 and H264 decoding accelerator Onboard Serial ATA: 2 x SATA connectors Onboard Lan: 1 x VIA VT6130 PCIe Gigabit Ethernet controller Onboard Audio: VIA VT2021 HD codec Onboard Su...

More details

Vairāk informācijas

Processor: VIA EDEN X2 1.0GHz Dual Core
Chipset: VIA VX900H Media sytem processor

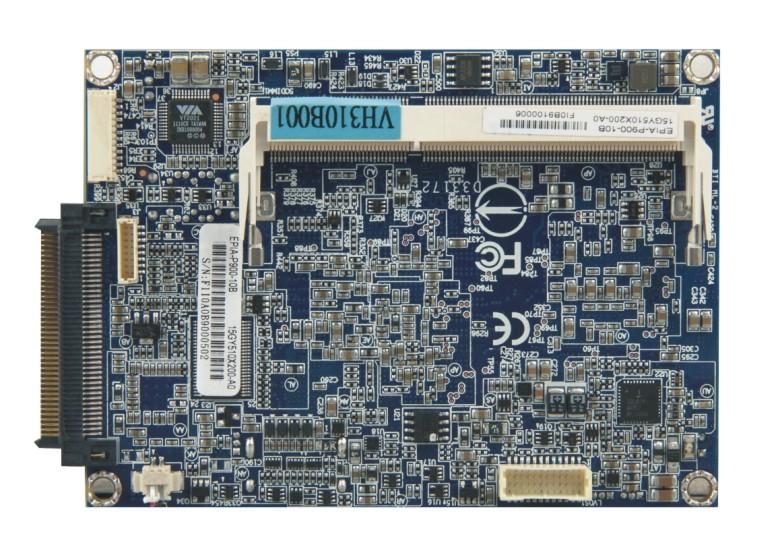

System Memory: 1 x Socket for DDR3 1066 MHz up to 4GB
VGA:
Integrated VIA Chrome 9 HD DX9 3D/2D graphics
with VC1, MPEG-2, WMV9 and H264 decoding accelerator
Onboard Serial ATA: 2 x SATA connectors
Onboard Lan: 1 x VIA VT6130 PCIe Gigabit Ethernet controller
Onboard Audio: VIA VT2021 HD codec
Onboard Super I/O: Fintek F81801U-I

Internal I/O:
1 x USB pin connector for 5 additional USB 2.0 port
1 x LPC pin connector
1 x SMBus pin connector
1 x Front panel pin connector
1 x PS/2 mouse/keyboard pin connector
1 x Fan pin connectorfor Sys Fan
1 x 1-CH 24bit LVDS panel pin connector
1 x Audio pin connector for Line-in, Line-out and Mic-in
1 x Lan pin connector
1 x DIO pin connector (4GPI+4GPO)
2 x UART port pin header
1 x Backlight control for panel
1 x SPI flash connector NCP
1 x SATA power connector
1 x 12V DC-in power connector

External I/O:
1 x HDMI port
1 x VGA port
1 x GigaLan port
2 x USB 2.0 ports

Operation Sytem:
for Windows 7, Windows Embedded CE,
Windows Embedded Standard, Windows XP and Linux
Operation Temperature: 0Â°C - 60Â°C
Form factor: 10cm x 7,2cm - Pico-ITX
Compliance: CE, FCC, BSMI, RoHS

Packing List:
1 x DC power cable
1 x SATA cable
1 x SATA power cable
1 x Driver CD

Based on the incredibly compact Pico-ITX form factor, measuring 10 cm x 7.2 cm, the VIA EPIA-P900 is the first dual core Pico-ITX board featuring a 1.0GHz 64-bit VIA Edenâ¢ X2 processor and the VIA VX900H media system processor. This combination allows for smooth playback of the most demanding video formats at high resolutions of up to 1080p, and makes the VIA EPIA-P900 a superb choice for a range of devices including today`s next-generation mobile devices in health-care, logistics, fleet management and other vertical market segments.

The latest VIA VX900H MSP adds support for to 4GB of DDR3 memory, HD audio, HDMI, VGA and LVDS display connectivity as well as a high performance hardware HD video decoder in the shape of the latest VIA ChromotionHD 2.0 video engine.

The VIA ChromotionHD 2.0 engine provides advanced filtering and cutting edge post-processing to perform ultra smooth decoding of H.264, MPEG-2, VC-1, and WMV9 providing smooth playback of the most demanding multimedia titles at resolutions up to 1080p without incurring a heavy CPU load. The EPIA-P900 features the VIA Vinyl VT2021, a high performance HD audio codec, delivering outstanding sound quality and supports stereo 24-bit resolution and up to 192 kHz sample rate for DACs/ADCs.

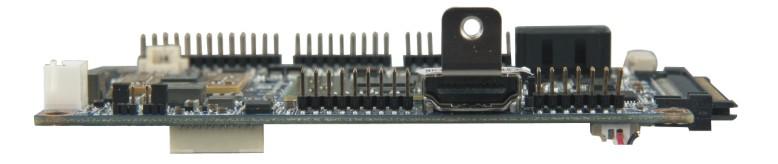

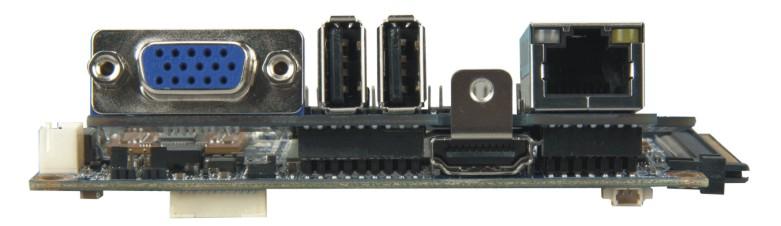

On board pin headers provide support for an additional of 5 USB 2.0 ports, an LPC connector, SMBus connector, PS/2 support, audio jacks, LVDS, 4 pairs of DIO and two UART ports. Rear I/O includes one HDMI port, one VGA port, 2 USB 2.0 ports and 1 GigaLAN port.
