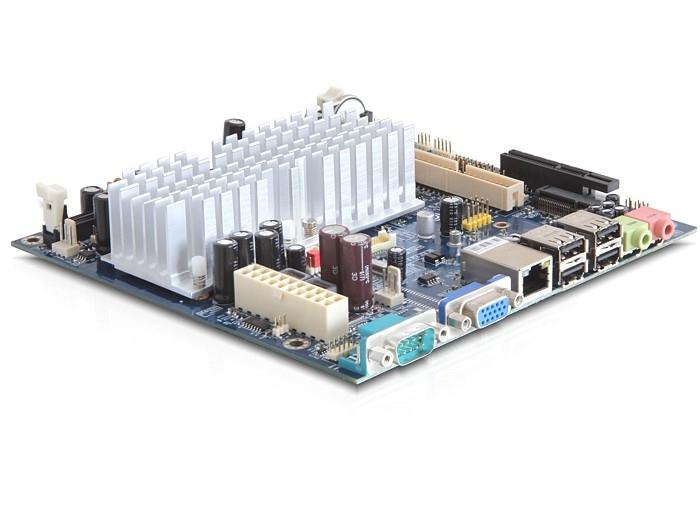

Mainboard VIA EPIA-M830-10VE 1,0GHz MiniITX

Description:


Specification:
Processor: 1.0GHz VIA Nano™ E (fanless)
Chipset: VX800 Unified Digital Media IGP chipset
Super I/O: VIA VT1211
System Memory:
1 x DIMM Socket for DDR2 533/667 up to 2GB
VGA: Integrated VIA Chrome™9 HC3 DX9 3D/2D graphics with VC1, MPEG-2, WMV9
decoding acceleration
Onboard IDE: 1 x UltraDMA 133/100 pin connector with 2.54mm 40-pin
Onboard Serial: 2 x SATA connectors (pin#7 powered with selectable GND/5V)
Onboard LAN: 1 x VIA VT6130 Gigabit LAN controller
Onboard Audio: VIA VT1708S High Definition Audio Codec

Internal I/O:
1 x USB port
1 x Front audio pin header
1 x Line-in pin header
1 x PS/2 keyboard/mouse pin header
3 x RS-232 pin headers (powered with selectable 5V/12V)
1 x LPT pin header
1 x LPC pin header
1 x SMBUS pin header
1 x S/PDIF-out pin header
1 x Digital I/O (GPI x 4 + GPO x 4)
1 x Front panel pin header
2 x Fan connectors for CPU/Sys
1 x Mini-PCIe socket to support Mini-PCIe/USB devices
1 x PCIe x4 slot
1 x 18bit TTL reserved (DVP, manufacturing option)
1 x LVDS connector, for 24-bit dual channel LVDS panel
1 x ATX power connector

External I/O:
1 x VGA port
4 x USB 2.0 ports
1 x GigaLAN port
2 x Audio jacks (Line-out, Mic-in)
1 x Serial port

BIOS: Award BIOS, 8Mbit SPI Flash ROM
Management: Keyboard Power-on, Timer Power-on
System power management, AC power failure recovery
Wake-on LAN, Watch Dog Timer
Operating System:
Windows Embedded CE, Windows XP, Windows Embedded Standard, Linux
Operating Temperature: 0°C up to 50°C
Operating Humidity: 0% ~ 95% (relative humidity; non-condensing)
Form Factor: Mini-ITX 17cm x17cm
Compliance: CE, FCC, RoHs


System requirements:

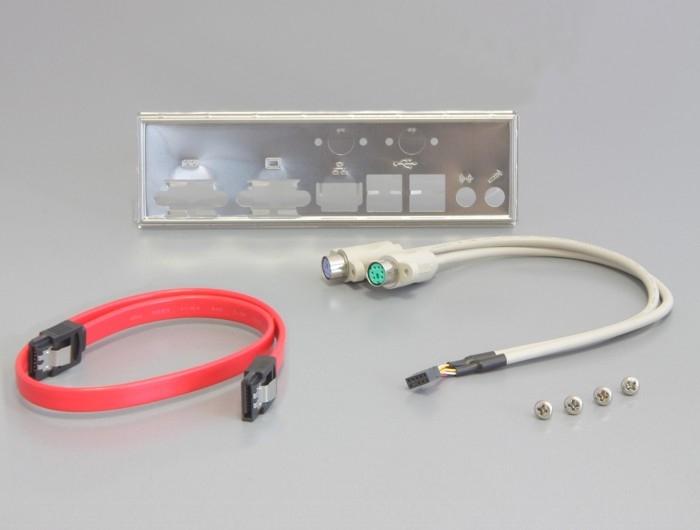

Package content:
1 x SATA cable
1 x PS/2 cable
1 x I/O Bracket
1 x Driver CD
