Description:
Specification:
Processor:
INTEL® Celeron⢠J1900 (2.0 GHz) quad-core processor
2 Phase CPU Power Support
I/O Chipset: Fintek F71869
Memory slot: 1 x SO-DIMM DDR3L 1333 MHz up to 8 GB
Expansion Slots:
1 x Mini PCIe (full size)
1 x PCIe x1
Storage
1 x SATA 3Gb/s
1 x mSATA
Audio: ALC887 Audio CODEC - HD Audio CODEC
Ethernet LAN: Realtek® RTL8111G Chip - PCI Express Gigabit LAN
LVDS: 24-bit Dual channel
USB: 6 x USB 2.0
Special Features :
Support CPU Smart Fan
Support Watch dog Technology
Support GPIO Technology
Support Power On board
Support Amplifier function(3W)
Support Slim Fan design
Support Slim hard drive design
Support 1*RS422/RS485/RS232 COM port
Thunder Protection Function
All Solid Capacitor design
All Power Pack MOSFET design

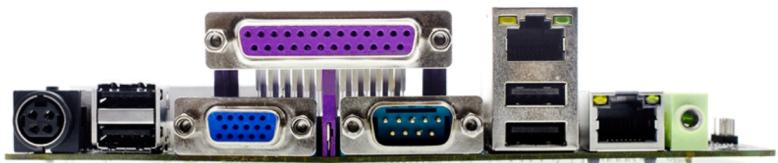

External I/O:
4 x USB 2.0/1.1 ports
2 x GigaLAN (RJ-45) port
1 x Parallel port
1 x Audio
1 x VGA
1 x COM port (1*RS422/RS485/RS232)
1 x 12V DC in
Internal I/O:
2 x USB 2.0
2 x Fan connectors (CPU / Chassis)
5 x COM ports headers
1 x PS2/KB header
1 x 4-pin ATX 12V Power connector
1 x 4-pin SATA Power connector
1 x VGA header (15-pin)
1 x HDMI header (20-pin)
1 x LVDS 24-bit Dual Channel
1 x GPIO header
1 x SATA+Power Connector(7+15Pin)(Option)
1 x Audio header
1 x Front panel header
1 x HDMI_SPDIFheader
BIOS: AMI 32MB DIP Flash ROM
Form Factor: Thin mini ITX Form Factor(170mm X 170mm)
System requirements:
Package content:
1 x Mainboard
2 x SATA cable
2 x COM cable
1 x I/O shield
1 x Dtiver CD
