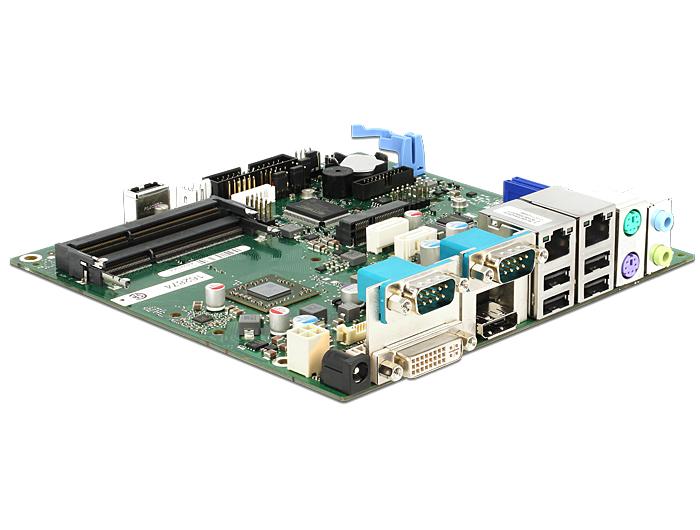

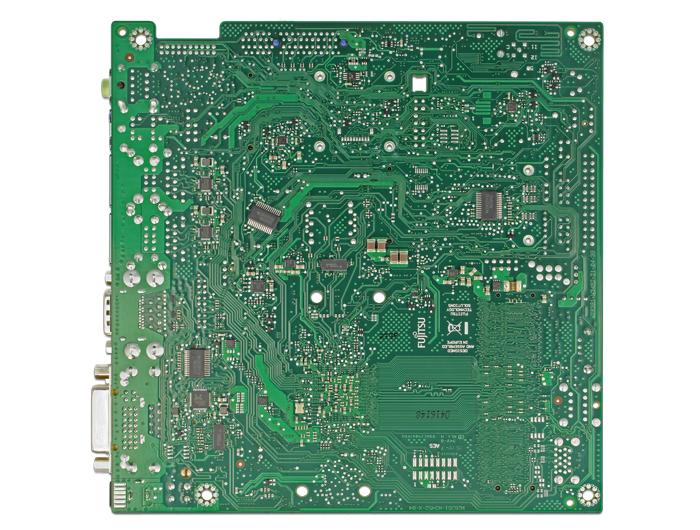

Mainboard Fujitsu D3313-S4 Industrial Mini ITX

Description:
The Fujitsu Industrial Motherboard D3313-S is the most interesting platform for industrial applications with different requirements. Thanks to the AMD Embedded SoC processor platform of G-series, the D3313-S requirements of low power consumption based on the AMD Embedded SoC GX210HA met to a high graphics performance with the AMD Embedded GX-420CA quad-core processor.
The Fujitsu D3313-S is designed for 24/7 continuous operation and equipped with 24-bit dual-channel LVDS, DisplayPort & DVI interfaces, so that the user can maintain the status of his applications.

Specification:
24/7 Operation - Longlife components

Processor: AMD GX-222GC 2,04 GHz Dual Core / 10-15W
Chipset: AMD Embedded G-Series (655/800 MHz)
Memory: 2 x Socket (1.5V/1.35V) for single channel SO-DIMM DDR3-1333 MHz CL9 or DDR3-1600MHz CL11 SDRAM, unbuffert, no ECC - Max. 16GB
Graphics: AMD Radeon RSE Graphics
Lan: Realtek RTL 8111G
Audio: Realtek ALC 671

Espansion Slots:
1 x PCIe x4 (Gen2) mechanical open slot for usage of x16 cards
1 x Mini PCIe (Gen2) incl. USB2.0 for fullsize and haflsize cards

Storage:
1 x mSATA (SATAIII) fullsize
2 x SATA 6 Gb/s

Internal I/O:
2 x SATA 6 Gb/s
2 x USB 3.0
2 x USB 2.0
1 x S/PDIF
1 x USB 2.0 for USB stick
1 x Serial
1 x Fan CPU
1 x Fan System
1 x Intrusion (Case open)
1 x LVDS dual channel
1 x LVDS backlight inverter
1 x Feature connector (8bit Gerneral Purpose I/O)
1 x Frontpanel (Power Switch, LED, Intel 10pin header)
1 x Onboard power output (+5V/2A + 12V/2A) for drives
1 x Onboard (Internal input) DC-in 12V / 19-24V @xxA

External I/O:
1 x DVI-I
1 x DisplayPort
2 x Audio line
2 x GigaLan
2 x PS/2
4 x USB 2.0
2 x COM (RS232, FIFO, 16550 compatible)
1 x DC-in 12V / 19-24V

System requirements:


Package content:
Mainboard
Treiber DVD

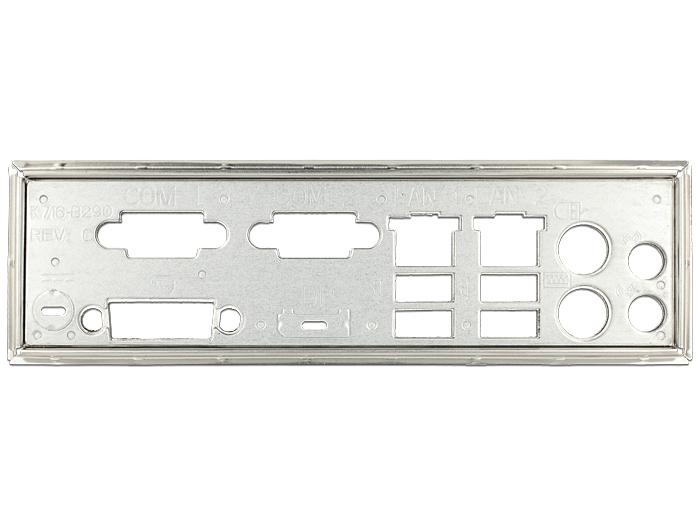

I/O Shield
