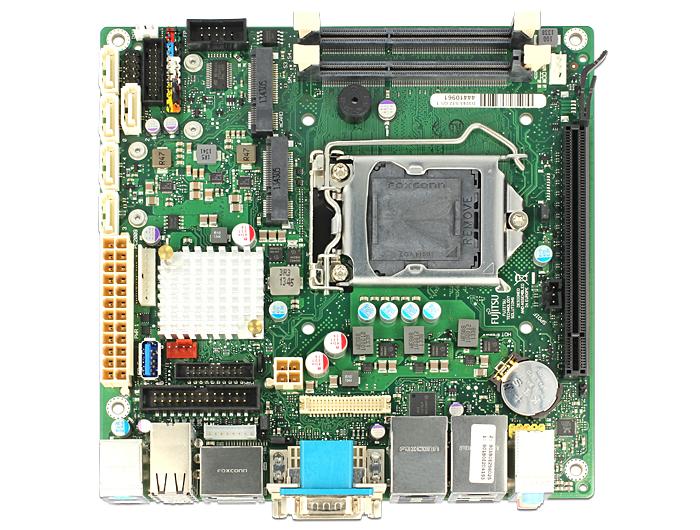

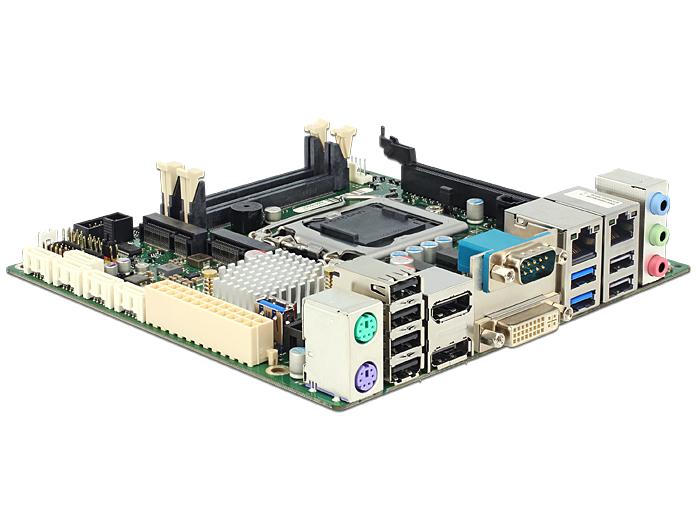

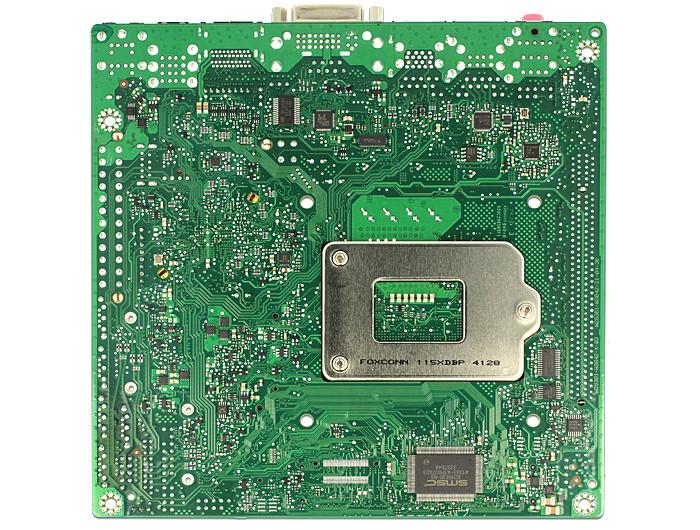

Mainboard Fujitsu D3243-S Industrial Mini ITX

Fujitsu

33125

Jauns

Fujitsu Industrial mini-ITX mainboard with Intel® Q87 Express Chipset supporting DDR3 1600 SDRAM Memory and 4th generation Intel® CoreTM i3 / i5 / i7 Processors (Socket LGA1150). Designed & approved for enhanced operating temperature range from 0°C to 60°C. Designed & approved for 24/7 continuous operation

More details

Salīdzināt
Description:
Fujitsu Industrial mini-ITX mainboard with Intel® Q87 Express Chipset supporting DDR3 1600 SDRAM Memory and 4th generation Intel® CoreTM i3 / i5 / i7 Processors (Socket LGA1150). Designed & approved for enhanced operating temperature range from 0°C to 60°C. Designed & approved for 24/7 continuous operation

Specification:
Processor socket:
LGA 1150, max. 95W TDP
Intel® Core i5/i7 - 4xxx processor series
Intel® Core i3 - future gen4 processor series
Intel® Pentium® - future Haswell processor series
Intel® Celeron® - future Haswell processor series
Chipset: Intel® Q87
Memory socket:
2 x SODIMM (1.5V/1.35V) max. 16GB Dual Channel
DDR3-1600 (CL11) / DDR3-1333 (CL9) SDRam, unbuffered, no ECC
Graphics:
Intel® HD Graphics (HD4600, depends on installed processor),
DX11.1, DVI-I, 2 x DisplayPort V1.2, Dual Channel 24bit LVDS
Audio: Realtek ALC671, 5.1 Channel HD Audio Codec
LAN: Intel i217LM / Intel i210AT GigaLan

Expansions slot:
1 x PCIe x16 (Gen3)
1 x Mini PCIe (incl. USB 2.0)
Storage:
5 x SATA 6Gb/s
1 x mSATA 6Gb/s (fullsize)

Internal I/O:
5 x SATA 6Gb/s
1 x mSata
1 x S/PDIF
1 x Frontpanel Audio (9-Pin, HD Audio)
2 x USB 2.0
2 x USB 3.0
1 x USB 3.0 Stick
1 x Serial (FIFO, 16550 compatible)
1 x Fan PSU, CPU and AUX1
Intrusion (Case open)
GPIO (8bit)
Power 24pin (BTX) / 4 pin (12v processor supply)

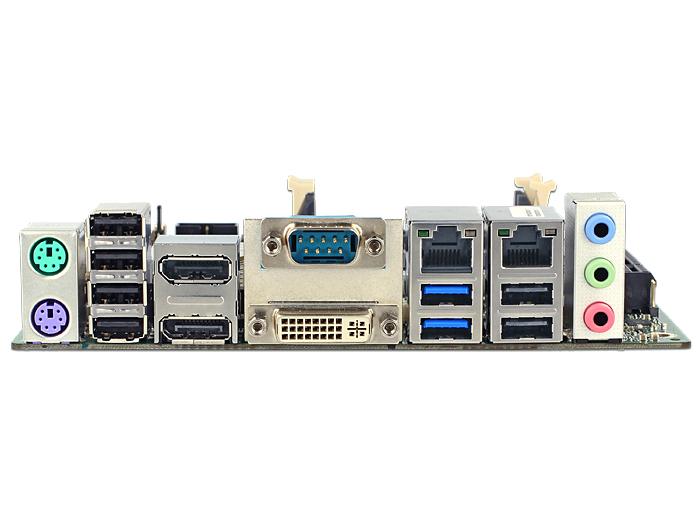

External I/O:
1 x DVI-I
2 x DisplayPort v1.2
3 x Audio
2 x GigaLan
2 x PS/2
6 x USB 2.0
2 x USB 3.0
1 x ComPort (RS232, FIFO, 16550 compatible)

System requirements:


Package content:
Driver CD

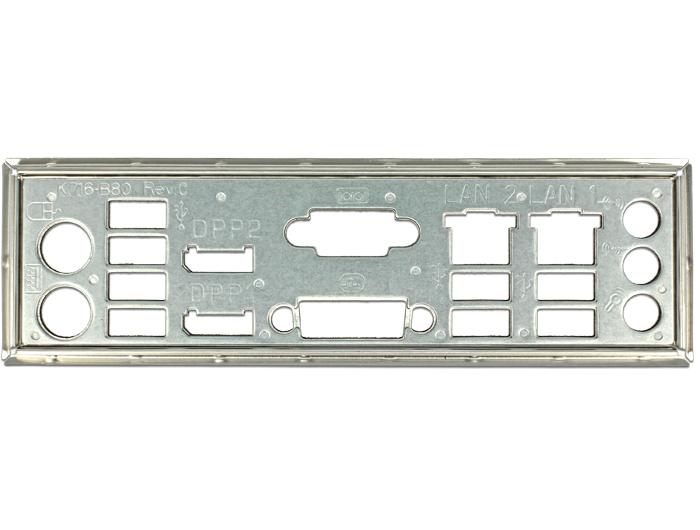

I/O Shield
