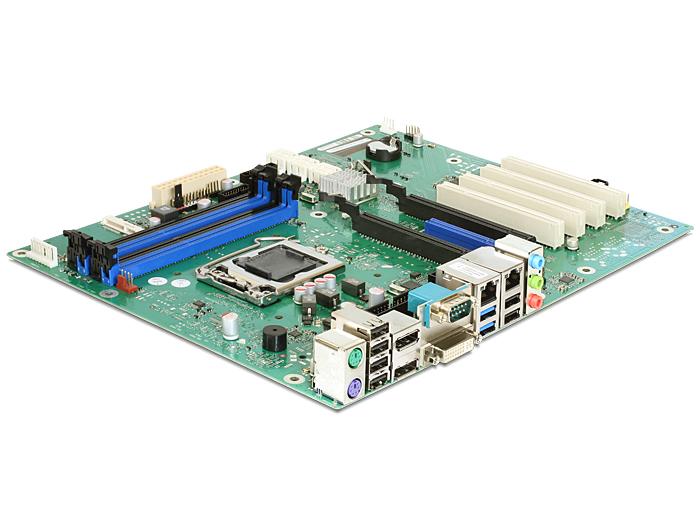

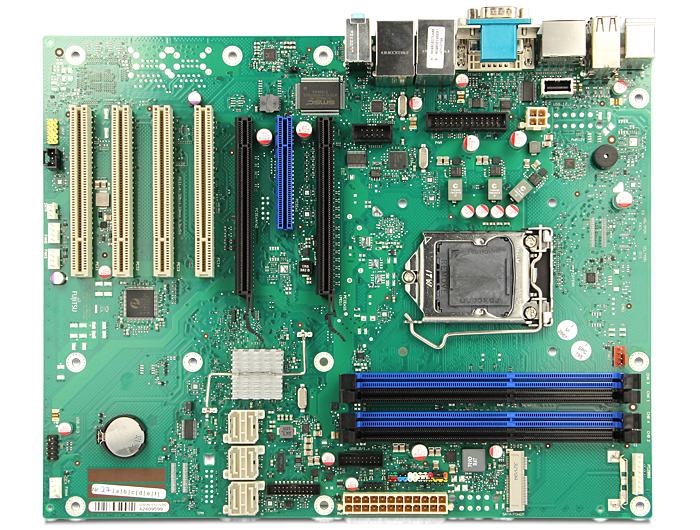

Mainboard Fujitsu D3236-S Industrial ATX

Description:


Specification:
24/7 operation - Longlife components

Processor:
Socket: LGA1150 for 4th generation Intel® Core i3, i5, i7, Haswell
Chipset: Intel® Q87 Express
Memory:
4 x Socket (1,5V) for DIMM Single Channel / Dual Channel DDR3-1333 MHz (CL9) and DDR3 1600MHz (CL11) SDRAM, unbuffered, No ECC - Max. 32GB
Graphics: Intel® HD (e.g. HD4600, depends on installed processor) DX11.1
Lan: Intel® i217LM / i210AT
Audio: Realtek ALC671, 5.1 channel HD

Expansions slots:
1 x PCIe x16 (Gen3)
1 x PCIe x16 (4 Lanes, Gen2)
1 x PCIe x8 (1 Lane, Gen2)
4 x PCI (32bit. 33MHz, Rev 2.3)

Storage:
6 x SATA 6Gb/s
1 x mSATA

Inernal I/O:
1 x Audio
1 x frontpanel Audio (9pin, HD Audio)
2 x USB 3.0
2 x USB 2.0
1 x USB Stick 2.0
1 x Serial (FIFO, 16550 compatible)
Fan: CPU, AUX1, AUX2, AUX3
1 x Intrusion (Case open)
1 x GPIO (8bit)
1 x Parallel (EPP/ECP)
1 x Power 24pin (BTX)
1 x Power 4pin (12v processor supply)

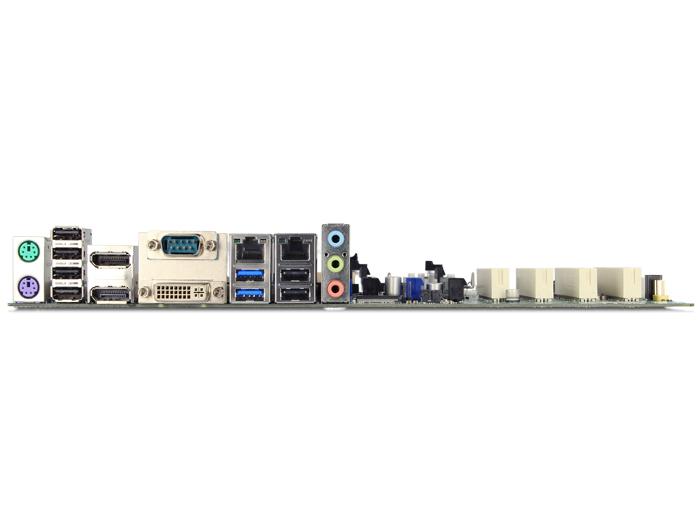

External I/O:
1 x DVI-I
2 x DisplayPort
3 x Audio
2 x GigaLan
2 x PS/2
2 x USB 3.0
6 x USB 2.0
1 x COM port (RS232, FIFO,16550 compatible)

System requirements:


Package content:
1 x Mainboard

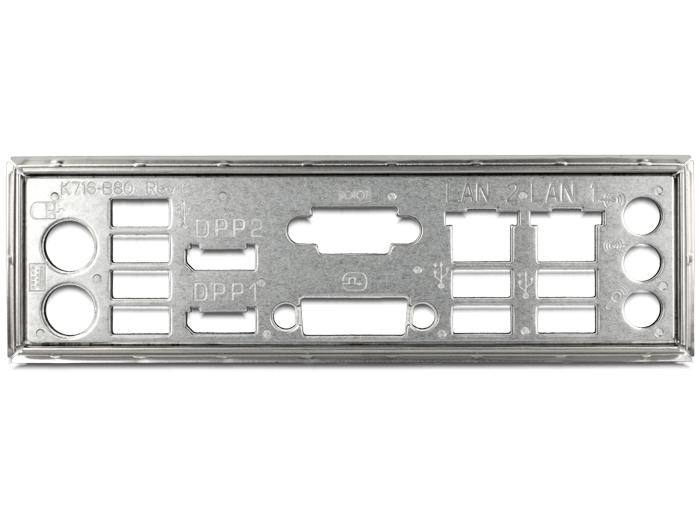

1 x I/O Shield
1 x Driver CD
