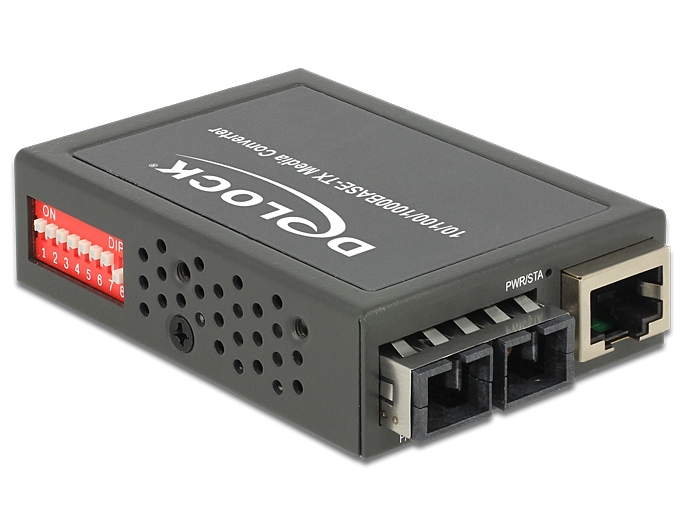

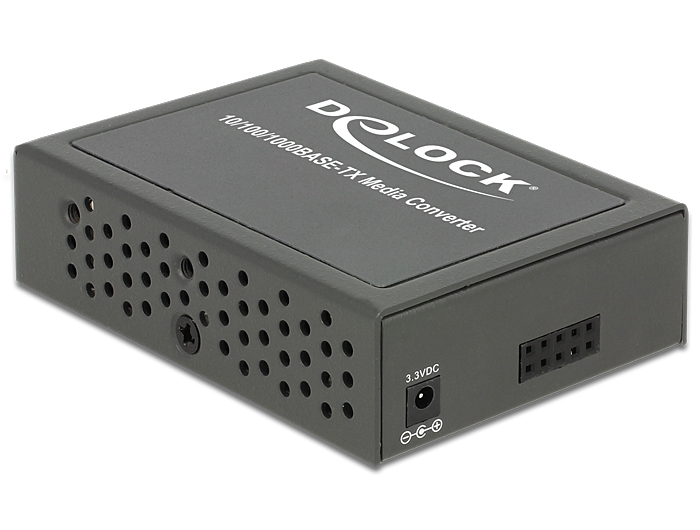

Delock Media Converter 1000Base-SX SC MM 850 nm 550 m compact

Kods 86442

Condition: Jauns

Vairāk informācijas

This Delock Gigabit Ethernet Media Converter can be used to expand your network by an optical fiber interface. The compact dimensions allow a space-saving installation.

System requirements:
• Device with one free RJ45 port

Specification:
• Connector:
SC Duplex connector for 1000Base-SX
RJ45 connector for 10/100/1000Base-T
• For Multi-Mode-Fiber, 850 nm wavelength
• Distance up to 550 m with 50/125 µm fiber
• Transmission rate up to 1 Gb/s
• 5 LEDs for status monitoring
• DIP-switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10/100/1000 Mb/s mode
• Power supply with 3.3 V included
• Operating temperature: 0° ~ 50° C
• Storage temperature: - 20° ~ 60° C
• Relative humidity: 5 ~ 90 % (not condensing)
• Robust metal housing
• Power consumption: 2.3 W
• Dimensions (LxWxH): ca. 74 x 51 x 20 mm

Package content:
• Media Converter

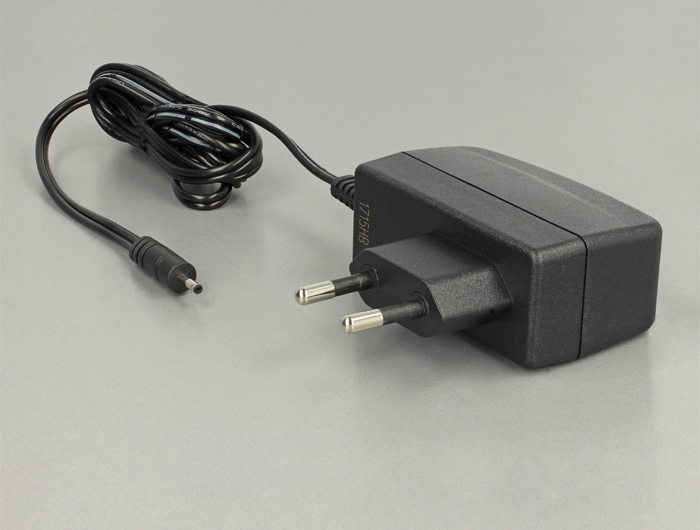

• Power supply
• User manual

Data sheet:
http://www.delock.de/produkt/86442/pdf.html?sprache=en
