Delock Media Converter 100Base-FX SC SM 1310 nm 30 km compact

Kods 86443

Condition: Jauns

Vairāk informācijas

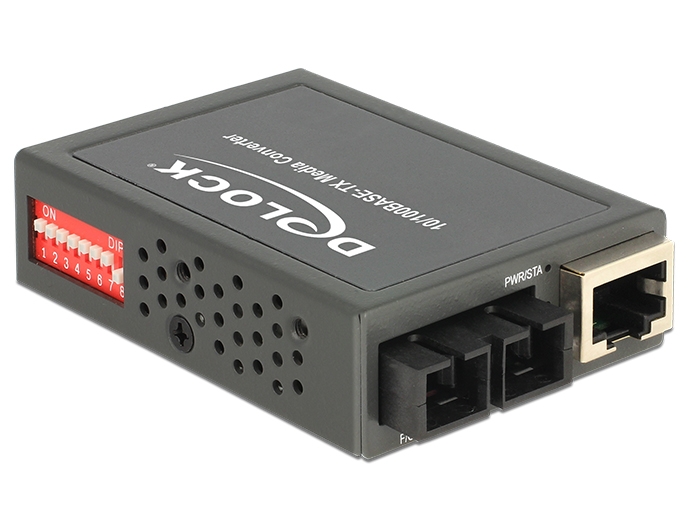

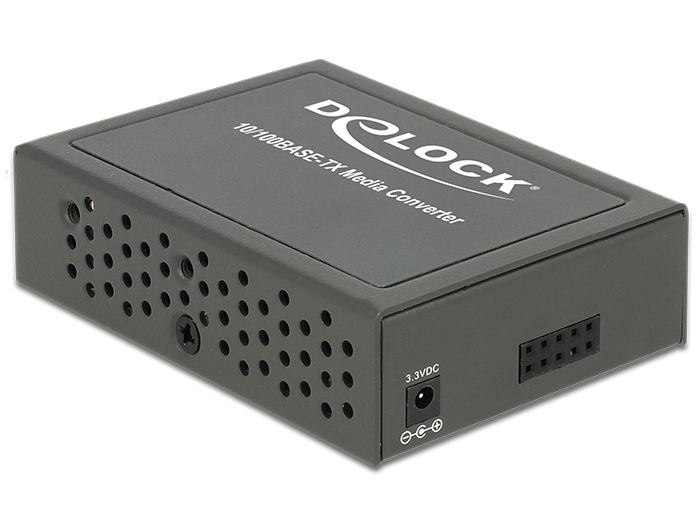

This Delock Fast Ethernet Media Converter can be used to expand a network with an optical fiber interface. The compact dimensions allow a space-saving installation.

System requirements:
• Device with one free RJ45 port

Specification:
• Connector:
SC Duplex connector for 100Base-FX
RJ45 connector for 10/100Base-T
• For Single-Mode-Fiber, 1310 nm wavelength
• Distance up to 30 km with 9/125 µm fiber
• Transmission rate up to 100 Mb/s
• 5 LEDs for status monitoring
• DIP-switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10/100 Mb/s mode

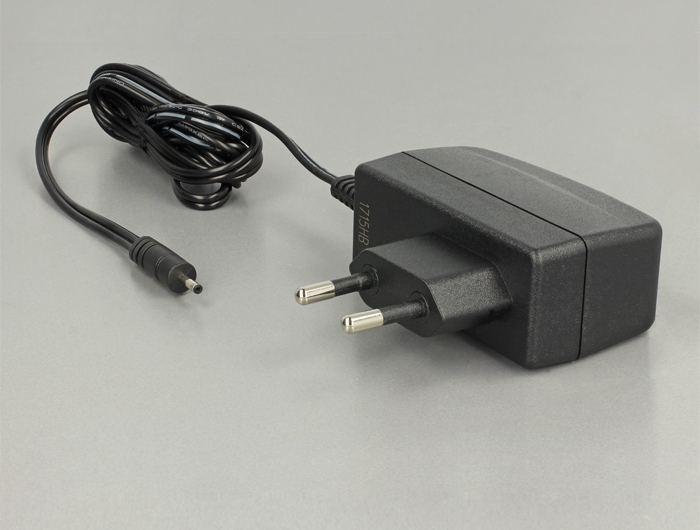

• Power supply with 3.3 V included
• Operating temperature: 0° ~ 50° C
• Storage temperature: - 20° ~ 60° C
• Relative humidity: 5 ~ 90 % (not condensing)
• Robust metal housing
• Power consumption: 1.9 W
• Dimensions (LxWxH): ca. 74 x 51 x 20 mm

Package content:
• Media Converter
• Power supply
• User manual

Data sheet:
http://www.delock.de/produkt/86443/pdf.html?sprache=en
