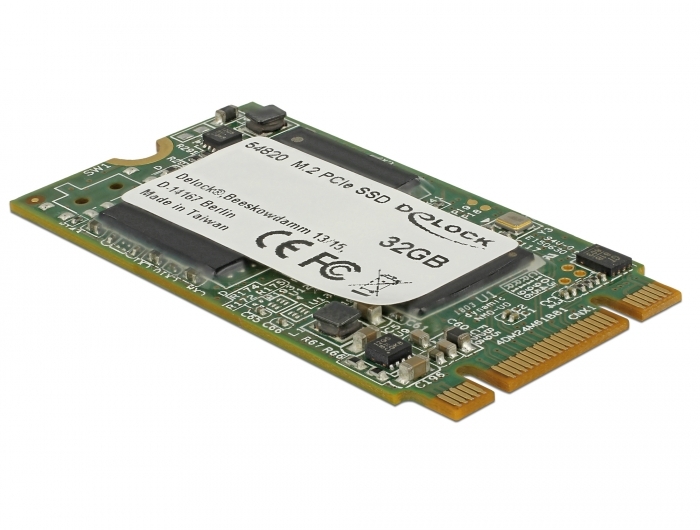

Delock M.2 PCIe SSD Toshiba MLC 32 GB (42 mm) -40 °C ~ 85 °C

Kods 54820

Condition: Jauns

Vairāk informācijas

This flash module by Delock is a memory in M.2 format for the PCIe interface. It supports the PCIe x2 revison 3.0 and convinces with an effective boot time and lower power consumption than common hard disk drives.

System requirements:
• A free M.2 port with key B + M
• M.2 slot with PCIe / NVMe interface

Specification:
• Connector: 1 x 59 pin M.2 key B+M male
• Capacity: 32 GB
• Interface: PCIe x2 Rev. 3.0
• Form factor: M.2 2242
• Chipset: Toshiba
• Flash type: MLC
• Channels max.: 4
• Maximum read speed: 450 MB/s
• Maximum write speed: 50 MB/s
• Maximum write cycles: 3000
• MTBF: 3.000.000 hours
• Power consumption: max. 2.9 W (3.3 V x 880 mA)
• ATA security: no
• Write protection: no
• Thermal sensor: yes
• Vibration: 20G @ 7 ~ 2000 Hz
• Shock: 1500G @ 0.5 ms
• Supports NVM Express (NVMe)
• Dimensions (LxWxH): ca. 42.0 x 22.0 x 4.5 mm
• Storage temperature: -55 °C ~ 95 °C
• Operating temperature: -40 °C ~ 85 °C - industry class

Package content:
• M.2 memory

Data sheet:
http://www.delock.de/produkt/54820/pdf.html?sprache=en
