Delock DisplayPort Switch 2 to 1 bidirectional 8K

Kods 18906

Condition: Jauns

Vairāk informācijas

This DisplayPort switch by Delock is a manual bidirectional switch for connecting different devices with DisplayPort port. This switch offers two different applications.

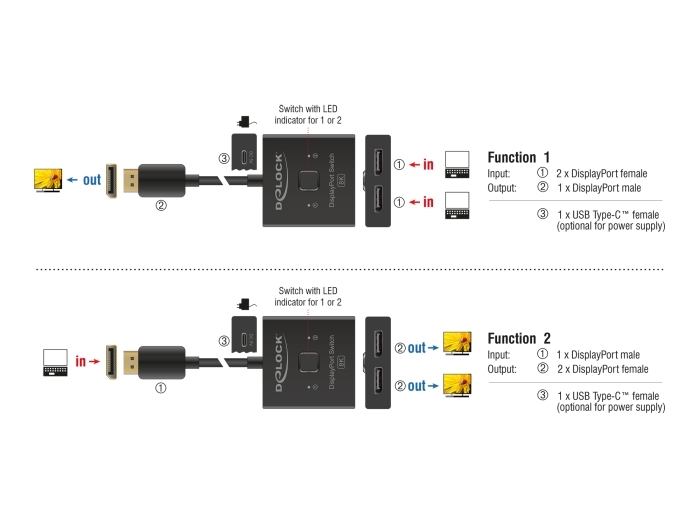

Function 1
Up to 2 devices can be connected to a monitor, TV or projector. At the push of a button, the device that is displayed on the screen can be selected.

Function 2
A DisplayPort device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected at the touch of a button. Simultaneous output to multiple screens is not possible.

Note

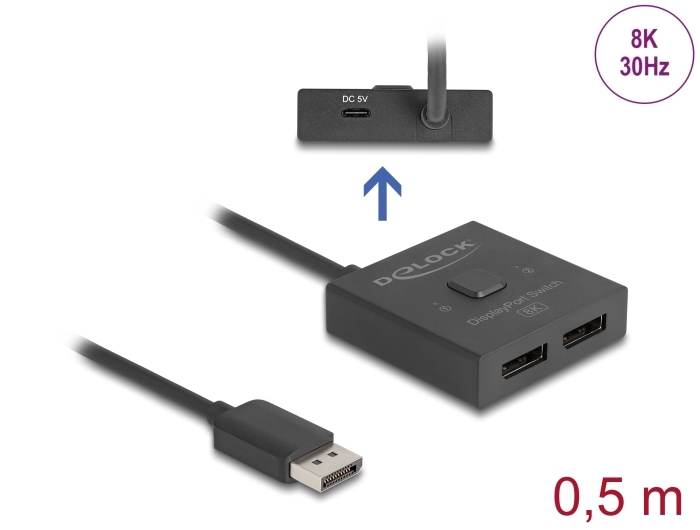

The switch can be powered via the DisplayPort connector. If a device does not support DisplayPort power, the switch can be powered via the USB-C™ connector.

System requirements:
• A free DisplayPort female port
• DisplayPort cable

Specification:
• Connectors:
  Function 1
  Input:
2 x DisplayPort female
  Output:
1 x DisplayPort male
  Function 2
  Input:
1 x DisplayPort male
  Output:
2 x DisplayPort female
• 1 x USB Type-C™ female (optional for power supply)
• 1 x button with LED indicator for 1 or 2
• DisplayPort 1.4 specification
• Supports HDR
• Resolution up to:
  7680 x 4320 @ 30 Hz
  3840 x 2160 @ 144 Hz
  (depending on the system and the connected hardware)
• Plastic housing
• Colour: black
• Dimensions (LxWxH): ca. 55 x 55 x 15 mm
• Cable length without connectors: ca. 50 cm

Package content:
• Switch bidirectional
• User manual

Data sheet:
http://www.delock.de/produkt/18906/pdf.html?sprache=en
