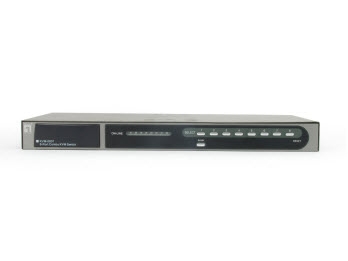

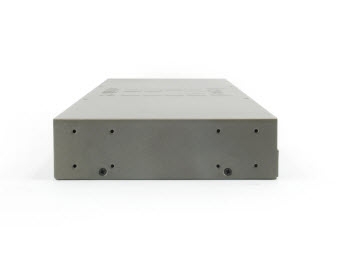

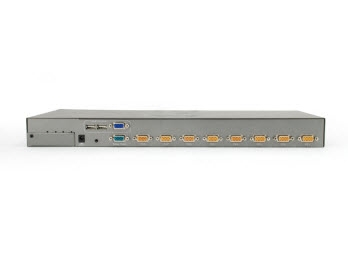

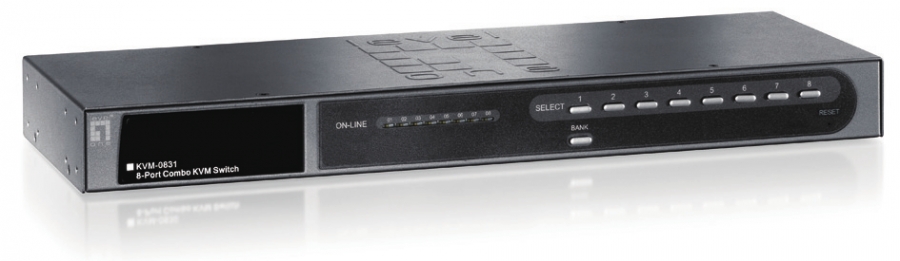

Level One LevelOne KVM Switch 48,3cm 8x PS2/USB KVM-0831 Combo

Kods KVM-0831

Condition: Jauns

Vairāk informācijas

The LevelOne KVM-0831 8-port combo KVM switch enables users to control and manage a server farm or computers connected to the KVM switch with either the local console or remote console port.Local Console The KVM-0831 Combo KVM Switch is easy to connect to a PS/2 or USB enabled keyboard and mouse with a VGA monitor through the local console port. This enables a user to control systems connected to the KVM switch directly.Remote Console In order to make use of the remote control feature, the KVM-0831 provides users with a greater variety of connectivity options through its expansion slot for optional modules.LevelOne has available an optional Cat.5 Console Module for this purpose. The ACC-1000 Cat.5 Console Module allows for the transmission of a Cat.5 signal to from the controlling unit to units or computers connected to via Cat.5 cabling to the KVM-0831. The ACC-1000 Cat.5 Module converts the Cat.5 signal into a computer signal to give users the ability to control servers and PCs from a remote location up to 300 meters away.Large System Management By making use of a Daisy chain, up to 120 computers can be connected to the KVM switch by cascading 8 KVM-0830/0831/0841/1630/1631/1641 together. This gives network administrator the ability to control larger groups of servers or systems from one console without the need to switching between different console stations.The friendly user interface makes management of the KVM switch and systems connected to it, easy manageable. It also has security measures in place to protect systems from unauthorized access.- Control servers and computers either locally via control port or remotely via optional modules through the module expansion slot - Features an expansion slot for flexible installation with optional module choices - Flexible auto-scan mode for flexible PC monitoring - Built-in daisy chain port for cascading with KVM-0830/0831 or KVM-1630/1631 up to 8 units - High video display quality up to 1920x1440 - Support Windows, NetWare, Unix, Linux, Mac OS and Sun Microsystems

Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Console ports	USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity	8
Console USB ports quantity	2
USB connector type	USB Type-A
Audio connections	N
DC-in jack	Y
Maximum resolution	1920 x 1440 pixels
Scan interval	5,99 s
Hot-Plug support	Y
Maximum operating distance	300 m
Rack mounting	Y
Product colour	Black, Grey
Rack capacity	1U
Cascadable	Y
LED indicators	Y
Push button	Y
Hot keys	Y
Mean time between failures (MTBF)	75138.181 h
Built-in display	Y
On Screen Display (OSD)	Y
Output voltage	12 V
Output current	1 A
Windows operating systems supported	Y
Linux operating systems supported	Y
Mac operating systems supported	Y
Other operating systems supported	Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 6.x
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Width	160 mm
Depth	445 mm
Height	45 mm
Package width	325 mm
Package depth	550 mm
Package height	320 mm
Package weight	9.6 kg
Manual	Y
AC adapter included	Y
Rack mount kit	Y
Rubber feet	Y
Harmonized System (HS) code	85176200
Country of origin	China
