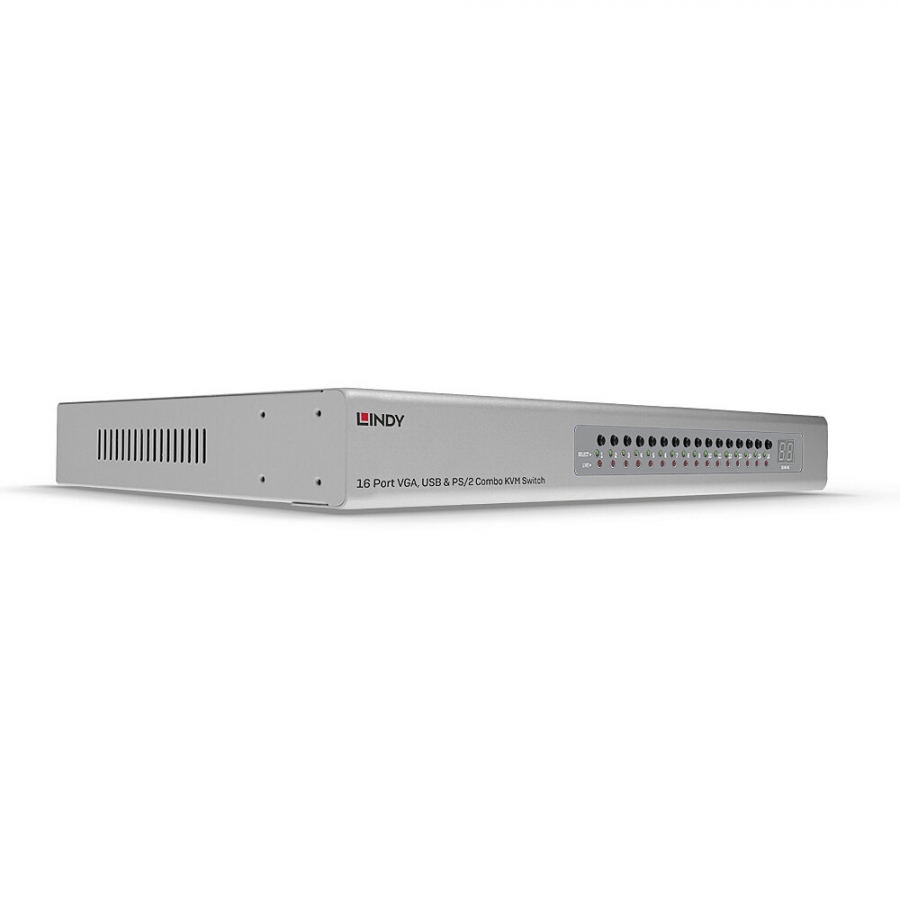

Lindy 16 Port VGA, USB & PS/2 Combo KVM Switch

Lindy

LIN39527

Jauns

Specifications:

  • AV Interface: VGA
  • Console Interfaces: USB
  • Interface Standard: VGA, USB 2.0
  • Maximum Resolution: VGA: 2048x1536@60Hz
  • HDCP Support: -
  • Supported Audio:
  • Separate Audio Ports:
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 16
  • Cascadable: Yes
  • Switching Method: OSD, port buttons, Hotkey (configurable)
  • 19" Rack Mountable: Yes (1U - Rack Mount Brackets included)



Connectors:

  • Console Interfaces: VGA (Female), 2 x USB Type A HID (Female)
  • PC/Server Interfaces: 16 x VGA (Female)
  • Other Interfaces: 2 x DaisyChain ports (1 x VGA Female + 1 x VGAMale)
  • Power: 5.5/2.1mm DC



Physical properties:

  • Dimensions (approx.) WxDxH: 440x220x44mm (17.32x8.66x1.73in)
  • Housing Material: Metal
  • Net Weight: 1.5kg (3.31lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0~90% RH (non-condensing)
  • Power Requirements: 9VDC 2A
  • Colour: Silver



Miscellaneous:

  • Packaging Type: Carton box
  • Packaging Dimensions: 570x250x110mm (21.54x10.35x4.17in)
  • Gross Weight: 3.3kg 7.(28lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package content:

  • KVM Switch
  • 2 x 19” Rack mount brackets with screws
  • Multi-Country Power Supply (UK, Euro, US, AUS)
  • Daisy Chain Cable (HD15 M/F ~0.22m)
  • Daisy Chain Terminator plug HD15
  • Quick Start Guide



Purchasing information:

  • No.: 39527
  • EAN: 4002888395274
